Additional Information
| Manufacturer AIDC | Motorola |
|---|---|
| Model Name | MT2090 |

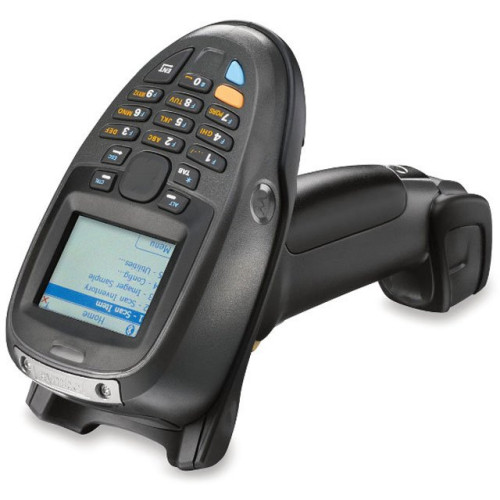

Motorola MT2090 Specs
Technical Information
- Connectivity Technology: Batch
- Image Sensor: Imager
- Electrostatic Discharge (ESD):
- +/-15 kV DC Air Discharge
- +/-8 kV DC Direct Discharge
- +/-8 kV DC Indirect Discharge
- Drop Specification: 72" To Concrete
- Barcode Symbology Supported:
- UPC/EAN
- ISBN
- Code 39
- UCC/EAN-128,ISBT-128 Concatenated
- Code 93
- Codabar/NW7
- MSI Plessey
- Interleaved 2 of 5
- ITF 2 of 5
- Discrete 2 of 5 IATA
- Chinese 2 of 5
- GS1
- DataBar
- Base 32
- TLC-39
- Aztec
- Maxicode
- DataMatrix
- QR code
- PDF417
- Composite Codes
- US Postnet
- Planet
- UK Post
- Japan Post
- Australian Post
- Netherlands KIX Code
- Royal Mail 4 State Customer
- upu fics 4 State Postal
- USPS 4CB
General Information
- Product Type: Handheld Terminal
- Brand Name: Motorola
- Manufacturer: Motorola, Inc
- Product Model: MT2090
- Product Name: MT2090 Mobile Computer
Physical Characteristics
- Height: 7.8"
- Width: 3.1"
- Depth: 5"
- Weight (Approximate): 13.50 oz
Other
- Green Compliant: Yes
- Green Compliance Certificate/Authority: RoHS
- Certifications & Standards:
- Environmental Sealing: IP54
- Electrical Safety:
- Certified to UL60950-1
- CSA C22.2 No. 60950-1
- EN60950-1
- EMI/RFI:
- FCC Part 2 (SAR)
- FCC Part 15 Subpart B Class B
- RSS210
- EU: EN 301-489-1
- 489-17
- Laser Safety:
- IEC Class 2/FDA Class II in accordance with IEC60825-1/EN60825-1
- Additional Information:
- Region: World Wide
- Tumble Specification: 250 3.2 ft./1m tumbles (500 drops)
- Imager Type: DPM
Processor & Chipset
- Processor Manufacturer: Intel
- Processor Speed: 312 MHz
- Processor Type: XScale
Display & Graphics
- Screen Mode: QVGA
- Display Color: Color
- Screen Resolution: 320 x 240
Network & Communication
- Bluetooth: Yes
- Wireless LAN: Yes
- Wireless LAN Standard: IEEE 802.11a/b/g
Memory
- Flash Memory: 64 MB
- Standard Memory: 64 MB
Battery Information
- Battery Capacity: 2400 mAh
- Battery Chemistry: Lithium Ion (Li-Ion)
Keyboard/Keypad
- Keyboard Type: Alphanumeric
- Number of Keys: 21
Warranty
- Limited Warranty: 3 Year
Software
- Operating System: Windows CE 5.0
