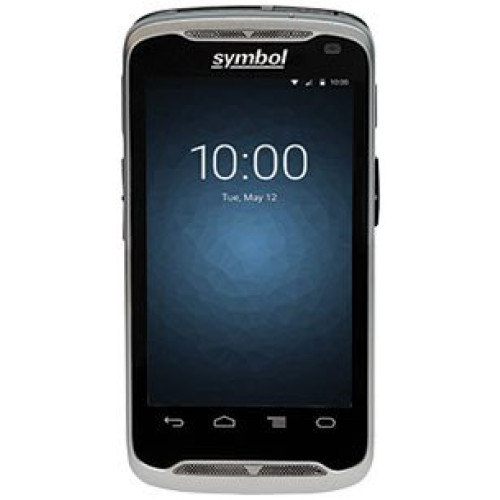

Motorola TC55AH-J011ES Mobile Computer

Motorola TC55AH-J011ES Mobile Computer
Part #: TC55AH-J011ES | SKU: MOT235518

The TC55 is a pocket-sized all touch computer that has it all. Smartphone ergonomics and good looks. Business durability and all the business functionality your workers need to work smarter.

Motorola TC55AH-J011ES Mobile Computer

Part Details: Symbol TC55, 4G HSDPA+, Wi-Fi(802.11a/b/g/n), NO SCANNER, Android JellyBean, 8MP Camera, NFC, 1x Battery. Includes USB cable and 2 Year Service Warranty (Not Comprehensive). Charging Cradles and Power Supply Sold Separately. Single charging cup (Part# CBL-TC55-CHG1-01) needs power supply (Part# PWRS-124306-01R). 5- slot- CRDUNIV-55-5000R REQUIRES POWER (Part# PWRS-14000-148C) AND AC LINE CORD (Part# 23844-00-00R).
Need a different version of the Motorola TC55 Mobile Computer? View all 16 configurations

Additional Information

Manufacturer Motorola
Model Name TC55
Operating System Android 4.1
Motorola TC55 Specs Motorola TC55 Specs (pdf)

General Information

  • Product Type: Handheld Terminal
  • Brand Name: Motorola
  • Manufacturer: Motorola, Inc
  • Product Model: TC55
  • Product Name: TC55 Touch Computer

Technical Information

  • Connectivity Technology: Wireless
  • Drop Specification:
    • 48" To Plywood
    • 48" To Concrete @ 14°F (-10°C) to 122°F (50°C)

Physical Characteristics

  • Width: 2.7"
  • Depth: 0.6"
  • Length: 5.4"
  • Weight (Approximate): 7.80 oz

Interfaces/Ports

  • USB: Yes

Other

  • Green Compliant: Yes
  • Green Compliance Certificate/Authority:
    • RoHS
    • WEEE
  • Package Contents:
    • TC55 Touch Computer
    • Battery
    • TC55 Touch Computer
    • Battery
  • Certifications & Standards:
    • MIL-STD810G
    • IP67
    • IEC
    • LED Safety:
    • EN 62471
    • WLAN/Bluetooth/NFC:
    • FCC Part 15.247
    • FCC Part 15.407
    • FCC Part 15.225
    • RSS-210
    • EN 300 328
    • EN 301 893
    • EN 302 291
    • AS/NZS 4268
    • RF exposure:
    • FCC Part 2
    • FCC OET Bulletin 65c
    • RSS 102 Issue 4
    • EN 50360
    • EN 50566
    • EN 62479
    • EN 62311
    • Radiocommunications Standard 2003
    • Electrical safety:
    • UL 60950-1
    • EN 60950-1
    • IEC 60950-1
    • WWAN:
    • FCC Part 22
    • FCC Part 24
    • RSS-132
    • RSS-133
    • RSS-139
    • EN301 511
    • EN301 908
    • AS/ACIF S042.1, 3 & 4
    • Environmental:
    • EN 50581
    • EMI/RFI:
    • FCC Part 15
    • FCC Part Class B
    • ICES-003 Class B
    • EN55022 Class B
    • EN 55024
    • EN 301 489-1
    • EN 301 489-3
    • EN 301 489-7
    • EN 301 489-17
    • EN 301 489-24
    • EN 60601-1-2
    • EN 50121-3-2
    • EN 50121-4
    • AS/NZS CISPR 22

Network & Communication

  • Bluetooth: Yes
  • Wireless LAN: Yes
  • Network Band: Tri Band
  • Wireless LAN Standard: IEEE 802.11a/b/g/n
  • Cellular Data Connectivity Technology:
    • HSPA+
    • LTE
  • Near Field Communication: Yes
  • Wireless Security:
    • WEP (40 or 104 bit)
    • WPA/WPA2 Personal
    • WPA/WPA2 Enterprise
    • EAP-TTLS PAP
    • EAP-TTLS MSCHAP
    • EAP-TTLS MSCHAPv2
    • EAP-TLS
    • PEAPv0-MSCHAPv2
    • PEAPv1-EAP-GTC
    • TKIP
    • AES

Memory

  • Flash Memory: 8 GB
  • Standard Memory: 1 GB
  • Maximum Memory Card Size Supported: 32 GB
  • Memory Card Slot: Yes
  • Memory Card Supported:
    • microSD Card
    • microSD High Capacity (microSDHC)

Display & Graphics

  • Display Screen Type: LCD
  • Backlight Technology: LED
  • Screen Mode: WVGA
  • Screen Size: 4.3"

Battery Information

  • Battery Capacity: 2940 mAh
  • Battery Included: Yes
  • Battery Chemistry: Lithium Ion (Li-Ion)

Touchscreen Information

  • Touchscreen: Yes
  • Touchscreen Type: Capacitive

Camera

  • Camera: Yes
  • Effective Camera Resolution: 8 Megapixel

Processor & Chipset

  • Processor Speed: 1.50 GHz

Warranty

  • Limited Warranty: 1 Year

Software

  • Operating System: Android 4.1.2 Jelly Bean
Extended Details

Recommended Accessories for Model: Motorola TC55AH-J011ES Mobile Computer

  • Zebra SAC-TC55-2BTYC1 Docks and Cradles
    Part #: SAC-TC55-2BTYC1 | SKU: ZEB291052

    Dual battery charger - can charge 2x RFD8500/TC55 batteries via 3-slot cradle (P/N CRDUNIV-RFD8500-1R ), the TC55 5-slot cradle (P/N CRDUNIV-55-5000R) or Rugged USB Charger (P/N CBL-TC55-CHG1-01).
    $262.35
    See Price in Cart (Why?)
    In Stock

  • Zebra PWR-WUA5V6W0WW Power Device
    Part #: PWR-WUA5V6W0WW | SKU: ZEB499081

    ZEBRA EVM, LEVEL VI AC/DC POWER SUPPLY (WALL ADAPTER, WITH AU, US, EU, AND UK ADAPTER CLIPS). AC INPUT: 100-240V, 0.2A. DC OUTPUT: 5.2V, 1.2A, 6W, REQUIRES USB TO MICRO-USB OR USB TO DEVICE SPECIFIC CABLE CUP AND BR ADAPTER CLIP.
    $28.01
    See Price in Cart (Why?)
    In Stock

  • Zebra CBL-TC55-CHG1-01 Cables, Connectors, and Adapters
    Part #: CBL-TC55-CHG1-01 | SKU: ZEB236122

    Cable, Rugged Charging, Requires Power Supply (Part # PWRS-124306-01R), Compatible with TC55 and RFD8500.
    $46.64
    See Price in Cart (Why?)

  • Motorola PWRS-124306-01R Power Device
    Part #: PWRS-124306-01R | SKU: MOT90641

    Power supply Kit - 100-240 VAC - Includes international plug set and USB connector - USB cable sold separately - Compatible with ES400, MC40, MC45, and TC55

  • Zebra BTRY-TC55-29MA1-01 Battery
    Part #: BTRY-TC55-29MA1-01 | SKU: ZEB235506

    TC55 1X STD BATTERY 2960 MAH
View All Options

Recommended Warranties for Model: Motorola TC55AH-J011ES Mobile Computer

  • Zebra Z1BE-TC55XX-1000 Service Contract
    Part #: Z1BE-TC55XX-1000 | SKU: ZEB463677

    Zebra OneCare for Enterprise Essential - 1 Year Extended Service - Service - 9 x 5 x 3 Business Day - Carry-in - Maintenance - Parts & Labor - Physical, Electronic
    MSRP: $128.29 Price: $97.60
    In Stock

  • Zebra Z1BS-TC55XX-1C03 Service Contract
    Part #: Z1BS-TC55XX-1C03 | SKU: ZEB463839

    Zebra OneCare for Enterprise Select with Comprehensive coverage - 1 Year Renewal - Service - Service Depot - Exchange - Labor - Physical, Electronic Service
    MSRP: $160.07 Price: $121.78
    In Stock
View All Options
