| Interface Options | Bluetooth, Wi-Fi, HSPA+ |
|---|---|
| Manufacturer | Motorola |
| Model Name | TC55 |
| Operating System | Android 4.3 |
| RAM Memory | 1 GB |
| Scanner Capability | 1D |
| Scanner Type | Imager |
| Style | Phone-size |

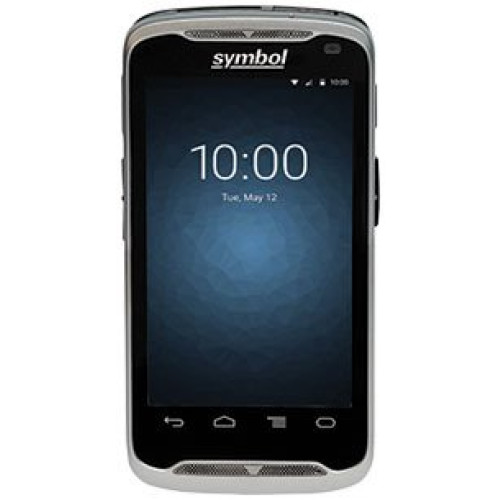

Motorola TC55 Specs
Technical Information
- Connectivity Technology: Wireless
- Image Sensor: Imager
- Drop Specification:
- 48" To Plywood
- 48" To Concrete @ 14°F (-10°C) to 122°F (50°C)
- Barcode Symbology Supported: 1D
General Information
- Product Type: Handheld Terminal
- Brand Name: Motorola
- Manufacturer: Motorola, Inc
- Product Model: TC55
- Product Name: TC55 Touch Computer
Physical Characteristics
- Width: 2.7"
- Depth: 0.6"
- Length: 5.4"
Interfaces/Ports
- USB: Yes
Other
- Green Compliant: Yes
- Green Compliance Certificate/Authority:
- RoHS
- WEEE
- Certifications & Standards:
- MIL-STD810G
- IP67
- IEC
- LED Safety:
- EN 62471
- WLAN/Bluetooth/NFC:
- FCC Part 15.247
- FCC Part 15.407
- FCC Part 15.225
- RSS-210
- EN 300 328
- EN 301 893
- EN 302 291
- AS/NZS 4268
- RF exposure:
- FCC Part 2
- FCC OET Bulletin 65c
- RSS 102 Issue 4
- EN 50360
- EN 50566
- EN 62479
- EN 62311
- Radiocommunications Standard 2003
- Electrical safety:
- UL 60950-1
- EN 60950-1
- IEC 60950-1
- WWAN:
- FCC Part 22
- FCC Part 24
- RSS-132
- RSS-133
- RSS-139
- EN301 511
- EN301 908
- AS/ACIF S042.1, 3 & 4
- Environmental:
- EN 50581
- EMI/RFI:
- FCC Part 15
- FCC Part Class B
- ICES-003 Class B
- EN55022 Class B
- EN 55024
- EN 301 489-1
- EN 301 489-3
- EN 301 489-7
- EN 301 489-17
- EN 301 489-24
- EN 60601-1-2
- EN 50121-3-2
- EN 50121-4
- AS/NZS CISPR 22
Network & Communication
- Bluetooth: Yes
- Wireless LAN: Yes
- Network Band: Tri Band
- Wireless LAN Standard: IEEE 802.11a/b/g/n
- Cellular Data Connectivity Technology:
- HSPA+
- LTE
- Near Field Communication: Yes
- Wireless Security:
- WEP (40 or 104 bit)
- WPA/WPA2 Personal
- WPA/WPA2 Enterprise
- EAP-TTLS PAP
- EAP-TTLS MSCHAP
- EAP-TTLS MSCHAPv2
- EAP-TLS
- PEAPv0-MSCHAPv2
- PEAPv1-EAP-GTC
- TKIP
- AES
Memory
- Flash Memory: 8 GB
- Standard Memory: 1 GB
- Maximum Memory Card Size Supported: 32 GB
- Memory Card Slot: Yes
- Memory Card Supported:
- microSD Card
- microSD High Capacity (microSDHC)
Display & Graphics
- Display Screen Type: LCD
- Backlight Technology: LED
- Screen Mode: WVGA
- Screen Size: 4.3"
Battery Information
- Battery Capacity: 4410 mAh
- Battery Chemistry: Lithium Ion (Li-Ion)
Touchscreen Information
- Touchscreen: Yes
- Touchscreen Type: Capacitive
Processor & Chipset
- Processor Speed: 1.50 GHz
Warranty
- Limited Warranty: 1 Year
Software
- Operating System: Android 4.1.2 Jelly Bean
Recommended Accessories for Model: Motorola TC55AH-JC11EE Mobile Computer
-
Zebra SAC-TC55-2BTYC1 Docks and Cradles
Part #: SAC-TC55-2BTYC1 | SKU: ZEB291052Dual battery charger - can charge 2x RFD8500/TC55 batteries via 3-slot cradle (P/N CRDUNIV-RFD8500-1R ), the TC55 5-slot cradle (P/N CRDUNIV-55-5000R) or Rugged USB Charger (P/N CBL-TC55-CHG1-01).$262.35 -
Zebra PWR-WUA5V6W0WW Power Device
Part #: PWR-WUA5V6W0WW | SKU: ZEB499081ZEBRA EVM, LEVEL VI AC/DC POWER SUPPLY (WALL ADAPTER, WITH AU, US, EU, AND UK ADAPTER CLIPS). AC INPUT: 100-240V, 0.2A. DC OUTPUT: 5.2V, 1.2A, 6W, REQUIRES USB TO MICRO-USB OR USB TO DEVICE SPECIFIC CABLE CUP AND BR ADAPTER CLIP.$28.01 -
Zebra CBL-TC55-CHG1-01 Cables, Connectors, and Adapters
Part #: CBL-TC55-CHG1-01 | SKU: ZEB236122Cable, Rugged Charging, Requires Power Supply (Part # PWRS-124306-01R), Compatible with TC55 and RFD8500.$46.64 -
Motorola PWRS-124306-01R Power Device
Part #: PWRS-124306-01R | SKU: MOT90641Power supply Kit - 100-240 VAC - Includes international plug set and USB connector - USB cable sold separately - Compatible with ES400, MC40, MC45, and TC55 -
Zebra BTRY-TC55-29MA1-01 Battery
Part #: BTRY-TC55-29MA1-01 | SKU: ZEB235506TC55 1X STD BATTERY 2960 MAH
Recommended Warranties for Model: Motorola TC55AH-JC11EE Mobile Computer
-
Zebra Z1BE-TC55XX-1000 Service Contract
Part #: Z1BE-TC55XX-1000 | SKU: ZEB463677Zebra OneCare for Enterprise Essential - 1 Year Extended Service - Service - 9 x 5 x 3 Business Day - Carry-in - Maintenance - Parts & Labor - Physical, ElectronicMSRP: $128.29 Price: $97.60 -
Zebra Z1BS-TC55XX-1C03 Service Contract
Part #: Z1BS-TC55XX-1C03 | SKU: ZEB463839Zebra OneCare for Enterprise Select with Comprehensive coverage - 1 Year Renewal - Service - Service Depot - Exchange - Labor - Physical, Electronic ServiceMSRP: $160.07 Price: $121.78
