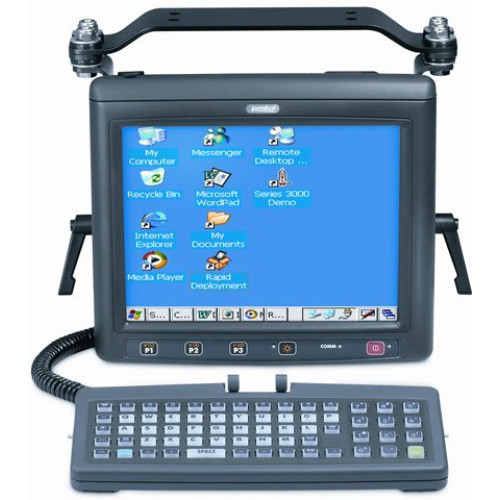

Motorola VC5090-MA0QM0GH6WR Data Terminal Motorola VC5090-MA0QM0GH6WR Data Terminal

Motorola VC5090-MA0QM0GH6WR Data Terminal
Part #: VC5090-MA0QM0GH6WR | SKU: MOT58068

The VC5090 Vehicle/Fixed-Mount Mobile Computer from Symbol Technologies combines rugged construction and high performance wireless networking to enable real-time data access and collection in the harshest environments from the loading dock and freezer to the warehouse floor. Whether your workers are on a forklift, at a fixed station or moving through the warehouse aisles, the VC5090 provides the tools needed to increase productivity and reduce errors in shipping and receiving, as well as put-away and picking applications. The results are improved decision making, streamlining of warehouse operations and a positive impact on your bottom line.

Motorola VC5090-MA0QM0GH6WR Data Terminal

Part Details: Zebra VC5090 Vehicle Mount Computer - Intel 624 MHz - 128 MB RAM - 192 MB Flash Memory - 12.1" Color - SVGA - Wi-Fi, Bluetooth - Internal Antenna - IEEE 802.11a/b/g - Serial - USB - Windows
Need a different version of the Touch Dynamic Quest VIII Rugged Tablet? View all 121 configurations

Additional Information

Display Size 800x600
Form Factor Vehicle/Forklift
Interface Options Wi-Fi.
Keyboard Touch-based
Manufacturer AIDC Motorola
Model Name Quest VIII Rugged
Operating System Windows CE 5.0 Pro
RAM Memory 128 MB
Motorola Quest VIII Rugged Specs Motorola Quest VIII Rugged Specs (pdf)

Technical Information

  • Operating System: Windows CE Professional 5.0
  • Processor: Intel PXA270 XScale 624MHz
  • Vibration: MIL-STD-810F
  • Internal Heater: Yes
  • Display: 12.1" Color SVGA - Resistive Touch Screen

General Information

  • Manufacturer:
  • Product Name: VC5090 Vehicle Mount Computer

Physical Characteristics

  • Dimensions: 12.2" (310mm) x 10.6" (269mm) x 4.5" (114mm)
  • Weight: 14.5 lb (7 kg)

Interfaces/Ports

  • I/O Ports:
    • RS-232
    • USB

Network

  • Data Collection Type: Wireless
  • Network Connectivity:
    • WLAN 802.11a/b/g
    • WPAN Bluetooth
  • Maximum RF Data Rate Supported: 54 Mbps
  • Antenna Connectors: Internal
  • Wireless Security:
    • WPA Enterprise
    • Wi-Fi Certified
    • TKIP
    • WEP 40 bit
    • WEP 128 bit
    • CCX
  • Frequency Band/Bandwidth: 2.4GHz to 5GHz

Environmental Conditions

  • Environmental Sealing: IP66
  • Temperature:
    • -30°C (-22°F) to 50°C (122°F) Operating
    • -40°C (-40°F) to 70°C (158°F) Storage
  • Humidity: 5 to 95% Operating Non-condensing
  • Electrostatic Discharge (ESD):
    • 20kV Air Discharge
    • 8kV Contact Discharge

Other

  • Additional Information:
    • Expansion Slot: SD Memory Card Communication Options: Voice(VoIP, voice picking) Audio
    • Expansion Slot: SD Memory CardCommunication Options:Voice(VoIP, voice picking)Audio
  • Package Contents:
    • VC5090 Vehicle Mount Computer 9' Wiring Harness Fuses/Holders Mounting Bracket Misc Mounting Bolts Wavelink Emulation Software Screen Protector Desiccant Packs
    • VC5090 Vehicle Mount Computer9' Wiring HarnessFuses/HoldersMounting BracketMisc Mounting BoltsWavelink Emulation SoftwareScreen ProtectorDesiccant Packs

Agency Approvals

  • Agency Approvals:
    • RoHS Compliance EMC: FCC Part 15 Class B ICES-003 Class B EN 55022 EN 301 489-1 EN 301 489-17 RF: FCC Part 15.247 FCC Part 15.205 FCC Part 15.209 FCC Part 15.203 FCC Part 15.407 FCC Part 15.207 EN 300 328 EN 301 893 RSS-210 ARIB STD-66 ARIB STD-33 T70 T71 Safety: UL 60950-1 CSA C22.2 No. 60950-1 EN 60950-1 IEC 60950-1
    • RoHS ComplianceEMC:FCC Part 15 Class BICES-003 Class BEN 55022EN 301 489-1EN 301 489-17RF:FCC Part 15.247FCC Part 15.205FCC Part 15.209FCC Part 15.203FCC Part 15.407FCC Part 15.207EN 300 328EN 301 893RSS-210ARIB STD-66ARIB STD-33T70T71Safety:UL 60950-1CSA C22.2 No. 60950-1EN 60950-1IEC 60950-1

Memory

  • RAM Memory: 128MB
  • Flash Memory: 192MB

Scanner Options

  • Scanner Option: External

Warranty

  • Manufacturer Warranty: 1 Year(s) Limited
Extended Details

Recommended Accessories for Model: Motorola VC5090-MA0QM0GH6WR Data Terminal
