Motorola VC70N0-60VDC-U-R Data Terminal
Part #: VC70N0-60VDC-U-R | SKU: MOT17978

The Motorola VC70N0 Fixed Mount Vehicle Terminal is the right sized mobile computer that is needed to improve productivity and task accuracy in any conditions. The VC70N0 supports applications, covering receiving, put-away, replenishment, picking, packing, and shipping. A wide range of options available to maximize efficiency with corded or cordless barcode scanners, keyboards, and a variety of voice capabilities.

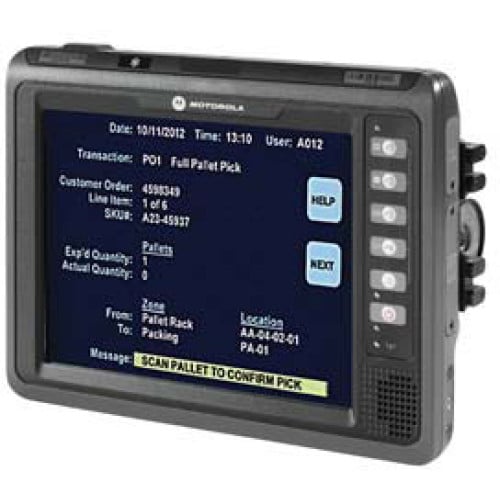

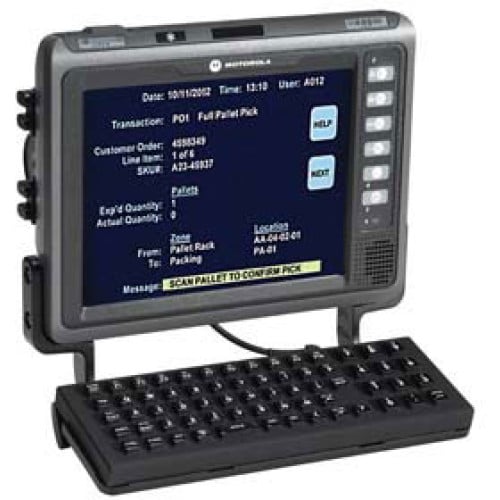

Motorola VC70N0-60VDC-U-R Data Terminal

Part Details: Fixed Mount Mobile Computer, 10.4” Touchscreen Display, Wifi (802.11A/B/G/N), Windows Embedded Compact 7 Pro, 512Mb/2Gb, 1024X768, Led Backlit, U Mount, Interface Cables And Charging Cradle Sold Separately. Power Supply Sold Separately. External Dc Power Supply (Part# Pwrs-9-60Vdc-01R) Requires (Part# 25-159551-01) Fused Dc Power Cable To Vehicle Battery.

Need a different version of the Motorola VC70N0 Data Terminal? View all 5 configurations

Additional Information

Display Size	10.4"
Form Factor	Fixed, Vehicle/Forklift
Interface Options	Wi-Fi.
Internal Storage	2GB Flash
Keyboard	Touch-based
Manufacturer AIDC	Motorola
Model Name	VC70N0
Operating System	Windows CE 7.0
RAM Memory	512 MB

Motorola VC70N0 Specs (pdf)

General Information

Product Type: Vehicle Mount Terminal
Brand Name: Motorola
Manufacturer: Motorola, Inc
Product Model: VC70N0
Product Name: VC70N0 Ultra-Rugged Vehicle-Mounted Mobile Computer

Technical Information

Connectivity Technology: Wireless

Physical Characteristics

Width: 8.9"
Depth: 2.4"
Length: 11.5"

Interfaces/Ports

Interfaces/Ports:
- 2 x RS-232 Serial
- 3 x USB
- 1 x CANbus
- 1 x RJ-45 Network

Other

Green Compliant: Yes
Green Compliance Certificate/Authority:
- RoHS
- WEEE
Certifications & Standards:
- IP 66
- MIL -STD 810G; Method 514.6
- MIL -STD 810G; Method 516.6
- MIL -STD 810G
- IEC 68-2-5
- Electrical Safety:
- UL /cUL /IE C/EN 60950-1 Indoor Use
- UL /cUL /IE C/EN 60950-22 Outdoor Use
- EMI /RFI:
- FCC Part 15, Class B
- ICES 003 Class B
- EN55022
- EN 301 489-1
- EN 301 489-17
- WLAN:
- FCC Part 15.247, 15.407
- RSS-210
- EN 300 328
- EN 301 893
- AS/NZS 4268
- Flammability:
- IEC UL 94-VO

Display & Graphics

Touchscreen: Yes
Display Screen Type: LCD
Screen Size: 10.4"
Graphics Modes: XGA
Display Resolution: 1024 x 768

Environmental Conditions

Electrostatic Discharge (ESD):
- +/-15 kV DC Air Discharge
- +/-8 kV DC Direct Discharge

Processor & Chipset

Processor Manufacturer: Texas Instruments
Processor Speed: 1 GHz

Memory

Flash Memory: 2 GB
Standard Memory: 512 MB

Network & Communication

Wireless LAN Standard: IEEE 802.11a/b/g/n
Wireless Technology: Wi-Fi

Warranty

Limited Warranty: 1 Year

Software

Operating System: Windows Embedded Pro 7

Extended Details
