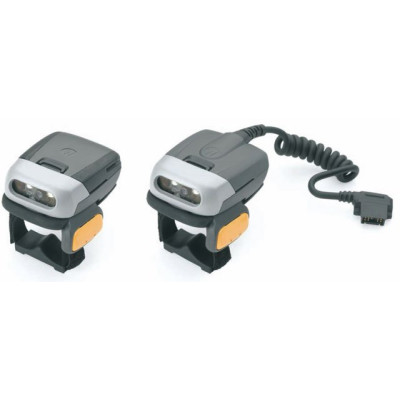

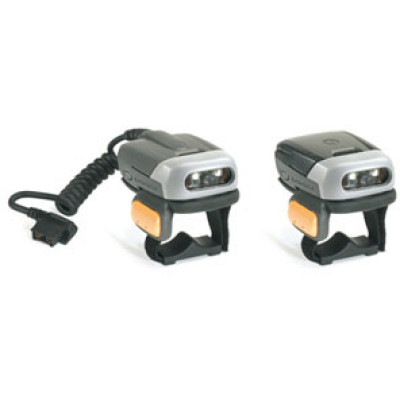

Motorola RS507 Ring Barcode Scanner

Motorola RS507 Ring Barcode Scanner

Motorola RS507 Ring Barcode Scanner

Whether your workers are handling and sorting packages, picking or loading shipments in the warehouse or scanning bar codes to meet government regulations for tracking and tracing of product, the Motorola RS507 Ring Imager Hands-Free Imager delivers the superior blend of technology, form and function your workers need to achieve a new level of scanning efficiency in your operations.
Discontinued - Need Assistance
See all options
Motorola RS507 Ring Specs Motorola RS507 Ring Specs (pdf)
2D IMAGER ENGINE

Ambient light immunity Indoor: 450 ft. candles (4,845 lux)
Outdoor: 9,000 ft. candles (96,900 lux)
PERFORMANCE CHARACTERISTICS

Pitch1 ? 60? from normal
Roll2 +/- 35 degrees from vertical
Yaw3 ? 50? from normal
PHYSICAL CHARACTERISTICS

Dimensions (HxWxD) Triggerless, standard battery:
1.16? (2.9 cm) H x 2.1? (5.3 cm) W x 2.92? (7.4 cm) L

Triggerless, extended battery:
1.42? (3.6 cm) H x 22.1? (5.3 cm) W x 2.92? (7.4 cm) L

Trigger, standard battery:
1.16? (2.9 cm) H x 2.1? (5.3 cm) W x 2.92? (7.4 cm) L

Trigger, corded:
1.3? (3.3 cm) H x 2.1? (5.3 cm) W x 22.92? (7.4 cm) (w/o cord) L
Weight Triggerless, standard battery:
4.3 oz./121.4 g

Triggerless, extended battery:
5.2 oz./146.4 g

Trigger, standard battery:
4.8 oz./134.8 g

Trigger, corded: 5.0 oz./140.8 g
USER ENVIRONMENT

Drop specification 6 ft./1.8 m multiple drops to concrete across operating temperature range
Environmental sealing IP54
Operating temperature -4? to 131? F/-20? to 55? C
Storage temperature -40? to 158? F/-40? to 70? C excl. Battery

-40? to 140? F/-40? to 60? C incl. Battery
1 Pitch Controlled by dropping or raising the wrist
2 Controlled by rotating the wrist clockwise or counterclockwise
3 Controlled by rotating the wrist from left to right or vice versa

Extended Details
Refine Your Options
Shop By
Shopping Options
Interface Options
  1. Bluetooth (2)
  2. WT4090 Interface Cable (1)
Included Features
  1. Embedded Scale (1)
Form Factor
  1. Wearable (6)
Scanner Capability
  1. 2D (4)
  2. 1D (1)
Connectivity
  1. Cordless (3)
  2. Corded (1)
Scanner Type
  1. Imager (6)
  2. CCD (2)
Included Cables
  1. WT4090 Interface Cable (1)
Color
  1. Dark Gray (2)
  2. Beige (1)
  3. Gray (1)
Embedded Scale
  1. Embedded Scale (1)
  1. Motorola RS507-IM20000STWR Barcode Scanner

    Motorola RS507-IM20000STWR Barcode Scanner
    Part #: RS507-IM20000STWR | SKU: MOT70703

    Hands-Free Cordless - 2D Imager - Bluetooth Interface - 2-finger mounted - Manual trigger - Standard battery
  2. Motorola RS507-IM20000ENWR Barcode Scanner

    Motorola RS507-IM20000ENWR Barcode Scanner
    Part #: RS507-IM20000ENWR | SKU: MOT70705

    Ring Scanner - Hands-Free - Cordless - 2D Imager Scanner - Bluetooth - No Trigger - Extended Battery
  3. Motorola RS507-IM20000CTWR Barcode Scanner

    Motorola RS507-IM20000CTWR Barcode Scanner
    Part #: RS507-IM20000CTWR | SKU: MOT70702

    Hands-Free - 2D Imager - 2-finger mounted - Manual trigger - WT4090 cable - Requires extended battery on WT4090
  4. Motorola RS507-IM200000TWR Barcode Scanner

    Motorola RS507-IM200000TWR Barcode Scanner
    Part #: RS507-IM200000TWR | SKU: MOT103098

    HANDS FREE RING SCANNER - 1D/2D IMAGER - Bluetooth - TRIGGER - CORD AND BATTERY SOLD SEPARATELY - (REQUIRES CORD OR BATTERY)
  5. Symbol RS507-IM20000ETWR Barcode Scanner

    Symbol RS507-IM20000ETWR Barcode Scanner
    Part #: RS507-IM20000ETWR | SKU: SYM309039

    RS507 Ring Imager, Hands-Free 2D Imager, 2-Finger mounted barcode imager with manual trigger, Bluetooth. Includes Extended Battery.
  6. Motorola RS507-DL20000STWR Barcode Scanner

    Motorola RS507-DL20000STWR Barcode Scanner
    Part #: RS507-DL20000STWR | SKU: MOT235511

    RS507 Ring Imager, Hands-Free 2D Imager DL focus, 2-finger mounted barcode imager with manual trigger and standard capacity battery for cordless Bluetooth interface to supported mobile computer.
  7. Symbol RS507-DL200000TWR Barcode Scanner

    Symbol RS507-DL200000TWR Barcode Scanner
    Part #: RS507-DL200000TWR | SKU: SYM366134

    RS507, Hands-Free Imager (Trigger, No Battery, DL)
