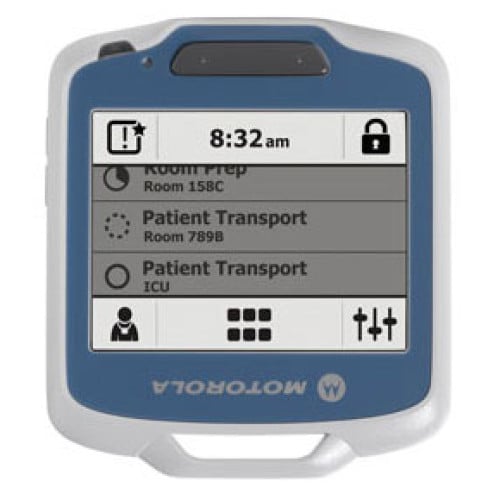

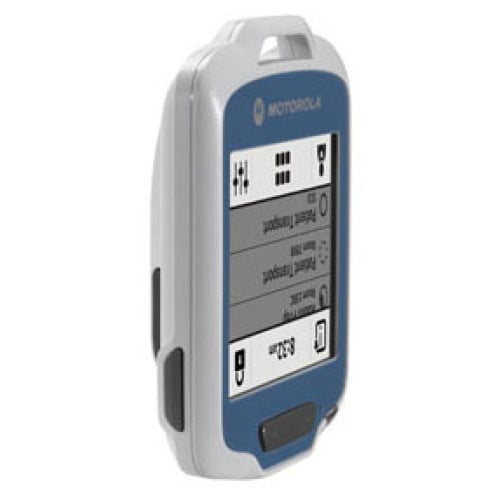

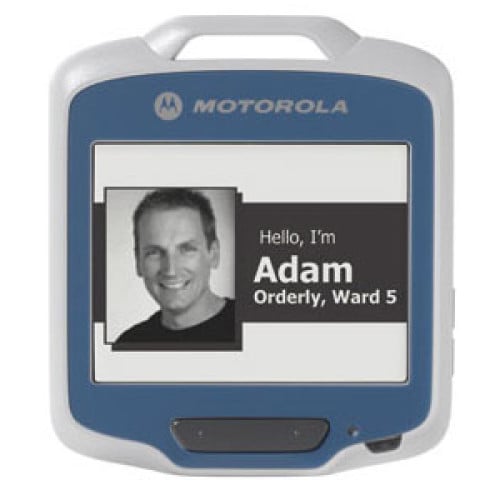

Motorola SB1-HC Mobile Computer

Communications

Radio
Wi-Fi IEEE® 802.11b/g/n

Performance characteristics

Applications
Supports thin client applications — HTML5 with RhoElements extensions

Processor (CPU)
i.MX35 (532MHz)

Memory
128 MB RAM/128 MB FLASH

Data capture options
1-D/2-D omni-directional barcode reader with integrated aiming and built-in illumination

Physical characteristics

Disinfectant-ready
Yes

Zebra Interactive Sensor Technology (ISTT)
Motion Sensor: Integrated accelerometer enables low-power badge mode and screen rotation

Durable
Yes

Display resolution
QVGA (320x240)

Weight
4.4 oz/124 g

Touch panel
Full screen resistive touch; finger operation (no stylus)

Voice, Speech and Audio
Integrated microphone, speaker, 2 PTT buttons (public and private) and headset jack

Notification
Beeper, Multi-colored LEDs

Display type
3.0 inch E Ink® Pearl display; 4-bit gray scale (16 shades)

Dimensions (HxWxD)
3.62 in L x 3.19 in W x 0.94 in D / (92mm L x 81mm W x 24mm D)

Power

Battery
910mAH (full charging in less than 4 hours)

Regulatory specifications

RF exposure
FCC Part 2, FCC OET Bulletin 65 Supplement C, RSS-102, EN 62311

Electrical safety
IEC/UL/CSA/EN 60950-1

Laser safety¹
EN 60825-1, IEC 60825-1, IEC/EN 62471

Environmental
RoHS Directive 2002/95/EEC

EMI/RFI
FCC Part 15 Class B, ICES-003 Class B, EN 55022, EN 55024, EN 61000-3-2, EN 61000-3-3, EN 60601-1-2

Radio
Wi-Fi IEEE® 802.11b/g/n

User environment

Humidity
5% to 95% non-condensing

Drop specification
Multiple 4-ft./1.22-m drops to tile over concrete per MIL STD 810G specifications

Operating temperature
32° F to 104° F / 0° C to 40° C

Environmental sealing
IP54

Storage temperature
-40° F to 158° F / -40° C to 70° C
