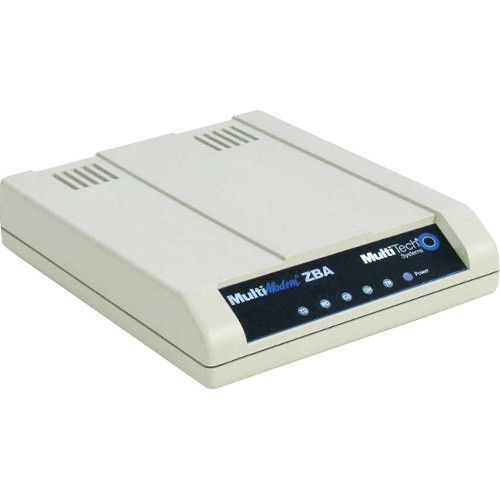

MultiTech MT9234ZBA-USB-CDC-XR Data Networking
Part #: MT9234ZBA-USB-CDC-XR | SKU: MUL215878

The MultiModemZBA corporate user modems provide high-speed data transfer and fax capabilities for small businesses, telecommuters and SOHO users. Features like remote configuration, callback security and 2-wire leased line support set the MultiModemZBA apart from other basic desktop modems. In addition, it is approved for use in many countries around the world. This means one model can ship virtually anywhere.

MultiTech MT9234ZBA-USB-CDC-XR Data Networking

Part Details: MultiTech USB Modem with CDC/ACM Driver - Serial - 56 kbit/s - Class 1.0, Class 2.0, Class 2, Class 1, Class 2.1, Super G3 Fax Technology - ITU-T V.92, ITU-T V.90, ITU-T V.32, ITU-T V.32bis, ITU-T V.22, ITU-T V.22bis, Bell 212, Bell 103, Bell 113, ITU-T V.21, ITU-T V.23 Modulation - 33.6 kbit/s Fax Transmission Data Rate. All MultiTech products are Non-Cancelable and Non-Returnable.

Need a different version of the MultiTech MultiModemZBA Accessory? View all 10 configurations

Additional Information

Manufacturer	MultiTech
Model Name	MultiModemZBA

MultiTech MultiModemZBA Specs (pdf)

Technical Information

Features:
- Voice Mail
- Caller ID
- Callback Security
Modulation:
- ITU-T V.92
- ITU-T V.90
- ITU-T V.32
- ITU-T V.32bis
- ITU-T V.22
- ITU-T V.22bis
- Bell 212
- Bell 103
- Bell 113
- ITU-T V.21
- ITU-T V.23
Fax Technology:
- Class 1.0
- Class 2.0
- Class 2
- Class 1
- Class 2.1
- Super G3

General Information

Product Type: Data/Fax Modem
Brand Name: Multi-Tech
Manufacturer: Multi-Tech Systems, Inc
Product Name: USB Modem with CDC/ACM Driver
Product Line: MultiModem ZBA

Physical Characteristics

Height: 1.2"
Width: 4.3"
Depth: 5.8"
Form Factor: Desktop
Weight (Approximate): 8.01 oz

Interfaces/Ports

Host Interface: Serial
Headphone: No
Number of Phone Line (RJ-11) Ports: 1
Microphone: No

Other

Platform Supported: PC
Package Contents:
- USB Modem with CDC/ACM Driver
- USB Cable
- Telephone Cable
- USB Modem with CDC/ACM Driver
- USB Cable
- Telephone Cable

Media & Performance

Modem Transmission Data Rate: 56 Kbps
Fax Transmission Data Rate: 33.6 Kbps

Warranty

Limited Warranty: 2 Year

Extended Details
