NEC NP-UM330X-WK Products
Part #: NP-UM330X-WK | SKU: NEC262683

Products and parts from NEC.

NEC NP-UM330X-WK Products

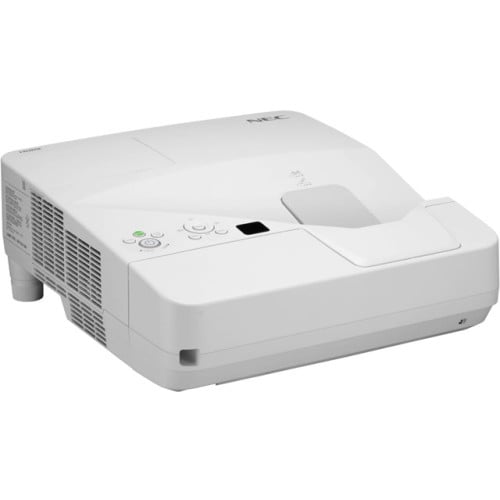

Part Details: XGA, LCD, 3300 LUMEN ULTRA SHORT THROW PROJECTOR with 16W SPEAKER, CLOSED CAPTIONING AND RJ45, 47.8 POUNDS, INCLUDES NP04WK WALL MOUNT

Need a different version of the NEC Parts Accessory? View all 442 configurations

Additional Information

Manufacturer	NEC
Model Name	Parts

Technical Information

Projection Method:
- Front
- Rear
- Ceiling
Platform Supported:
- PC
- Mac

General Information

Product Type: LCD Projector
Brand Name: NEC
Manufacturer: Nec Corporation
Product Model: NP-UM330X-WK
Product Name: 3300-LumenUltra Short Throw Projector with Wall Mount

Physical Characteristics

Height: 4.4"
Width: 16.9"
Depth: 23.3"
Weight (Approximate): 12.60 lb
Form Factor: Ceiling Mountable

Interfaces/Ports

USB: Yes
HDMI: Yes
Number of HDMI Ports: 2
S-Video: Yes
Composite Video: Yes
Network (RJ-45): Yes
Audio Line In: Yes
Audio Line Out: Yes
VGA In: Yes
VGA Out: Yes

Other

Package Contents:
- LCD Projector
- Remote Control
- Batteries
- RGB Cable
- User's Manual
- Product Registration Card
- Wall Mount
- LCD Projector
- Remote Control
- Batteries
- RGB Cable
- User's Manual
- Product Registration Card
- Wall Mount


Native Resolution: 1024 x 768
Standard Mode Brightness: 3300 lm
Graphic Mode: XGA
Maximum Projection Distance: 33.46"
Maximum Resolution: 1600 x 1200
Contrast Ratio: 3,000:1
Diagonal Image Size: 61.5" to 116.6"
Throw Ratio: 0.36 to 1
Minimum Projection Distance: 17.72"
Maximum Vertical Sync: 120 Hz
Maximum Horizontal Sync: 100 kHz

Video

Video Signal Standard: HDTV
Video Signal Format:
- PAL
- NTSC
- SECAM
Input Scan Format: 1080p
Output Scan Format: 720p

Lamp

Number of Lamps: 1
Normal Mode Lamp Life: 3000 Hour
Economy Mode Lamp Life: 6000 Hour
Lamp Power: 265 W
Lamp Type: AC

Power Description

Operating Power Consumption: 344 W
Standby Power Consumption: 200 mW
Input Voltage:
- 110 V AC
- 220 V AC

Lens

Maximum Lens Aperture: F/1.8
Zoom Type: Manual Zoom

Warranty

Limited Warranty: 2 Year
Parts Warranty/Labor: 1 Year - Lamp

Network & Communication

Ethernet Technology: Ethernet

Audio

Speaker Output Power: 16 W

Extended Details
