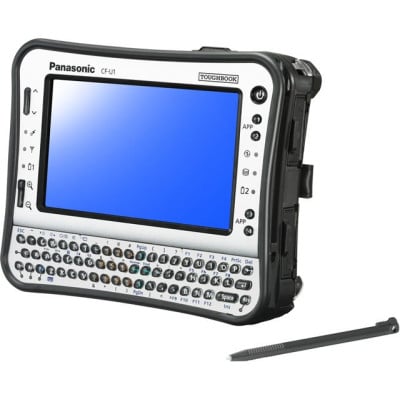

Panasonic Toughbook U1 Mobile Computer

Panasonic Toughbook U1 Mobile Computer

Panasonic Toughbook U1 Mobile Computer

In your world, a handheld is judged on more than just portability. The Panasonic Toughbook U1 is a new kind of mobile computer, a lightweight, rugged mobile office with hot-swappable twin batteries for extended productivity. It allows you to take your desktop applications mobile with Windows XP or Vista, just load your software onto the U1 and start working. There's no need to customize or maintain abbreviated software versions for handheld use. It also has seemingly endless integrated options like GPS, mobile broadband, a 2MP camera and fingerprint and barcode readers, making it much more than just a laptop. The Panasonic Toughbook U1, built to survive your tough world.
See all options
Panasonic Toughbook U1 Specs Panasonic Toughbook U1 Specs (pdf)



  Operating System   Windows Microsoft? Vista Business or XP Professional SP2

  CPU
  • Intel® Atom™ Processor Z520
  • 512KB L2 Cache
  • Processor speed 1.33GHz
  • 533MHz FSB


  Memory
  • 1024MB SDRAM (DDR2) standard
  • 16GB solid state removable drive (32 GB optional)


  Display
  • 5.6" widescreen WSVGA 1024 x 600 sunlight-viewable touchscreen LCD
  • External video support
  • Intel® SCH GMA500 integrated video controller max. 256MB UMA VRAM
  • Anti-glare, anti-reflective screen treatments
  • LED backlighting


  Audio
  • Analog Devices AD1883 compliant audio codec
  • Intel? high definition audio compliant
  • Integrated speaker
  • Convenient keyboard volume and mute controls


  Expansion Slot
  • SD Card (SDHC)
  • Optional magnetic stripe reader (with mini-dock)
  • Optional SmartCard reader (with mini-dock)


  Keyboard & Input
  • Touchscreen LCD
  • Integrated stylus holder (x 2)
  • 61-key with dedicated Windows? key and keyboard lock
  • Zoom (in/out) and scroll (up/down) buttons
  • 4 user-programmable buttons


  Interface
  • Mini-dock connector
  • Headphones/speaker
  • Microphone/line in
  • USB 2.0 (x1)
  • Optional ethernet RJ-45 (with mini-dock)
  • Optional serial (with mini-dock)


  Wireless
  • Optional integrated Gobi™ global mobile internet (WWAN)
  • Intel® WiFi Link 5100 a/b/g/draft-n
  • Bluetooth® v2.0 + EDR (Class 1)


  Power Supply
  • Twin hot-swappable lithium ion battery pack (7.2V, 2900mAh each)
  • Battery operation: 9 hours
  • Battery charging time: 7 hours off, 10 hours on
  • AC Adapter: AC 100V-240V 50/60Hz, Auto sensing/switching worldwide power supply


  Security Features
  • Password security
  • Cable lock slots (x2)
  • Computrace® theft protection agent in BIOS
  • TPM security chip v.1.2
  • Optional fingerprint reader
  • Optional SmartCard reader (with mini-dock)


  Integrated Options
  • Choice of 1D, 2D barcode or RFID readers
  • Global Mobile Broadband Internet-Gobi™ Technology (EV-DO Rev. A, HSPA)
  • 2.0MP camera with auto focus and dual LED light
  • 32GB SSD
  • GPS receiver
  • Fingerprint reader


  Dimensions & Weight
  • 5.9" (L) X 7.2" (W) x 2.2" (H)
  • 2.3 lbs (including strap and both batteries)


  Durability Features
  • MIL-STD-810F certified (6' drop rating)
  • MIL-STD-461E certified (requires special model)
  • IP65 certified sealed all-weather design
  • UL1604 certified model
  • CCX Certified v4
  • Magnesium alloy chassis
  • Removable SSD
  • Pivoting hand strap


  Warranty
  • 3-year limited warranty, parts & labor


  Disclaimer   Download the Specification Sheet for the most current and detailed product information.


Extended Details
Refine Your Options
  1. Panasonic CF-U1AQB1AAM Mobile Computer

    Panasonic CF-U1AQB1AAM Mobile Computer
    Part #: CF-U1AQB1AAM | SKU: PAN75489

    Panasonic Toughbook U1 Ultra Mobile PC - Intel Atom Z520 1.33GHz - 5.6" WSVGA - 1GB DDR2 SDRAM - 16GB SSD - Windows Vista Business / Windows XP Professional Downgradable - Magnesium Alloy
  2. Panasonic CF-U1AQB1Z2M Mobile Computer

    Panasonic CF-U1AQB1Z2M Mobile Computer
    Part #: CF-U1AQB1Z2M | SKU: PAN75494

    Panasonic Toughbook U1 Ultra Mobile PC - Intel Atom Z520 1.33GHz - 5.6" WSVGA - 1GB DDR2 SDRAM - Wi-Fi, Bluetooth - Windows Vista / Windows XP Professional Downgradable - Magnesium Alloy
  3. Panasonic CF-U1AQB2ZAM Mobile Computer

    Panasonic CF-U1AQB2ZAM Mobile Computer
    Part #: CF-U1AQB2ZAM | SKU: PAN75501

    Panasonic Toughbook U1 Ultra Mobile PC - Intel Atom Z520 1.33GHz - 5.6" WSVGA - 1GB DDR2 SDRAM - Wi-Fi - Windows Vista Business / Windows XP Professional Downgradable - Magnesium Alloy
  4. Panasonic CF-U1AQBCZ2M Mobile Computer

    Panasonic CF-U1AQBCZ2M Mobile Computer
    Part #: CF-U1AQBCZ2M | SKU: PAN75529

    Panasonic Toughbook U1 Ultra Mobile PC - Intel Atom Z520 1.33GHz - 5.6" WSVGA - 1GB DDR2 SDRAM - 16GB SSD - Wi-Fi, Bluetooth - Windows Vista / Windows XP Professional Downgradable - Magnesium Alloy

4 Item(s)

Recommended Accessories for Model: Panasonic Toughbook U1 Mobile Computer

  • Panasonic CF-VEBU12U Docks and Cradles
    Part #: CF-VEBU12U | SKU: PAN75855

    Docks & Cradles - Panasonic - CF-VEBU12U Docking Station - Serial - Network - Smart Card for the CF-U1
    MSRP: $399.00 Price: $349.93

  • Panasonic CF-VEBU13U Docks and Cradles
    Part #: CF-VEBU13U | SKU: PAN75864

    Docks & Cradles - Panasonic - Mini-Dock for CF-U1 with Serial - LAN without Smart Card
    MSRP: $339.00 Price: $297.32

  • Panasonic CF-WSDU1011 Accessory
    Part #: CF-WSDU1011 | SKU: PAN75868

    Computer Components - Panasonic - 16GB Solid State Drive - Internal - CF-U1
    MSRP: $582.00 Price: $510.44

  • Panasonic CF-WSDU1031 Accessory
    Part #: CF-WSDU1031 | SKU: PAN75869

    Computer Components - Panasonic - 32GB Solid State Drive - Internal - CF-U1
    MSRP: $1,242.00 Price: $1,089.27

  • Panasonic CF-KU1JG001 Spare Parts
    Part #: CF-KU1JG001 | SKU: PAN88355

    Spare Parts - Panasonic - Solid State Drive Copy Tool Kit for CF-U1
    MSRP: $134.00 Price: $117.52
View All Options
