PowerDsine PD-3501G/AC Data Networking
Part #: PD-3501G/AC | SKU: POW156403

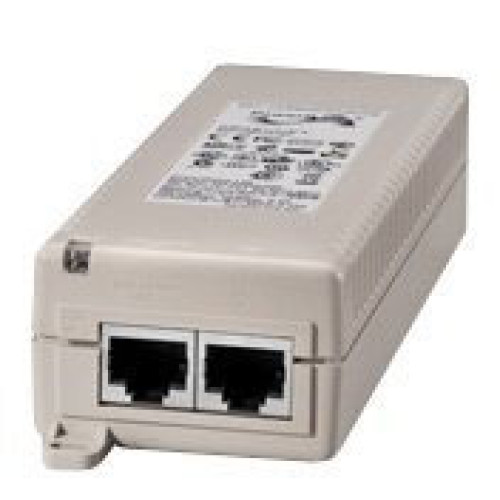

The PowerDsine 3501G Power over Ethernet (PoE) single port Midspan (PoE injector) offers a compact and cost effective, fully IEEE 802.3af compliant solution for IP phones, WLAN access points, network cameras and other IP terminal installations. The 3501G PoE midspan offers compact, affordable and reliable power over standard Ethernet cables, leaving network infrastructure completely unaltered. With the midspan's plug-and-play installation, they are easily and cost effectively implemented leveraging an existing Ethernet infrastructure while at the same time providing the assurance of a future proof network.

PowerDsine PD-3501G/AC Data Networking

Part Details: 1 Port PoE Midspan, AC Input, 1-port 10/100/1000 Mbps

Need a different version of the PowerDsine 3501G Data Networking? View all 1 configurations

Additional Information

Manufacturer	PowerDsine
Model Name	3501G

PowerDsine 3501G Specs (pdf)

Technical Information

Compatibility:
- IP Phones
- WLAN Access Points
- Network Cameras
- IP Terminals
Input Voltage:
- 110 V AC
- 220 V AC
Output Power: 15.40 W
Output Voltage: 48 V DC

General Information

Product Type: PoE Injector
Brand Name: PowerDsine
Manufacturer: Microsemi Corporation
Product Model: 3501G
Product Name: 1-Port PoE Midspan, 10/100/1000BaseT, AC Input

Physical Characteristics

Height: 1.3"
Width: 2.1"
Length: 5.5"
Weight (Approximate): 7.04 oz

Interfaces/Ports

Output Ports: 1 x RJ-45 10/100/1000Base-T

Other

Green Compliant: Yes
Green Compliance Certificate/Authority:
- RoHS
- WEEE
Certifications & Standards:
- EEE 802.3af compliant
- CE
- FCC Part 15, Class B
- EN 55022 Class B
- EN 55024
- VCCI
- UL/cUL per EN 60950-1
- GS Mark Per IEC 60950-1
- EEE 802.3af compliant
- CE
- FCC Part 15, Class B
- EN 55022 Class B
- EN 55024
- VCCI
- UL/cUL per EN 60950-1
- GS Mark Per IEC 60950-1
Country of Origin: China
Compatibility:
- IP Phones
- WLAN Access Points
- Network Cameras
- IP Terminals
Additional Information:
- Safe & reliable power over existing Ethernet infrastructure
- Stackable and compact
- Cisco and legacy PoE support

Power Description

Input Voltage Range: 90 V AC to 264 V AC
Frequency:
- 50 Hz
- 60 Hz
Input Current: 500 mA
Input Voltage:
- 110 V AC
- 220 V AC
Output Power: 15.40 W
Output Voltage: 48 V DC

Warranty

Limited Warranty: 1 Year
