PowerDsine PD-PoE-Extender Data Networking
Part #: PD-PoE-Extender | SKU: POW167449

The PowerDsine PoE Extender is a cost effective way to extend the Ethernet network range beyond 100m, delivering both data and power to network devices such as WLAN Access Points and Network Cameras up to a distance of 200m while complying with IEEE PoE and Data standards. The PoE Extender supports 10/100/1000Mbps data rates and delivers 802.3at power levels, up to 25.5W. The PoE Extender does not require local power and is powered via the PoE input.

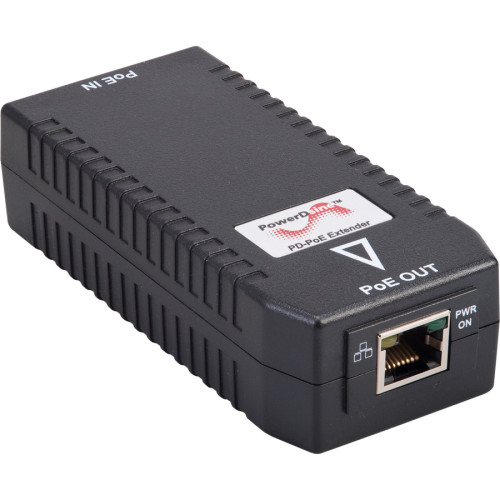

PowerDsine PD-PoE-Extender Data Networking

Part Details: PoE Extender, 1-port, High Power, Gigabit Extender

Need a different version of the PowerDsine PoE Extender Data Networking? View all 1 configurations

Additional Information

Manufacturer AIDC	PowerDsine
Model Name	PoE Extender

PowerDsine PoE Extender Specs (pdf)

General Information

Product Type: Network Extender
Brand Name: Microsemi
Manufacturer: Microsemi Corporation
Product Model: PD-PoE-Extender
Product Name: PowerDsine 1-port Network Extender
Product Line: PowerDsine
Packaged Quantity: 1

Physical Characteristics

Height: 1.2"
Width: 2"
Depth: 4.3"
Weight (Approximate): 3.53 oz

Other

Green Compliant: Yes
Green Compliance Certificate/Authority:
- RoHS
- WEEE
Certifications & Standards:
- UL/cUL Per EN 60950
- GS Mark Per EN 60950
- FCC Part 15, Class B
- EN 55022 Class B (Emissions)
- EN 55024 (Immunity)
- VCCI
- IEEE802.3at (PoE)
- CE
Additional Information:
- Extends Power over Ethernet Installations to 200 Meters
- Connectors: Shielded RJ-45 female socket
- Pass Through Data Rates: 10/100/1000 Mbps
- Provides 802.3af power levels when powered by any 802.3at source
- Provides 802.3at power levels when powered by PowerDsine 95xx Midspans
- Extenders can be cascaded to reach up to 500m
- Cost effective installation - no need for local power
- Plug and play installation - no configuration needed

Warranty

Limited Warranty: 1 Year

Extended Details
