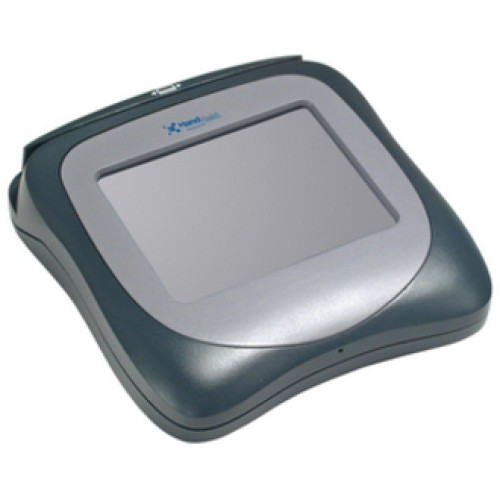

Honeywell TT8500-CEU Signature Pad
Part #: TT8500-CEU | SKU: HON25016

Hand Held Products introduces the revolutionary Transaction Team 8500. This state-of -the-art terminal offers unrivaled power, versatility, and value. POS payments, EBT, signature capture, and in-lane, targeted communications are enabled by the TT8500's fast processor and proven development environment. The TT8500 comes standard with features that are not available or cost extra with other terminals. Powered USB, 4MB flash, 16MB of RAM, and a 3-track magnetic stripe card reader are standard. Choose a color LCD, additional memory, USB host, and 10/100 Base T Ethernet factory options.

Honeywell TT8500-CEU Signature Pad

Part Details: Transaction Team 8500 Signature Capture Terminal (Unit Only - Color, LCD, 3 Track MSR, Ethernet and Host USB)

Need a different version of the Honeywell TT8500 Signature Pad? View all 14 configurations

Additional Information

Manufacturer	Honeywell
Model Name	TT8500

Honeywell TT8500 Specs (pdf)

Technical Information

Processor: Intel 32-bit
Display: Color - 320 x 240 - Touch Screen LCD
Signature Capture: Yes
RAM Memory: 16MB
Flash Memory: 4MB
Security:
- PIN Encryption
- Master/Session Support
- DUKPT Support
- Single and Triple DES
- DES 64 and 128 bit
- File Authentication
- Secure Key Injection
- Tamper Response
- Dedicated Security Processor
Interfaces/Ports:
- RS-232
- USB
- RJ-45
Input Voltage: 120 V AC
Network Connectivity: LAN Ethernet

General Information

Manufacturer:
- Hand Held Products
- Hand Held Products, Inc
Product Line: Transaction Team
Product Name: Transaction Team 8500 Payment Terminal

Physical Characteristics

Dimensions:
- 2" (51mm) x 7.3" (185mm) x 7.56" (192mm)
- 2" (51mm) x 7.3" (185mm) x x 7.56" (192mm)
Weight: 2 lb (0.91 kg)

Included Features

Included Features: Magnetic Stripe Reader (3 tracks)

Agency Approvals

Agency Approvals:
- FCC Class A CE (LVD) UL 1950 CSA 22.2 Visa PED Class A
- FCC Class ACE (LVD)UL 1950CSA 22.2Visa PED Class A

Warranty

Manufacturer Warranty: 1 Year(s) Limited
