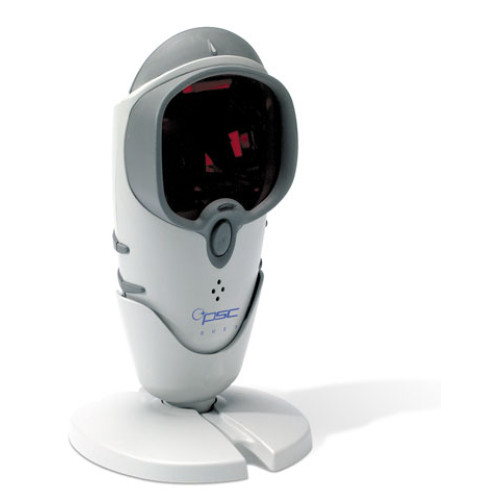

PSC 4310001-1100008003 Barcode Scanner
Part #: 4310001-1100008003 | SKU: PSC23163

With the Duet Dual Action Scanner retailers can now scan anything at the point-of-sale: small items large bulky items even items that aren't individually barcoded. Duet's unique Targeted Handheld capability eliminates the need to manually key items without barcodes such as unpackaged or specialty products. Simply direct the Scanner's pointer beam at a barcoded PLU list target the correct item press the trigger button and the correct data is captured. By isolating a single barcode this capability avoids reading the wrong barcode in a cluster of items. Using an advanced visible laser diode scanning system the Duet scanner offers a large 9 inch (22.9 cm) depth-of-field and wide scan area for higher performance hands-free scanning. With enhanced decoding capabilities the Scanner is fast with high first-pass read rates on a variety of barcodes including labels that are long highly truncated partially obscured and difficult to read. It also includes the patented PSC Edge software which automatically reconstructs torn or disfigured labels. And it reads labels with elements as small as 5 mils (0.127 mm). This versatile scanner autodiscriminates UPC or EAN plus 5 industrial symbologies and supports P2 P5 and C128 add-ons. With two scan windows the scanner can easily adapt to either fixed or handheld scanning applications: the omnidirectional pattern for general fixed retail scanning or the single scanline when held in the hand for reading large bulky items or barcoded PLU lists.

PSC 4310001-1100008003 Barcode Scanner

Part Details: Duet, Includes power supply and cable for Dresser Wayne

Need a different version of the PSC Duet Barcode Scanner? View all 4 configurations

Additional Information

Manufacturer	PSC
Model Name	Duet
Scanner Capability	1D

PSC Duet Specs (pdf)

Technical Information

Scan Pattern:
- Single Line
- Omni-directional
Connectivity Technology: Cable
Light Source: Laser
Barcode Symbology Supported:
- UPC-A
- UPC-E
- EAN-13
- EAN-8
- JAN-13
- JAN-8
- UPC P2 Add-ons
- UPC P5 Add-ons
- UPC Add-on C128
- Code 128
- Code 39
- Interleaved 2 of 5
- Codabar
- MSI/PLESSEY
- Autodiscriminate UPC Edge with Add-ons & 5 industrials
- Label Code
- Autodiscriminate UPC Edge with Add-ons & 5 industrials
- UPC-A
- UPC-E
- EAN-13
- EAN-8
- JAN-13
- JAN-8
- UPC P2 Add-ons
- UPC P5 Add-ons
- UPC Add-on C128
- Code 128
- Code 39
- Interleaved 2 of 5
- Codabar
- MSI/PLESSEY
- Autodiscriminate UPC Edge with Add-ons & 5 industrials
- Label Code
- Autodiscriminate UPC Edge with Add-ons & 5 industrials
Maximum Scan Resolution: 5 mil
Depth of Field:
- 1" - 2.50"@5 mil
- 0 mil - 6"@7.50 mil
- 0 mil - 7"@10 mil
- 0 mil - 9"@13 mil

General Information

Product Type: Handheld Barcode Scanner
Brand Name: Datalogic
Manufacturer: Datalogic S.p.A
Product Name: Duet Dual Action Barcode Reader
Product Line: Duet

Physical Characteristics

Height: 7"
Width: 3.4"
Depth: 2.6"
Weight (Approximate): 9 oz

Interfaces/Ports

Host Interface: Multi-interface

Other

Package Contents:
- Duet Dual Action Barcode Reader
- Power Supply
- Cable
- Duet Dual Action Barcode Reader
- Power Supply
- Cable
Certifications & Standards:
- Electrical :
- Gost R
- TÜV
- UL
- cU
- Emissions:
- FCC-A
- 47 CFR Part 15J
- BCIQ CNS 13438
- EN 55022-B;
- AS/NZ 3548
- CCI Class B
- Laser classification:
- CDRH Class IIa
- IEC 60825 Class 1
Additional Information:
- Supported Interface:
- RS-232
- IBM 46XX
- OCIA
- Standard and Universal Keyboard Wedges
- Wand Emulation

Power Description

Input Voltage: 14 V DC

Extended Details
