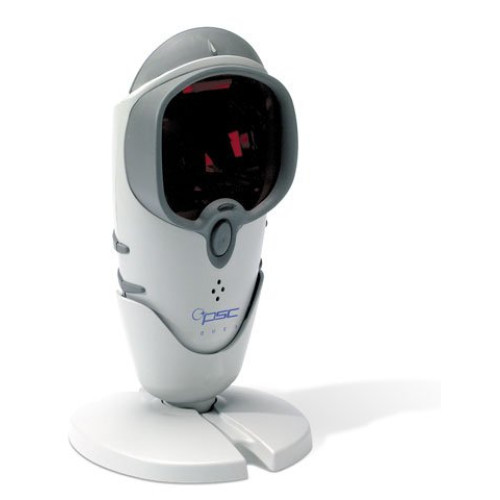

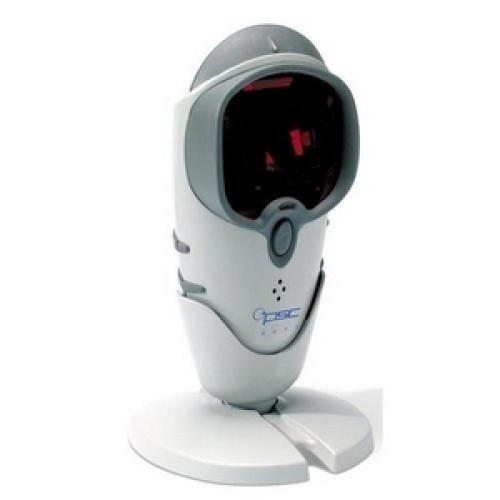

PSC DUET-1000 Barcode Scanner
Part #: DUET-1000 | SKU: PSC6080

With the Duet Dual Action Scanner retailers can now scan anything at the point-of-sale: small items large bulky items even items that aren't individually barcoded. Duet's unique Targeted Handheld capability eliminates the need to manually key items without barcodes such as unpackaged or specialty products. Simply direct the Scanner's pointer beam at a barcoded PLU list target the correct item press the trigger button and the correct data is captured. By isolating a single barcode this capability avoids reading the wrong barcode in a cluster of items. Using an advanced visible laser diode scanning system the Duet scanner offers a large 9 inch (22.9 cm) depth-of-field and wide scan area for higher performance hands-free scanning. With enhanced decoding capabilities the Scanner is fast with high first-pass read rates on a variety of barcodes including labels that are long highly truncated partially obscured and difficult to read. It also includes the patented PSC Edge software which automatically reconstructs torn or disfigured labels. And it reads labels with elements as small as 5 mils (0.127 mm). This versatile scanner autodiscriminates UPC or EAN plus 5 industrial symbologies and supports P2 P5 and C128 add-ons. With two scan windows the scanner can easily adapt to either fixed or handheld scanning applications: the omnidirectional pattern for general fixed retail scanning or the single scanline when held in the hand for reading large bulky items or barcoded PLU lists.

PSC DUET-1000 Barcode Scanner

Part Details: Dual Action Scanner (with RS-232 Interface - No Cable and No Power supply)

Additional Information

Manufacturer PSC
Model Name Duet

Technical Information

  • Form Factor:
    • Handheld Scanner
    • Presentation Scanner
  • Symbologies Supported:
    • UPC-A
    • UPC-E
    • JAN-8
    • JAN-13
    • EAN-8
    • EAN-13
    • Code 128
    • Code 93
    • Code 39
    • Interleaved 2 of 5
    • Codabar
    • RSS
    • RSS All Industrial Codes
    • UPC P2 Add-ons
    • UPC P5 Add-ons
    • Code 128 Add-ons
  • Scanner Type: Laser
  • Scan Rate: 1500 lps
  • Interface Options: RS-232
  • Interface Connectivity: Corded
  • Scan Pattern:
    • Omnidirectional
    • Single Line
  • Input Voltage Range: 4.7 to 14 V DC
  • Depth of Field:
    • 1 - 2.5"@5mils
    • 0 - 6"@7.5mils
    • 0 - 7"@10mils
    • 0 - 9"@13mils

General Information

Physical Characteristics

  • Weight:
    • 0.25 kg (0.55 lb) - Scanner
    • 0.29 kg (0.64 lb) - Base
  • Color: Gray

Agency Approvals

  • Agency Approvals:
    • Gost R
Extended Details
