rf IDEAS pcProx Plus Accessory

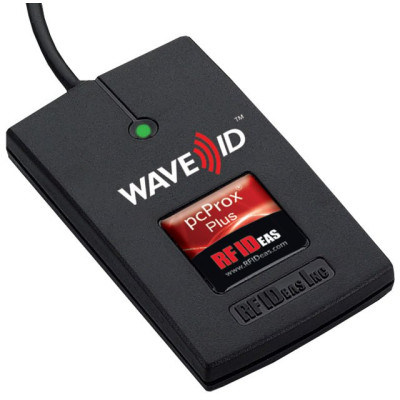

The RF IDeas pcProx Plus is a cutting-edge card reader that combines proximity and contactless technologies into one single reader.

Starting at: Price: $8.86

See all options

Specs & Info
All Options

rf IDEAS pcProx Plus Specs (pdf)

Features

Easy interface

USB models connect directly to a USB port and can be configured to send data as keystroking, non-keystroking or serial ASCII.

RS-232 models connect to a serial port and send data as ASCII. Ethernet models connect through an RJ45 connection and are sent data as either ASCII or E/IP. Note: To utilize PoE and E/IP features with some models, a C-6200 adapter may be required

Compatibility

Compatible with Windows CE/2000/XP/ Vista/7, Macintosh, Solaris, ThinManager thin clients, and Linux. (Free configuration software required on Windows operating system.)

Improves accuracy of information and productivity

Eliminates errors associated with individual identification.

Versatile mounting options

Featuring an articulated cable, the standard housing reader can easily be mounted on kiosks, monitors, time clocks, and more. *Also available in a wall mount design.

Meets Medical/Healthcare HIPAA Requirements

When used as a log-on reader

Meets CJIS Compliance Requirements

All pcProx readers are CJIS compliant and designed to keep law enforcement and criminal justice organizations current with compliance requirements

Meets IP67 Compliance Requirements

pcProx Wall Mount Only-When the IP67 Wall Mount reader is installed in accordance with the IP67 Wall Mount instructional guide

pcProx125 kHz Supported Cards-Partial List

AWID
Cardax*
CASI-RUSCO
Deister*
DIGITAG
EM 410x
Farpointe Data
GProx II*
HID Prox
HiTag 1, S & 2
IDTECK
Indala (Motorola)
ioProx (Kantech)
Keri NXT
Keri* Nexwatch (Honeywell)
Pyramid
Radio Key
ReadyKey Pro**Unique ID

pcProx13.56 MHz Supported Cards-Partial List

iCLASSSE
iCLASS ID
iCLASS CSN
NFC CSN Type 2/4
Advant CSN (Legic)
I-Code CSN
Tag-It CSN
eTag CSN
I-tag CSN
ISO 14443A CSN¹
ISO 15693 CSN
MIFARE CSN
MIFARE Ultralight CSN
my-d CSN
DESFire CSN¹Select NFC credentials

Specifications

Typical Maximum Read Range: 1.0" - 3.0" (2.5 - 7.6cm) dependent upon proximity card type and environmental conditions. Slightly diminished performance for certain card type as compared to pcProx reader.
Dimensions: 3 3/8" x 2" x 0.6" (8.57 x 5.08 x 1.52cm)
Weight: 4.0 oz (113.39g)
Power Supply: USB Self-powered; PoE; Serial RS-232: several power options exist
Interface: USB, Serial RS-232, Ethernet
Transmit Frequency: 125 kHz & 13.56 MHz
Operating Temperature Range: -22F to 150F (-30C to 65C)
Operating Humidity Range: 5% to 95% relative humidity, non-condensing
Storage Temperature Range: -40F to 185F (-40C to 85C)
Indicators: Tri-state LED, dual tone beeper
Desktop Unit Color: Black & Pearl
Cable Length: 6", 16" & 60" (Custom Lengths Available)
Certifications: FCC, United States; CE Mark, Europe; C-TICK, RoHS, Industry Canada, UL
