SATO W00413341 Barcode Label Printer SATO W00413341 Barcode Label Printer SATO W00413341 Barcode Label Printer

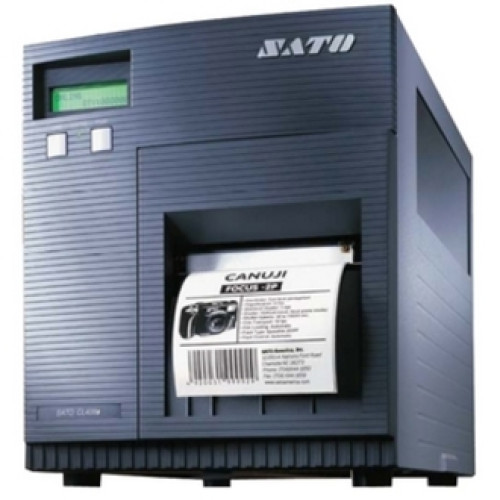

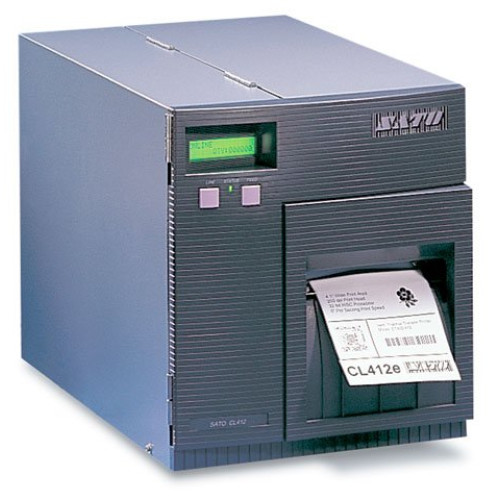

SATO W00413341 Barcode Label Printer
Part #: W00413341 | SKU: SAT8533

For advanced technology and high-speed performance the CLe Series printers have no match in the industry. Built in the tradition of SATO's rugged dependability the CLe Series printers are based on RISC processors delivering high-quality images at high speeds.

SATO W00413341 Barcode Label Printer

Part Details: Thermal transfer & direct thermal, 305 dpi, 6 ips, 4.1" print width, ethernet interface, 16MB RAM, 2MB Flash. Includes internal rewinder, WPC Plus printer control server & US power cord.
Need a different version of the SATO CL412e Barcode Label Printer? View all 5 configurations

Additional Information

Interface Options Ethernet
Manufacturer SATO
Max Roll Outer Diameter 8.6
Model Name CL412e
Print Resolution 305 dpi
Print Speed 6 ips
Printer Type Industrial
Printing Technology Thermal Transfer
Ribbon Core Size 1 inch
SATO CL412e Specs SATO CL412e Specs (pdf)

Technical Information

  • Maximum Mono Print Speed: 6 in/s
  • Maximum Print Resolution: 305 dpi
  • Maximum Print Width: 4.10"
  • Recommended Use: Label Print
  • Features: Rewinder
  • Barcode Symbology Supported:
    • UPC-A
    • UPC-E
    • ITF-14
    • UCC/EAN 128
    • Code 128
    • Interleaved 2 of 5
    • Code 39
    • RSS
    • POSTNET
    • EAN-13
    • EAN-8
    • Code 93
    • MSI
    • Codabar
    • Bookland
    • Matrix 25
    • Data Matrix
    • Maxi Code
    • PDF-417
    • QR Code
    • Micro PDF-417

General Information

  • Product Type: Direct Thermal/Thermal Transfer Printer
  • Product Series: e Series
  • Brand Name: Sato
  • Manufacturer: Sato Corporation
  • Product Model: CL412e
  • Product Name: CL412e Thermal Label Printer

Physical Characteristics

  • Height: 12.6"
  • Width: 10.7"
  • Depth: 16.9"

Media Types & Handling

  • Maximum Label Width: 5.10"
  • Maximum Label Length: 0.24"
  • Media Type:
    • Roll Fed
    • Fanfold
    • Die-cut Label
    • Continuous Form
    • Direct Thermal Label
    • Synthetic Media
    • Tag Stock
    • Thermal Transfer Label
  • Media Sensor:
    • Reflective Media Sensor
    • Transmissive Media Sensor
  • Label Core Size: 3"
  • Maximum Roll Diameter: 8.60"

Other

  • Platform Supported: PC
  • Certifications & Standards:
    • UL
    • CSA
    • FCC Class A
  • Additional Information:
    • WPC Plus printer control server
    • Graphic Support: Printing and storage of *.PCX, *.BMP format, SATO Hex/binary
    • Sensing:
    • Adjustable transmissive sensor for gap
    • Reflective sensor for black mark
    • Automatic, programmable top of form
    • Ribbon-out sensor

Power Description

  • Input Voltage:
    • 110 V AC
    • 220 V AC

Memory

  • Standard Memory: 16 MB
  • Flash Memory: 2 MB

Network & Communication

  • Ethernet: Yes
  • Ethernet Technology: Fast Ethernet

Warranty

  • Limited Warranty: 1 Year
