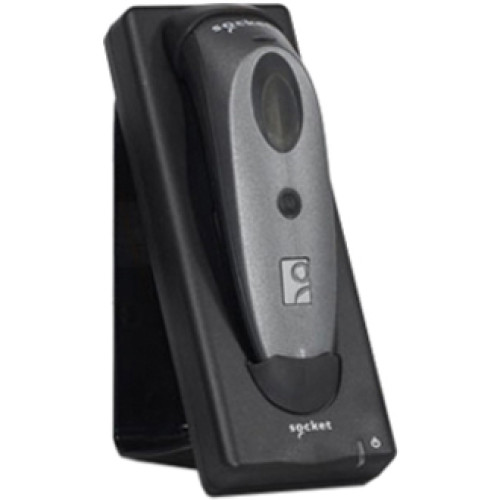

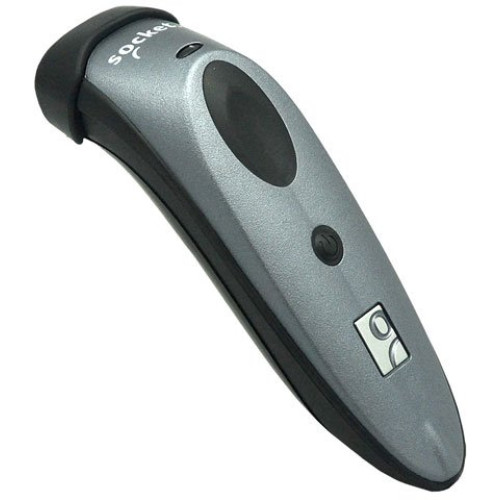

Socket Mobile CX2865-1337 Barcode Scanner
Part #: CX2865-1337 | SKU: SOC142207

Minimize manual data entry with the Socket CHS 7Xi, a high-performance 2D and 1D barcode scanner certified by Apple for the iPad, iPad mini, iPhone and iPod touch. Small, lightweight and comfortable to hold, the CHS 7Xi connects wirelessly to the latest smartphones and tablets and can scan barcodes printed on labels or displayed on device screens. Durable and easy to connect, it's ideal for asset tracking, field service or other mobile scanning applications requiring 2D barcode support.

Socket Mobile CX2865-1337 Barcode Scanner

Part Details: Socket 7Xi Handheld Bar Code Reader - DISCONTINUED - Wireless Connectivity - 16" Scan Distance - 1D, 2D - Imager - Omni-directional - Bluetooth - Gray

Need a different version of the Socket Mobile Cordless Hand Scanner 7Xi Barcode Scanner? View all 2 configurations

Additional Information

Connectivity	Cordless
Form Factor	Handheld
Manufacturer	Socket Mobile
Model Name	Cordless Hand Scanner 7Xi
Scanner Capability	1D
Scanner Type	Imager

Socket Mobile Cordless Hand Scanner 7Xi Specs (pdf)

Technical Information

Barcode Dimension:
- 1D
- 2D
Scan Pattern: Omni-directional
Connectivity Technology: Wireless
Scanning Distance: 16"
Image Sensor: Imager
Barcode Symbology Supported:
- 1D:
- Bookland EAN (ISBN / EAN-13)
- Codabar (including ISBT 128 bit concatenation)
- Code 11
- Code 128
- Code 39
- Code 93
- Discrete 2 of 5
- GS1 DataBar (RSS)
- GS1-128 (UCC-128/EAN-128)
- Interleaved 2 of 5 (ITF-14)
- MSI, Plessey
- UPC/EAN
- 2D:
- Aztec
- Codablock
- Data Matrix
- GS1 (EAN.UCC)
- Matrix 2 of 5
- Maxicode
- PDF 417/ Macro PDF 417/ Micro PDF 417
- QR Code
- Standard 2 of 5
- Telepen
- TLCode 39
- Postal:
- Australia Post
- BPO 4
- Canada Post
- Dutch Post (KIX)
- Japan Post
- Planet
- Postnet
- RM4SCC
- Sweden Post
- TLCode 39
- 4 State
- Code
- USPS Intelligent Mail
- 1D:
- Bookland EAN (ISBN / EAN-13)
- Codabar (including ISBT 128 bit concatenation)
- Code 11
- Code 128
- Code 39
- Code 93
- Discrete 2 of 5
- GS1 DataBar (RSS)
- GS1-128 (UCC-128/EAN-128)
- Interleaved 2 of 5 (ITF-14)
- MSI, Plessey
- UPC/EAN
- 2D:
- Aztec
- Codablock
- Data Matrix
- GS1 (EAN.UCC)
- Matrix 2 of 5
- Maxicode
- PDF 417/ Macro PDF 417/ Micro PDF 417
- QR Code
- Standard 2 of 5
- Telepen
- TLCode 39
- Postal:
- Australia Post
- BPO 4
- Canada Post
- Dutch Post (KIX)
- Japan Post
- Planet
- Postnet
- RM4SCC
- Sweden Post
- TLCode 39
- 4 State
- Code
- USPS Intelligent Mail

General Information

Product Type: Handheld Barcode Scanner
Product Series: 7
Brand Name: Socket
Manufacturer: Socket Mobile, Inc
Product Model: 7Xi
Product Name: 7Xi Handheld Barcode Reader

Physical Characteristics

Height: 5.2"
Width: 1.5"
Depth: 1.8"
Weight (Approximate): 2.40 oz

Other

Platform Supported:
- Mac
- PC

Battery Information

Number of Batteries Supported: 1
Battery Chemistry: Lithium Ion (Li-Ion)

Network & Communication

Bluetooth: Yes

Extended Details
