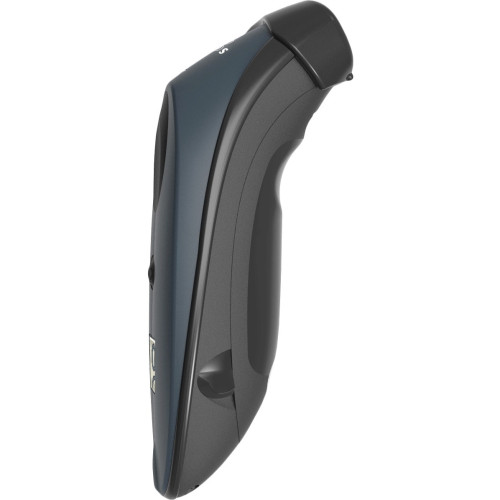

Socket Mobile CX2877-1472 Barcode Scanner

Socket Mobile CX2877-1472 Barcode Scanner
Part #: CX2877-1472 | SKU: SOC194943

The Socket-Mobile Apple certified CHS 7Di combines durable construction, low cost and robust 1D barcode scanning performance for mobile workers in more rugged environments.

Socket Mobile CX2877-1472 Barcode Scanner

Part Details: Cordless - 1D Linear Imager - Bluetooth Interface - Rugged Housing - Includes AC adapter and charging cable - Works with Apple iOS (iPad, iPhone, iPod) and Android - Charging cradle sold separately - Color: Gray

Need a different version of the Socket Mobile CHS 7Di Barcode Scanner? View all 1 configurations

Additional Information

Color	Gray
Connectivity	Cordless, iOS/Android, iOS/iPad
Form Factor	Handheld
Included Cables	Scanner Only - No Cable
Interface Options	Bluetooth
Manufacturer AIDC	Socket Mobile
Model Name	CHS 7Di
Scanner Capability	1D
Scanner Type	CCD, Imager

Socket Mobile CHS 7Di Specs (pdf)

Technical Information

Barcode Dimension: 1D
Scan Rate: 5 scan/s
Connectivity Technology: Wireless
Scanning Distance: 20"
Image Sensor: Imager
Barcode Symbology Supported:
- Bookland EAN (ISBN / EAN-13)
- Chinese 2 of 5
- Codabar
- Code 11
- Code 128
- Code 39
- Code 93
- Discrete 2 of 5
- GS1 DataBar (RSS)
- GS1-128 (UCC-128/EAN-128)
- Interleaved 2 of 5 (ITF-14)
- MSI
- Plessey
- UPC/EAN
- UPC/EAN/JAN supplemental redundancy
- Coupon Report
- ISSN EAN
- Inverse 1D
- ISBT concatenations
- Matrix 2 of 5
- Bookland EAN (ISBN / EAN-13)
- Chinese 2 of 5
- Codabar
- Code 11
- Code 128
- Code 39
- Code 93
- Discrete 2 of 5
- GS1 DataBar (RSS)
- GS1-128 (UCC-128/EAN-128)
- Interleaved 2 of 5 (ITF-14)
- MSI
- Plessey
- UPC/EAN
- UPC/EAN/JAN supplemental redundancy
- Coupon Report
- ISSN EAN
- Inverse 1D
- ISBT concatenations
- Matrix 2 of 5

General Information

Product Type: Handheld Barcode Scanner
Product Series: 7
Brand Name: Socket
Manufacturer: Socket Mobile, Inc
Product Model: CHS 7Di
Product Name: Bluetooth Cordless Hand Scanner (CHS) 7Di

Physical Characteristics

Height: 5.2"
Width: 1.5"
Depth: 1.8"
Color: Gray
Weight (Approximate): 3.20 oz

Other

Green Compliant: Yes
Green Compliance Certificate/Authority: RoHS
Package Contents:
- Bluetooth Cordless Hand Scanner (CHS) 7Di
- 2 x AAA Rechargeable Batteries
- USB AC Charger Kit
- Lanyard/belt Clip with Retractable Tether
- Software
- Bluetooth Cordless Hand Scanner (CHS) 7Di
- 2 x AAA Rechargeable Batteries
- USB AC Charger Kit
- Lanyard/belt Clip with Retractable Tether
- Software
Certifications & Standards:
- Electrical Safety / Environmental:<br />
- IEC 60950-1
- UL 60950-1
- CAN/CSA C22.2
- EMI / RFI:
- FCC Part 15 Class C
- RSS 210
- iCES 003
- C-Tick
- CISPR 22
- CE EN55022
- EN55024
- TELEC
- Laser / LED Safety:
- IEC 60825-1
- EN 60825-1
Platform Supported:
- PC
- Mac
- iOS
- Android
- Smartphone

Battery Information

Battery Size Supported: AAA
Number of Batteries Supported: 2
Battery Rechargeable: Yes
Maximum Number of Scans per Full Charge: 15000
Battery Chemistry: Nickel Metal Hydride (NiMH)

Warranty

Limited Warranty: 1 Year

Network & Communication

Bluetooth: Yes

Power Description

Power Source: Battery

Extended Details

Recommended Accessories for Model: Socket Mobile CX2877-1472 Barcode Scanner

Socket Mobile AC4058-1415 Cables, Connectors, and Adapters
Part #: AC4058-1415 | SKU: SOC168007

AC Power Supply - Includes USB Charging Cable - Compatible with Socket CHS 7C, 7Ci, 7E, 7M, 7P, 7X, 7Xi, 7XiRx, 7XRx
Socket Mobile AC4051-1192 Cables, Connectors, and Adapters
Part #: AC4051-1192 | SKU: SOC85325

Socket CHS Series 7 USB A Male to DC Plug Charging Cable - For Scanner - 2 A
