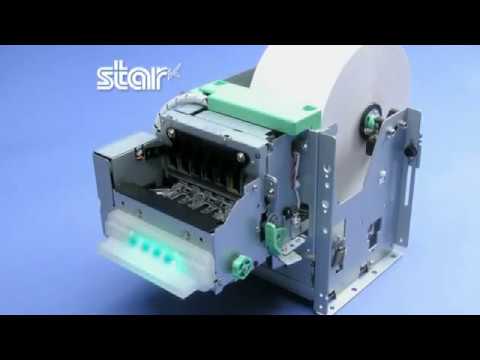

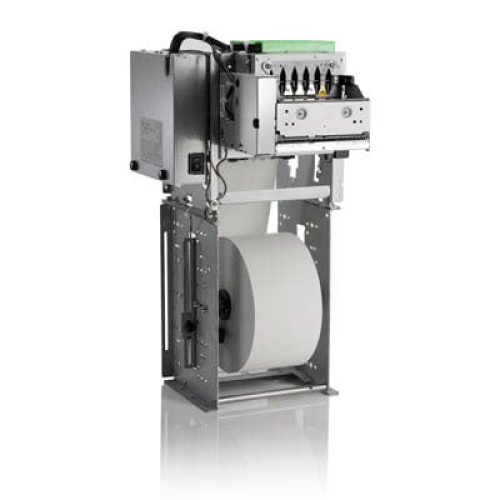

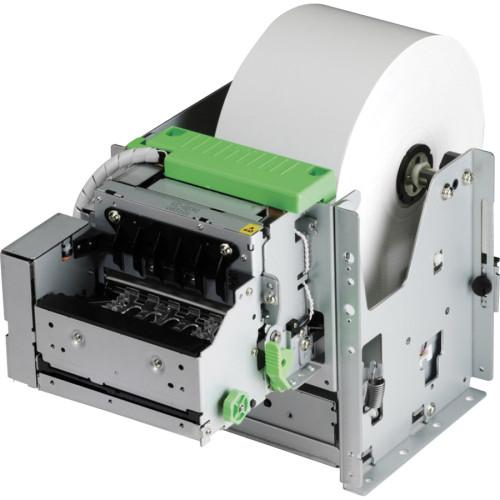

Star 39470000 Receipt Printer
Part #: 39470000 | SKU: STA143712

With a compact footprint and support for smaller paper widths, the TUP500 Series is a welcomed addition to Star's kiosk printer line to provide solutions to a great range of applications. The TTUP500 Series features an industry leading print speed of up to 220 mm/sec and a high reliability at an MCBF of 60 million lines. The innovative looping presenter prevents paper jams by printing the receipt in full before providing it to the user. The Presenter also uses Star" document capture technology to retract receipts left by the user, resulting in increased document security and a cleaner operation area. A brand new innovative bezel (snout) option can be directly attached to the presenter to capture the user"s attention with programmable 2-color (red & green) flashing LED lights. The TUP500 Series features adjustable paper widths of 45 mm to 82.5 mm documents. With the addition of the optional Large Paper Roll Accessory, it supports up to a 10" paper roll for many hours of unattended operation. The TUP500 Series kiosk printer is ideal for a wide range of applications including public information kiosks, gaming, lottery, web kiosks, and much more.

Star 39470000 Receipt Printer

Part Details: Kiosk Receipt Printer - Star TUP500 - Thermal - Cutter - 8.66 ips - Presenter. Requires Power Supply Sold Separately (Part# 30781753). Compatible Interface Boards Sold Separately: Ethernet (Part# 39607800) - Parallel (Part# 39607211) - Serial (Part# 39607200) - Serial 9 Pin (Part# 39607300) - USB (Part# 39607510). Also Known As: TUP592-25

Additional Information

Manufacturer Star
Model Name TUP500 Series

Technical Information

  • Maximum Mono Print Speed: 8.66 in/s
  • Maximum Print Resolution: 203 dpi
  • Print Color: Monochrome
  • Maximum Print Width: 3.15"
  • Recommended Use: Receipt Print
  • Features: Auto-cutter
  • Barcode Symbology Supported:
    • UPC-A
    • UPC-E
    • JAN
    • EAN-8
    • EAN-13
    • ITF
    • Code 39
    • Code 93
    • Code 128
    • Codabar

General Information

  • Product Type: Direct Thermal Printer
  • Product Series: TUP500
  • Brand Name: Star Micronics
  • Manufacturer: Star Micronics, Inc
  • Product Model: TUP592-24
  • Product Name: TUP500 TUP592-24 Receipt Printer

Physical Characteristics

  • Height: 7"
  • Width: 6.3"
  • Depth: 9.2"
  • Form Factor: Desktop

Interfaces/Ports

  • USB: Yes
  • Serial Port: Yes
  • Parallel Port: Yes

Media Types & Handling

  • Maximum Label Width: 3.25"
  • Media Type: Receipt
  • Media Thickness: 5.91 mil
  • Media Sensor:
    • Out Of Paper Sensor
    • Paper Low Sensor
    • Reflective Media Sensor
  • Maximum Roll Diameter: 5.91"

Other

  • Platform Supported:
    • Mac
    • PC

Network & Communication

  • Ethernet: Yes
  • Ethernet Technology: Ethernet

Cutter

  • Cutting Method: Automatic

Warranty

  • Limited Warranty: 3 Year

Power Description

  • Input Voltage: 24 V DC

Fonts & Emulation

  • Language Emulation: ESC/POS
Extended Details

Recommended Accessories for Model: Star 39470000 Receipt Printer

  • Star 39607820 Accessory
    Part #: 39607820 | SKU: STA256593

    Interface Board - Star - USB. Compatible with TSP650II - TSP700II - TSP800II - TUP500 Series. Replaces (Part# 39607510). Also Known As: IFBD-HU07
    MSRP: $71.00 Price: $61.85
    In Stock
  • Star 39590301 Accessory
    Part #: 39590301 | SKU: STA310286

    Roll Holder - Star - Large Capacity Paper Roll Holder. Compatible with TUP500. Replaces (Part# 39590300). Also Known As: RHU-T500
    MSRP: $53.00 Price: $48.89
    In Stock
  • Star 33914240 Accessory
    Part #: 33914240 | SKU: STA270100

    Printer Accessory - Star - Roll Paper Holder. Compatible with TUP 5 - TUP9
    Price: $10.73
  • Star 31302150 Accessory
    Part #: 31302150 | SKU: STA256604

    Printer Accessory - Star - Roll Paper Shaft. Compatible with TUP5
    Price: $13.76
  • Star 39591010 Accessory
    Part #: 39591010 | SKU: STA256649

    Spare Part - Star - Paper Roll Tension Bar. Compatible with TUP500 - TMP500
    Price: $22.96

Recommended Receiptpapers for Model: Star 39470000 Receipt Printer

  • Star 37996690 Receipt Paper
    Part #: 37996690 | SKU: STA191221

    Receipt Paper, 3.15" x 6" outer diameter Thermal Receipt Paper, 0.09 MM, single roll. Also known as TRF-80-6MG.
  • Star 37996700 Receipt Paper
    Part #: 37996700 | SKU: STA38615

    80 mm, 3.15" x 6", Thermal Roll Paper, 8 rolls. Also available as a roll (Part# 37996700-R). Also known as TRF-80-6.
