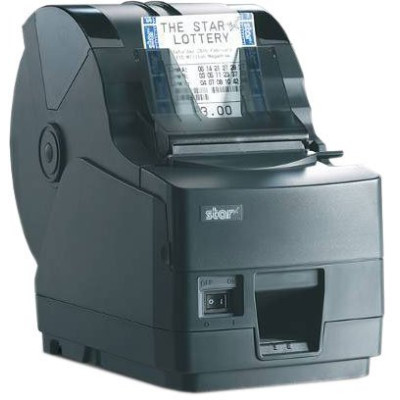

Star TSP1000 Receipt Printer

Star TSP1000 Receipt Printer

Star TSP1000 Receipt Printer

The Star TSP1000 supports up to a 7" diameter paper roll that is perfect for high-volume applications. The integrated ticket/document stacker aids in sorting multiple tickets/documents where batch printing is required. The TSP1000 also has a 203 dpi resolution, a 7" per second print speed and support for 2D bar codes.
Starting at: MSRP: $832.00 Price: $16.23
See all options
Star TSP1000 Specs Star TSP1000 Specs (pdf)
SPECIFICATIONS
Printer Method Direct Linear Thermal
Print Speed 180 mm/sec or 56.7 lps (8 lines per inch)
Character Matrix 12 x 24 dots, 9 x 24 dots
Print Resolution 203 dpi (8 dots per mm)
Two Colour Print Capability Red & Black / Blue & Black (special paper required)
No. of Columns
 48 / 64 or 53 / 71 (depends on Paper Width) incl. 1st column print for lottery applications
Character Set ANK 95, 32 Int 128 Graphic
International Code Pages Star Mode=40. ESC/POS™= 6
1 blank allowing an additional character page to be added
Barcodes 9 versions / PDF 417, Maxicode Option (Pending)
Line Spacing 3 mm or 4 mm or programmable to 1/8mm
Line Speed 180 mm/sec
Paper Specifications
 Width

Thickness / Weight
Roll Diameter
Easy-Load
Paper End and Near End Sensor
44 - 82.5mm (variable).

0.08 ~ 0.15 mm / 80 ~ 150 gsm
180 mm
"Drop-In & Print"

Standard
Maximum Print Width


Top Margin

82.5 mm paper = 80 mm
Left / Right margin 0mm, 1st column print

11 mm minimum default

Autocutter (guillotine) Full cut
Position - approx.
Logo Store Star Line Mode & ESC/POS™ mode - 440K
Star Page Mode - 248K
Flash ROM 2 x 8Mbit Flash Rom's
Drivers available High Speed Scalable Raster Graphics Driver
Windows 95/98/ME, NT 4.0, Win 2000, Windows XP, OPOS, JAVA-POS
Linux CUPS Support, Apple MAC (contact Star)
Interface Serial, Parallel or USB as standard.
Ethernet & WiFI options (contact Star for details)
Emulation Star Line Mode & Page Mode & ESC/POS
Peripheral Drive Circuit   2 circuits, (24V max. 1A)
No Compulsion input
Power Consumption  Operating / Waiting - Average 1.5 / 0.3A
Operating Conditions Temperature: 5°C to 45°C
Humidity: 10% - 90% RH (without condensation)
Storage Conditions Temperature: 5°C to 45°C
Humidity: 10% - 90% RH
Dimensions / Weight 161W x 306.5D x 249H mm / 3.1 Kg
Safety Standards UL, C-UL, TüV, FCC, VCCI, EN55022, CE
Reliability

Autocutter		 60 million lines (CRT MCBF)
20 million lines (Traditional)
1 million cuts MCBF
(0.065 - 0.1 mm paper)
Options

Ethernet Interface
WiFI (contact Star for details)
Extended Details
Refine Your Options
  1. Star TSP1043D-24GRY Receipt Printer

    Star TSP1043D-24GRY Receipt Printer
    Part #: TSP1043D-24GRY | SKU: STA15740

    TSP1043, Direct thermal, 80 mm, 203 dpi, Serial Interface. Color: Gray. Order interface cable and power supply (Part# 30781753) separately. See accessories.
  2. Star TSP1043U-24GRY Receipt Printer

    Star TSP1043U-24GRY Receipt Printer
    Part #: TSP1043U-24GRY | SKU: STA15744

    TSP1043, Direct thermal, 80 mm, 203 dpi, USB Interface. Color: Gray. Order interface cable and power supply (Part# 30781753) separately. See accessories.
  3. Star TSP1045U-24-GRY Receipt Printer

    Star TSP1045U-24-GRY Receipt Printer
    Part #: TSP1045U-24-GRY | SKU: STA23631

    TSP1045, Direct thermal, 82.5 mm, 203 dpi, USB Interface, Color: Gray. Order interface cable and power supply (Part# 30781753) separately. See accessories.

Items 11 to 13 of 13 total

Page:
  2. 1
  3. 2

Recommended Accessories for Model: Star TSP1000 Receipt Printer

  • Star 37995310 Power Device
    Part #: 37995310 | SKU: STA23470

    Power Adapter - Star - Automotive Adapter - 12V to 24V Cigarette Lighter. Compatible with TSP and FVP Series (Excludes TSP100). NCNR. Also Known As: AUTOMOTIVE 24V PWR ADAPT (ST2425-626)
    MSRP: $231.00 Price: $200.09
    In Stock

  • Star 39607400 Accessory
    Part #: 39607400 | SKU: STA38632

    Interface Board - Star - RS-232 Serial. Compatible with TSP640 - TSP1000 - SP700 - HSP7000 - TUP900 Series. Also Known As: IFBD-HD04
    MSRP: $45.00 Price: $43.19
    In Stock

  • Star 37469090 Accessory
    Part #: 37469090 | SKU: STA422798

    Printer Accessory - Star - Head Unit. Compatible with TSP100
    MSRP: $56.00 Price: $45.98
    In Stock

  • Star 37967820 Mounting Hardware and Stands
    Part #: 37967820 | SKU: STA579080

    Stand - Star - Black. Compatible with TSP100III - TSP650II. NCNR. Also Known As: mUnite-POS BLK
    MSRP: $335.00 Price: $12.57
    In Stock

  • Star 32010370 Mounting Hardware and Stands
    Part #: 32010370 | SKU: STA222039

    Mount - Star - Wall Type Chassis. Compatible with TSP100 Series - TSP650 - TSP700 Series
    Price: $25.87
View All Options

Recommended Receiptpapers for Model: Star TSP1000 Receipt Printer

  • BCI RPT3.125-230-CASE Receipt Paper
    Part #: RPT3.125-230-CASE | SKU: BCI496270

    THERMAMARK - THERMAL RECEIPT PAPER - CONSUMABLES - 3.125"(80MM)X 230'(70.1MM) - 0.4375" CORE - 2.85"(72.39MM) Outside Diameter - BPA FREE - WHITE - 50 Rolls per Case - PRICED PER CASE
    MSRP: $128.72 Price: $120.52
    In Stock

  • Star 37966510 Receipt Paper
    Part #: 37966510 | SKU: STA456618

    Receipt Paper - Star - 3.14"(80mm) x 950'(290M) - White - Blue Core - 8 Rolls Per Case - MOQ: 20 Cases. Priced Per Case. Also Known As: TRF80-D150-C25 8PK. Compatible With: TUP500 - TSP1000
    MSRP: $159.00 Price: $137.87

  • Star 37996690 Receipt Paper
    Part #: 37996690 | SKU: STA191221

    Receipt Paper, 3.15" x 6" outer diameter Thermal Receipt Paper, 0.09 MM, single roll. Also known as TRF-80-6MG.

  • Star 37996700 Receipt Paper
    Part #: 37996700 | SKU: STA38615

    80 mm, 3.15" x 6", Thermal Roll Paper, 8 rolls. Also available as a roll (Part# 37996700-R). Also known as TRF-80-6.

  • Star 87993460 Receipt Paper
    Part #: 87993460 | SKU: STA182219

    Receipt Paper, 80 MM (3.15") Thermal Receipt Paper, single roll. Also known as TRF-80.
View All Options
