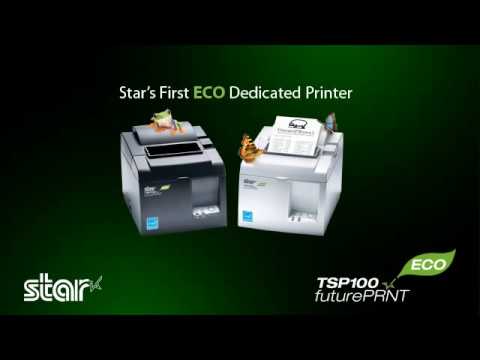

Star TSP100ECO Receipt Printer

SPECIFICATIONS - TSP100ECO Series

Printer Method

Direct Line Thermal

Print Speed

28 RPM (Receipts Per Minute)

Printer Case Color

Putty or Gray

Models Available

Auto Cutter model only

Print Resolution

203 dpi (8 dots per mm)

No. of Columns

Star Mode = 40, ESC/POS Font A 42 Font B 64

Font Size

12 x 24

Character Set

ANK 95, 32 Int 128 Graphic plus Chinese, Japanese, Korean, Taiwanese

International Code Pages

Star Mode=40. ESC/POS= 10 + 1 blank allowing an additional character page to be added

Bar Codes

Extended barcode functionality - 9 versions / PDF 417, Maxicode Option

Line Spacing

3 mm or 4 mm or programmable

Paper Specifications
Width

Thickness
Roll Diameter
Easy-Load
Paper Out Sensor
Paper Low Sensor
Maximum Print Width

80mm standard, 58mm with paper guide

0.065 ~ 0.085 mm
Up to 83 mm
"Drop-In & Print"
Standard
N/A
80mm paper = 72mm, 58mm paper = 50.8mm

Top Margin

3 mm minimum default

Auto Cutter

Guillotine (Partial Cut Only)

Cover Open Sensor

Yes

Logo Store Capacity

Unlimited

Multiple Copy Support

Supported through futurePRNT Software

Journal Capability

Supported through futurePRNT Software

Label Support

N/A

Power Supply

Internal with power cable supplied (not available on the TSP100PUSB; requires optional PS60A external power supply only when using standard Full Speed 2.0 USB cable)

Drivers Available

Windows XP 32 Bit, Vista 32/64 Bit, Windows 7 32/64 Bit, Server 2008 32/64 Bit, XP Embedded, POSReady 2009, OPOS, JavaPOS, USB Vendor Class, Linux, Mac OS X, StarIO SDK with support for ios, Android and Blackberry

Digitally Signed (WHQL)

Yes

Swappable Interfaces

N/A

Connectivity
TSP100ECO
Virtual Serial Port to USB

USB 2.0, Full Speed with cable supplied
Supported through futurePRNT Software

Emulation Modes

Star Mode, ESC/POS

Peripheral Drive Circuit

2 circuits, (24V max. 1A), 1 Compulsion input

Power Consumption

Average 1.6 Amp. Printing, 0.1 Amp. Standby

Operating Conditions

Temperature: 5C to 45C
Humidity: 10% - 90% RH (without condensation)

Storage Conditions

Temperature: -20C to 60C
Humidity: 10% - 90% RH

Dimensions
Weight:
Auto Cutter Models

142 x 132 x 204 (w x h x d)mm

TSP143ECO - 1.73Kg,

Safety Standards

UL, C-UL, TA¬V, FCC, VCCI, EN55022, CE

Reliability MCBF
Print Head
Auto Cutter

60 Million Lines
100km
1 Million Cuts

Accessories ALL Included with Printer

Installation CD with Drivers and futurePRNT Receipt ReDesign Software, Wall Mount Bracket, Auto Reverse Text Output Software, Vertical Mount Accessory, 58mm Paper Guide, 6ft Interface Cable, 6ft Power Cable, Power Switch Cover

Warranty

4 Year Full Warranty, 1-year Swap-A-Star included free of charge (US and Canada)

Options

Splash Proof Cover (SPC-T100)
Display Stand for Vertical Use (VS-T650)
Kitchen Buzzer (BU01-24-A)
Swap-A-Star Extended Warranty Program (US and Canada)
Extend-A-Star Extended Warranty Program (US and Canada)
