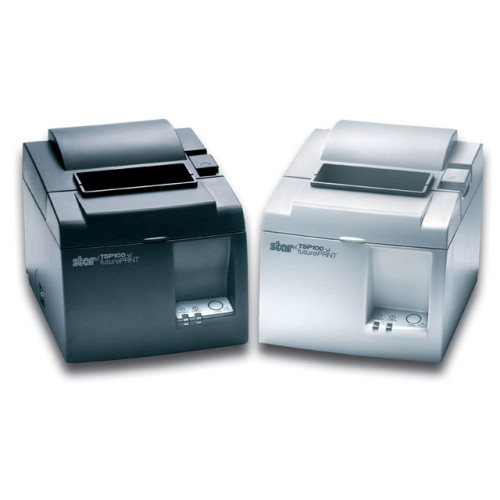

Star TSP100LAN futurePRNT Receipt Printer

SPECIFICATIONS - TSP100 futurePRNT Series

Printer Method

Direct Line Thermal

Print Speed

22 RPM (Receipts Per Minute)

Printer Case Color

Putty or Gray

Models Available

Tear Bar or Auto Cutter

Print Resolution

203 dpi (8 dots per mm)

No. of Columns

Star Mode = 40, ESC/POS Font A 42 Font B 64

Font Size

12 x 24

Character Set

ANK 95, 32 Int 128 Graphic plus Chinese, Japanese, Korean, Taiwanese

International Code Pages

Star Mode=40. ESC/POS= 10 + 1 blank allowing an additional character page to be added

Bar Codes

Extended barcode functionality - 9 versions / PDF 417, Maxicode Option

Line Spacing

3 mm or 4 mm or programmable

Paper Specifications
Width

Thickness
Roll Diameter
Easy-Load
Paper Out Sensor
Paper Low Sensor
Maximum Print Width

80mm standard, 58mm with paper guide

0.065 ~ 0.085 mm
Up to 83 mm
"Drop-In & Print"
Standard
N/A
80mm paper = 72mm, 58mm paper = 50.8mm

Top Margin

11 mm minimum default

Auto Cutter

Guillotine (Partial Cut Only)

Cover Open Sensor

Yes

Logo Store Capacity

Unlimited

Multiple Copy Support

Supported through futurePRNT Software

Journal Capability

Supported through futurePRNT Software

Label Support

N/A

Power Supply

Internal with power cable supplied (not available on the TSP100PUSB; requires optional PS60A external power supply only when using standard Full Speed 2.0 USB cable)

Drivers Available

Windows XP 32 Bit, Vista 32/64 Bit, Windows 7 32/64 Bit, Server 2008 32/64 Bit, XP Embedded, POSReady 2009, OPOS, JavaPOS, USB Vendor Class, Linux, Mac OS X, StarIO SDK with support for Android and Blackberry

Digitally Signed (WHQL)

Yes

Swappable Interfaces

N/A

Connectivity
TSP100U
TSP100LAN
TSP100 Powered USB
Virtual Serial Port to USB
Virtual Serial Port to LAN

USB 2.0, Full Speed with cable supplied
Ethernet (10/100BaseT, UTP) with cable supplied
Combined Power and USB cable version with Powered USB cable supplied
Supported through futurePRNT Software (TSP100, TSP100PUSB, TSP100LAN)
Supported through futurePRNT Software (TSP100LAN)

Emulation Modes

Star Mode, ESC/POS

Peripheral Drive Circuit

2 circuits, (24V max. 1A), 1 Compulsion input

Power Consumption

Average 1.6 Amp. Printing, 0.1 Amp. Standby

Operating Conditions

Temperature: 5C to 45C
Humidity: 10% - 90% RH (without condensation)

Storage Conditions

Temperature: -20C to 60C
Humidity: 10% - 90% RH

Dimensions
Weight:
Auto Cutter Models
Tear Bar Models

142 x 132 x 204 (w x h x d)mm

TSP143U - 1.73Kg, TSP143PUSB - 1.53Kg, TSP143LAN 1.72Kg
TSP113U - 1.56Kg, TSP113PUSB - 1.37Kg, TSP113LAN - 1.56Kg

Safety Standards

UL, C-UL, TAV, FCC, VCCI, EN55022, CE

Reliability MCBF
Print Head
Auto Cutter

60 Million Lines
100km
1 Million Cuts

Accessories ALL Included with Printer

Installation CD with Drivers and futurePRNT Receipt ReDesign Software, Wall Mount Bracket, Auto Reverse Text Output Software, Vertical Mount Accessory, 58mm Paper Guide, 6ft Interface Cable, 6ft Power Cable, Power Switch Cover
(Power Cable not included with PUSB versions)

Warranty

3 Year Limited Manufacturer Warranty (US and Canada)

Options

Splash Proof Cover (SPC-T100)
Display Stand for Vertical Use (VS-T650)
Kitchen Buzzer (BU01-24-A)
Swap-A-Star Extended Warranty Program (US and Canada)
Extend-A-Star Extended Warranty Program (US and Canada)

HARDWARE FEATURES AND BENEFITS - TSP100 futurePRNT Series

All in One Box

All accessories included in the box with the printer

High Speed

Can print 22 six inch Receipts per Minute

High Reliability

MCBF: 60 Million Lines
Guillotine Auto Cutter: 1 Million Cuts

Small Foot Print

Save precious counter space

Embedded Power Supply

No more power brick, saving even more counter space

"Drop In & Print" Paper Loading

Clamshell design allows for very fast and easy paper loading

Recessed Cable Connections

Helps protect cables from being damaged on the counter top

Horizontal or Vertical Orientation

Use the printer in the orientation that suits you best. An optional eye-pleasing vertical stand (VS-T650) is available for vertical operation.

Wall Mountable

Need more counter space? Create more room by mounting the printer to the wall. The futurePRNT Configuration Utility allows for Text Reversal so the receipt is printed to face the user.

Installation CD Included in Box

No need to download drivers or utilities

Digitally Signed Driver (WHQL)

Certified by Microsoft for worry free operation

futurePRNT Receipt Redesign Software

Customize and brand receipts to keep customers coming back time and time again with professional graphics (logos, coupons, and merge images), word-triggered advertising, and MORE!

futurePRNT SOFTWARE FEATURES AND BENEFITS - TSP100 futurePRNT Series

futurePRNT Configuration Utility

Included on Installation CD, free, simple to use, provides a powerful marketing tool to brand receipts and give customers incentive to return

Add Graphics

Easily add logos, coupons, merge images, and more

Target Marketing

Assign key words to trigger coupons based off of what customers purchase to keep them returning

Text Replacement

Easily replace unwanted text with other words or white space

Enhance Barcodes

Adjust barcode size for professional looking receipts

Print Preview Tool

See an image of your receipt design before you print it, thus saving paper in the receipt design phase

Electronic Journal

Keep an electronic record of all transactions saved directly to your PC organized by date. Save paper by reducing the need for an extra copy

Text Reversal

Reverse the entire receipt for vertical orientation; when the receipt is printed, it will be presented front-side up to the user

OPOS/JPOS Configuration

Very easily configure for OPOS or JPOS use

Virtual Serial Port to USB

Use a USB connection with old software. Create a Virtual Serial Port to support older applications that only communicate via serial. This tool will convert serial commands to USB, which the TSP100 understands

Virtual Serial Port to Ethernet

Use an ethernet connection with old software. Create a Virtual Serial Port to support older applications that only communicate via serial. This tool will convert serial commands to ethernet, which the TSP100LAN understands

* The Virtual Serial Port to Ethernet is available only on the TSP100LAN printer

OPTIONS AND ENHANCEMENTS - TSP100 futurePRNT Series

WiFi Power Pack

The Wifi Power Pack is designed to make any Star LAN interface printer "wireless". Powered by the printer's cash drawer kick port, the WiFi Power pack avoids additional power outlet, eliminating the possibility of tangled cables. The WiFi Power Pack includes a DK-USB power module and a TP Link wireless router.

Part Number: 99250000

Splash Proof Cover
SPC-T100

The Splash Proof Cover helps to protect the TSP100 from liquid and airborne debris in harsh environments such as kitchens. It easily locks in place over the printer.

Part Number: 39591100

Vertical Stand
VST-650

Use the specially designed Vertical Stand when utilizing the TSP100 in vertical orientation. The Vertical Stand provides a clean surface facing the customer, which also creates room for advertising.

Part Number: 39590530

Kitchen Buzzer / Ticket Alarm
BU01-24-A

The Kitchen Buzzer is designed to connect directly to the RJ11 port on the back of the printer. When a print job is sent to the TSP100, the buzzer will sound off. This is beneficial for high noise environments like kitchens to alert cooks that orders have been sent to them.

Part Number: 39594000

Extend-A-Star Extended Warranty

The Extend-A-Star Extended Warranty Program provides full bumper-to-bumper coverage available for a selectable span of 3 or 4 years.

Swap-A-Star Extended Warranty

The Swap-A-Star Extended Warranty Program provides next business day replacement coverage available for a selectable span of 3 or 4 years.
