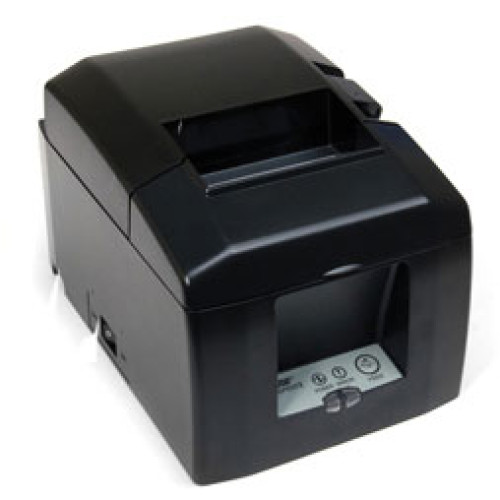

Star TSP650ii Receipt Printer

SPECIFICATIONS - TSP650II

Printer Method

Direct Line Thermal

Print Speed

60 Receipts Per Minute (300 mm/sec)

Printer Case Color

Gray

Print Resolution

203 dpi

No. of Columns

48 / 64

Font Size

9 x 24

Character Set

ANK 95, 32 Int 128 Graphic

International Code Pages

Star Mode=40. ESC/POS= 6 + 1 blank allowing an additional character page to be added

Bar Codes

9 versions / PDF 417 Option

Line Spacing

3 mm or 4 mm or programmable

Paper Specifications
Width

Thickness
Roll Diameter
Easy-Load
Paper Out Sensor
Paper Low Sensor
Maximum Print Width

80mm standard, Adjustable 58mm with paper guide

0.053 ~ 0.085 mm
Up to 83 mm
"Drop-In & Print"
Standard
Standard
80mm paper = 72mm, 58mm paper = 52mm

Top Margin

11 mm or 13 mm minimum default

Auto Cutter

Guillotine (Partial Cut Only)

Cover Open Sensor

Yes

Logo Store Capacity

2 Mbit Flash ROM with Graphic Management Software

Flash ROM

16 Mbit

Multiple Copy Support

Available through Star Raster Driver

Power Supply

PS60A External Power Supply Included

Drivers Available

Windows XP 32 Bit, Vista 32/64 Bit, Windows 7 32/64 Bit, Server 2008 32/64 Bit, XP Embedded, POSReady 2009, OPOS, JavaPOS, USB Vendor Class, Linux, Mac OS X, StarIO SDK with support for iOS, Android and Blackberry

Swappable Interfaces

Yes

Connectivity

Swappable Serial, Parallel, USB, Ethernet; Bluetooth sold as TSP650II BTi

Emulation Modes

Star Mode, ESC/POS

Peripheral Drive Circuit

2 circuits, (24V max. 1A), 1 Compulsion input

Power Consumption

Average 1.8 Amp. Printing, 0.15 Amp. Standby

PS60A External Power Supply

Operating Conditions

Temperature: 5C to 45C
Humidity: 10% - 90% RH (without condensation)

Storage Conditions

Temperature: -20C to 60C
Humidity: 10% - 90% RH

Dimensions
Weight:

142 x 132 x 202 (w x h x d)mm
1.72 kg

Safety Standards

UL, C-UL, TA¬V, FCC, VCCI, EN55022, CE, Gost

Reliability MCBF
Print Head
Auto Cutter

60 Million Lines
100km
2 Million Cuts

Included with Printer

Installation CD with Drivers and Configuration Utility, Wall Mount Bracket, Vertical Mount Accessory, 58mm Paper Guide, Power Switch Cover, Set Up Guide, Start Up Paper Roll, PS60A External Power Supply

Warranty

3 Year Limited Manufacturer Warranty (US and Canada)

Options

Splash Proof Cover (SPC-T100)
Display Stand for Vertical Use (VS-T650)
Kitchen Buzzer (BU01-24-A)
Swappable Interfaces
24V Mobile Power Supply
Swap-A-Star Extended Warranty Program (US and Canada)
Extend-A-Star Extended Warranty Program (US and Canada)
