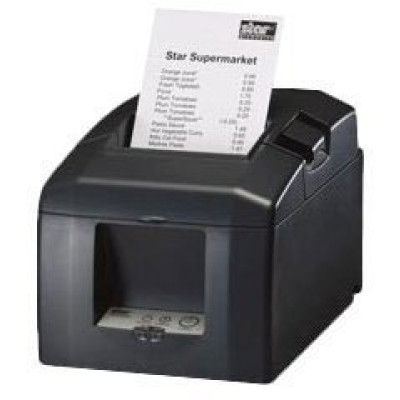

Star TSP654SK Receipt Printer

The Star TSP654SK features low cost and high performance combined with the ability to work effectively in any environment, plus the ability to use liner-free labels. Out of the box, the TSP654SK Liner-Free Printer can easily be configured and features all interface options including USB and Ethernet due to its plug-in modules. New vertical mounting stand and splash proof cover options help make it one of the most reliable POS printers in the world. The TSP654SK ships with Installation CD (Printer Driver / Manuals), setup guide, wall mount bracket, vertical mount pads, 58mm paper guide, power switch cover and start-up paper roll. With its "drop in and print" paper loading, small footprint and reliable guillotine cutter, the TSP654SK is a welcomed addition to POS systems.

See all options

Specs & Info
All Options

TSP654SK Specs (pdf)

SPECIFICATIONS – TSP650
Printer Method	Direct Line Thermal
Print Speed	30 Receipts Per Minute (150 mm/sec)
Printer Case Color	Putty or Gray
Models Available	Tear Bar or Auto Cutter
Print Resolution	203 dpi
Two Color Print Capability	Red & Black / Blue & Black / Green & Black (Two color thermal paper required)
No. of Columns	48 / 64
Font Size	9 x 24
Character Set	ANK 95, 32 Int 128 Graphic
International Code Pages	Star Mode=40. ESC/POS™= 6 + 1 blank allowing an additional character page to be added
Barcodes	9 versions / PDF 417 Option
Line Spacing	3 mm or 4 mm or programmable
Paper Specifications Width Thickness Roll Diameter Easy-Load Paper Out Sensor Paper Low Sensor Maximum Print Width	80mm standard, Adjustable 58mm with paper guide 0.065 ~ 0.085 mm Up to 83 mm "Drop-In & Print" Standard Standard 80mm paper = 72mm, 58mm paper = 52mm
Top Margin	13 mm minimum default (3mm selectable via Memory Switch Utility)
Auto Cutter	Guillotine (Partial Cut Only)
Cover Open Sensor	Yes
Logo Store Capacity	2 Mbit Flash ROM with Graphic Management Software
Flash ROM	16 Mbit
Multiple Copy Support	N/A
Journal Capability	N/A
Label Support	N/A
Power Supply	External; Requires PS60A External Power Supply
Drivers Available	Windows™ 2000/XP/Vista™, WinCE, WePOS, Windows 2003 Server, OPOS™, JAVA POS™, Linux CUPS Support™ , MAC OSX™, POS.Net, USB Vendor Class, Windows 98/ME/NT4 (download only)
WHQL	N/A
Swappable Interfaces	Yes
Connectivity	Serial, Parallel, USB, or Ethernet
Emulation Modes	Star Mode, ESC/POS™
Peripheral Drive Circuit	2 circuits, (24V max. 1A), 1 Compulsion input
Power Consumption	Average 1.8 Amp. Printing, 0.15 Amp. Standby Requires PS60A External Power Supply
Operating Conditions	Temperature: 5ºC to 45ºC Humidity: 10% - 90% RH (without condensation)
Storage Conditions	Temperature: -20ºC to 60ºC Humidity: 10% - 90% RH
Dimensions Weight: Auto Cutter Model Tear Bar Model	142mm(W) x 202(D) x 132(H) mm TSP654 – 1.72 kg TSP651 – 1.56 kg
Safety Standards	UL, C-UL, TüV, FCC, VCCI, EN55022, CE, Gost
Reliability MCBF Print Head Auto Cutter	60 Million Lines 100km 1 Million Cuts
Included with Printer	Installation CD with Drivers and Configuration Utility, Wall Mount Bracket, Vertical Mount Accessory, 58mm Paper Guide, Power Switch Cover, Set Up Guide, Start Up Paper Roll
Warranty	3 Year Limited Manufacturer Warranty (US and Canada)
Options	External Power Supply (PS60A) Splash Proof Cover (SPC-T100) Display Stand for Vertical Use (VS-T650) Kitchen Buzzer (BU01-24-A) Swappable Interfaces 24V Mobile Power Supply Swap-A-Star Extended Warranty Program (US) Extend-A-Star Extended Warranty Program (US and Canada)
