A newer version of this item is available.
It is replaced by the Zebra DS3678-SR.

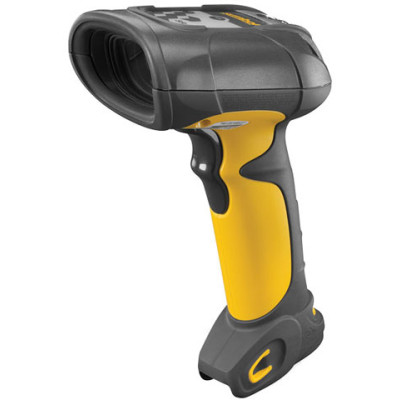

The Motorola DS3578 Series of rugged, omnidirectional digital scanners bring comprehensive, high-performance data capture to harsh industrial environments, plus integrated Bluetooth provides cordless freedom, improving productivity.
Ability to read both 1D and 2D barcodes, and capture and transfer images
Powerful 624 MHz processor, fast sensor shutter speed and patent pending fast pulse illumination
Government grade security: FIPS 140-2 validation
IUID-enabled (DS3578-DP only)
EZ-DPM software for Direct part Mark capture (DS3578-DP only)
Ability to capture high density barcodes (DS3578-HD only)
Integrated Bluetooth Class II, Version 2.1
Rugged design: IP65-rated sealing, withstands multiple 6.5 ft./2 m drops to concrete
Multiple on-board interfaces and universal cable set

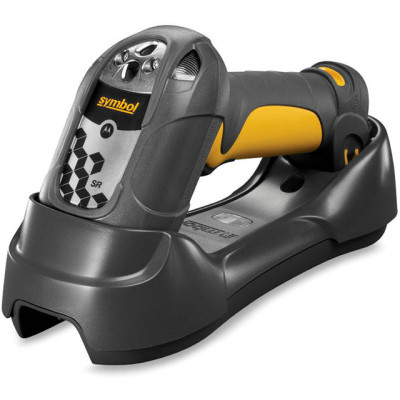

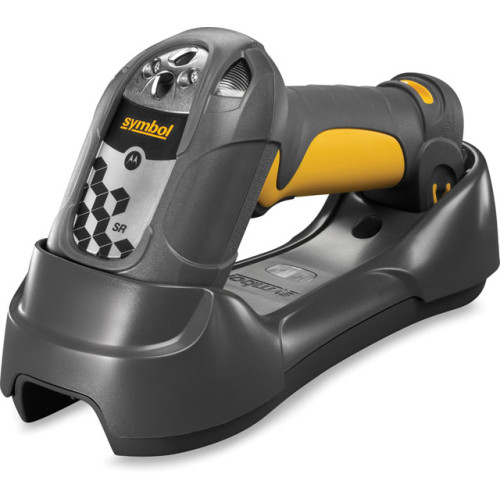

DS3578, Rugged Handheld 2D Array Imaging Cordless Bluetooth Scanner With (Part# STB3578-C0007wr) Radio/Charging Cradle, Universal Power supply, US AC Line Cord, and (Part# Cba-U01-S07zar) 7 ft. Straight USB Cable
DS3578-HD, USB Kit - 2D Imager - High Density - Cordless - FIPS Security Encryption - Includes Charging and Communication Cradle - Includes USB cable - Includes Power supply - Does Not Include AC Line Cord (Part# 50-16000-182R)
DS3578-HD, Rugged Handheld 2D Array Imaging Cordless Bluetooth Scanner With (Part# STB3578-C0007wr) Radio/Charging Cradle, Universal Power supply (Without Line Cord), and (Part# Cba-U01-S07zar) 7 ft. Straight USB Cable
DS3578, Cordless Rugged Scanner, Standard Bluetooth With Fips Security Encryption, High Density Focus WVGA Sensor With Dpm Software, Multi-Interface, Yellow/Twilight Black. Scanner Only Must Purchase Cradle (Part# STB3578-Cf007wr), USB Cable (Part# Cba-U01-S07zar), Power supply (Part# 50-14000-266r) and AC Line Cord (Part# 50-16000-182r). See accessories.
If you are scanning stacked or 2D barcodes in a rugged environment the DS3578 is one of the most popular and cost effective cordless models available. It is a great unit when you need freedom of movement when checking-in UPS shipments, scanning component labels on an assembly line, or scanning event tickets outdoors. Since the DS3578 is cordless and a 2D imager is can take the place of several other devices in one convenient unit. For any application that needs to read a variety of codes, have freedom from a cable, and handle drops and tumbles, the Motorola DS3578 performs at a cost that will not break your budget.
Ability to read both 1D and 2D bar codes, and capture and transfer images Increases productivity by providing one device that can read all industry-standard bar codes and capture images.
Powerful 624 MHz processor, fast sensor shutter speed and patent pending fast pulse illumination Superior performance on 1D and 2D bar codes, improving productivity in a wide variety of applications.
Government grade security: FIPS 140-2 validation Meets the most stringent federal government and industry security regulations
IUID-enabled (DS3578-DP only) Ability to understand IUID constructs, and automatically separate and send the required information to your application.
EZ-DPM software for Direct part Mark capture (DS3578-DP only) Enhances quality processes and improves lifetime product traceability with this highly advanced DPM software.
Ability to capture high density bar codes (DS3578-HD only) Increases productivity by enabling users to read high density 2D bar codes in addition to all industry-standard bar codes.
Integrated Bluetooth Class II, Version 2.1 Cable-free convenience; secure wireless transmissions; reduces repairs due to cable failure.
Rugged design: IP65-rated sealing; withstands multiple 6.5 ft./2 m drops to concrete Ensures maximum reliability with less downtime.
Multiple on-board interfaces and universal cable set Ensures flexible connectivity with different hosts; provides investment protection.
Exceptional motion tolerance; omni-directional scanning Enables extraordinary scanning speed for all bar codes, increasing throughput and productivity.
7-to-1 pairing Pair seven scanners to a single cradle, greatly reducing cradle costs (scanners and cradle must be FIPS validated).
Supports 123Scan2 scanner configuration tool and RSM (Remote Scanner Management) Enables rapid and easy customized set-up; enables centralized management, lowering IT expenses.
