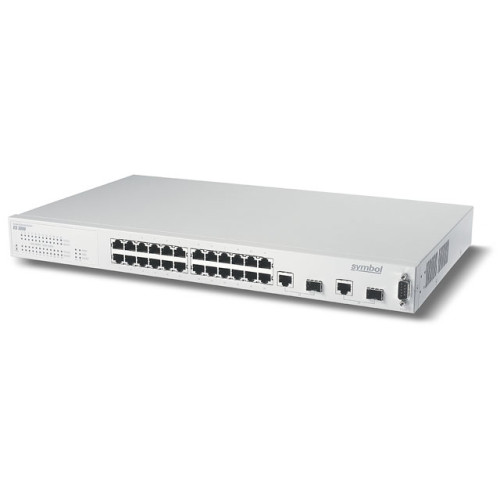

Symbol ES 3000 Wireless Controller

Symbol ES 3000 Wireless Controller

The Symbol ES 3000 offers a single platform with Ethernet connectivity and managed Power-over-Ethernet (PoE), delivering the simplicity and convenience of single vendor sourcing for Ethernet and Wireless switches. PoE greatly reduces the cost of installing power sources for Access Ports/Points, and robust PoE management capabilities simplify troubleshooting and management of PoE devices. The ES 3000 offers remote control and management, allowing hi-tech infrastructure rollout in a low-tech environment without the need for local management, reducing TCO. The ES 3000 features and functionality combine to effectively reduce the capital expenditures and operational costs associated with managing wireless networks.

Designed for Enterprise Wireless Networking Wireless Switch

The ES 3000 from Symbol Technologies is the ideal enabler for wirelessswitching infrastructure environments. This standards-based FastEthernet/Gigabit Ethernet switch provides the reliability,security and scalability enterprises demand, while alsointegrating the features required to achieve optimal performanceand operational efficiency in your wireless network. The ES 3000offers a cost-effective solution with all the features requiredfor a wireless solution, leading to a lower total cost ofownership.

Designed to Simplify Wireless Networking— and Lower Costs

Allwireless infrastructure requires Ethernet connectivity. The ES 3000 offers a single platform with Ethernet connectivityand managed Power-over-Ethernet (PoE), delivering the simplicityand convenience of single vendor sourcing for Ethernet andWireless switches. PoE greatly reduces the cost of installingpower sources for Access Ports/Points, and robust PoE managementcapabilities simplify troubleshooting and management of PoEdevices. The ES 3000 offers remote control and management,allowing hi-tech infrastructure rollout in a low-tech environmentwithout the need for local management, reducing TCO. The ES 3000features and functionality combine to effectively reduce thecapital expenditures and operational costs associated withmanaging wireless networks.

The Right Features for a Wireless Switch Network Deployment

Virtual LAN (VLAN) Support

The ES 3000 provides IEEE 802.1Q VLAN support for full implementation ofthe Virtual AP feature, enabling segmentation, security andmanageability for wired and wireless enterprise access. WiredVLANs must first be created on the network to leverage the WS 5000Wireless Switch's Virtual AP feature, which segregates broadcastand multicast traffic on the air to maximize bandwidth and mobiledevice battery life.

Quality of Service (QoS)

The ES 3000 offers multilayer Quality of Service features, including theIEEE 802.1p Class of Service (CoS) and Differentiated Services(DiffServ) standards. This functionality ensures appropriateallocation of bandwidth throughout the enterprise to supportmission-critical traffic and optimize performance of applications,such as latency sensitive video or Voice-over-IP. QoS featuresprovided include classification, reclassification policing,marking, queuing, and scheduling of incoming packets, as well asqueuing and scheduling of outgoing packets.

  • Packet Classification
  • —Packet classification enables distinguish between various traffic flows as based on Layer 2 and Layer 3 QoS fields.
  • QoS Queues—The ES 3000 supports four egress queues per port,providing the network administrator with additional granularity inassigning priority levels for the various applications on the network.Scheduling and congestion control of these queues are managed via aWeighted Round Robin (WRR) and Strict Priority Queuing algorithm.
  • Rate Limiting/Rate Policing—Rate limiting enables the properallocation of bandwidth, based on criteria such as Source MAC address,Destination MAC address, Source IP address, Destination IP addressand/or TCP/UDP port number. Rate limiting allows the definition of tworates: a guaranteed minimum bandwidth and a second burst size.

Resilience

Robustfeatures enable the ES 3000 to deliver the high availability andnetwork scalability required in enterprise networks. Support forstandards based IEEE 802.1d Spanning-Tree Protocol (STP), IEEE802.1s Multiple Spanning Tree Protocol (MSTP) and IEEE 802.1wRapid Spanning Tree Protocol (RSTP) enables redundant links, andfast convergence in case of network failures. Spanning treeprotocol dynamically incorporates new paths to destination in caseof link failures. Multiple Spanning Tree allows the networkadministrator to create multiple instances of Spanning Tree whileRapid Spanning tree provides for a faster recovery than ordinarySpanning tree in case of a link failure.

The ES 3000 also provides IEEE 802.3ad (Link Aggregation) which allowsbundling of links between two switches. This allows networktraffic to use the aggregate link as a fat-pipe. In caseof failure of any link in the group, the remaining links continueto transmit traffic.

Network Security

A rangeof security features is supported by the ES 3000 to ensure thatdata privacy is protected and network service isuninterrupted. Access Control Lists (ACLs) guard against attackssuch as denial-of-service by restricting access to specificportions of the network, while maintaining forwarding performanceby performing lookups in hardware. Packets can be denied based onsource and/or destination MAC addresses, IP addresses, orTCP/UDP ports. To provide port security, the ES 3000 offers IEEE802.1x port-based authentication, which limits access to Ethernetports, effectively reducing the risks of rogue client and networkdevices, such as wireless access points or hubs.

Performance

The ES 3000 provides line rate throughput at minimum packet sizes (4.4 Gbps/6.6 Mpps throughput).

Intelligent, Managed Power-over-Ethernet

The ES 3000 provides standards based IEEE 802.3af Power-over- Ethernet(PoE), driving network and operational costs down by eliminatingthe need to run power to every WLAN Access Port/Point. And theability to remotely control and manage PoE further reducesoperational costs as well as delivers a higher level of controlover the wireless network. PoE management capabilities include theability to configure power prioritization per Ethernet port,ensuring the adequate allocation of power to devices that providecritical services. In addition, the ability to remotely reset PoEdevices simplifies troubleshooting, eliminates the need fortechnical experts at every location, and enables networkadministrators to remotely schedule the power down of wirelessaccess points/ports after normal operating hours or according toenterprise policy to ensure complete security.

Dynamicpower allocation enables optimal power budgeting. The ES 3000calculates the exact amount of power each PoE device is utilizing,dynamically allocating the remaining available power in a moreefficient manner than the power ranges utilized in traditional PoEclassification, which rely on information provided by each PoEdevice.

The ES 3000 also provides full PoE visibility. Any change in the statusof the power budget and PoE devices triggers a trap or messagethat can be sent to management tools, ensuring an always-availableand accurate view of all PoE devices.

One Complete Management Solution for Wireless Infrastructure

Comprehensive Wireless Network Management

SymbolEnterprise Mobility Manager (SEMM) software provides aconsolidated view of the entire wireless infrastructure,enabling deployment, monitoring, enhanced configuration andmanagement of all elements—ES 3000 Ethernet Switches, WS 5000Wireless Switches, and all associated Access Ports (AP 100s and AP300s)— from a single central location such as a Data Center orNetwork Operations Center.

SNMP-based Network Management

Acomprehensive set of Management Information Bases (MIBs) for layertwo switches enables the ES 3000 to support SNMP, enablingstandard enterprise network management tools such as HP OpenView,IBM NetTivoli and CA Unicenter to perform basic monitoring,configuration and fault detection.

Web and Command Line Interface (CLI) Management

The ES 3000 offers a variety of means for configuration and deployment. Asimple Web based GUI interface steps the network administratorquickly and easily through the tasks of configuring and monitoringthe ES 3000. The CLI provides another standard intuitive interfaceto the switch. In addition, rollout of configuration to multipleEthernet switches is simplified with a DHCP boot option, whichensures consistent configuration across all switches in theenterprise network.

Features

Benefits

24 port 10/100 Base-T + 2 GE (Copper standard/Fiber optional)

Provides ports for wired and wireless devices in addition to GE uplink ports

IEEE 802.3 af standards-based PoE

Ensures that no damage occurs to end-equipment

Dynamically manages power budgets

Reduces operational expenditure with remote management of hard to reach PoE devices such as access points/ports

Single power inlet into wiring closet allows a single UPS connection to power the Ethernet switch

?

IEEE 802.1Q VLANs

Provides segmentation of Layer 2 broadcast domains, leading to networks with better security, performance, and manageability

Quality of Service with

Providesclassification, marking, rate policing, and IEEE 802.1p and Diffservqueuing based on IEEE 802.1p bits or Diffserv markings in the packet

 IEEE 802.1d Spanning Tree

Ensures that no loops exist in a meshed network without the need for extensive configuration

Multiple Spanning Tree IEEE 802.1s

Allows theexistence of a spanning tree instance for a defined set ports, enablingseveral instances to exist in a single network

Rapid Spanning Tree IEEE 802.1w

Ensuresmuch faster network convergence in the event of a change in networktopology through the improvement of Spanning Tree convergence time

GARP VLAN Registration Protocol (GVRP)

Enablesdynamic exchange of VLAN configuration information with other GVRPswitches and dynamically creation and management of VLANs on switchesconnected through 802.1Q trunk ports

Link Aggregation IEEE 802.3ad

Providesthe ability to aggregate bandwidth across multiple physical links ofthe same type (FE or GE), forming a Link Aggregated Group; in case oflink failure(s) within the group, remaining links can continue to carrytraffic, providing a resilient bandwidth between two sites

IGMP Snooping

Enables themonitoring of Layer 3 multicast traffic even though the ES 3000 is alayer 2 switch; enables the switch to forward multicast traffic to onlythose ports that contain members for the intended multicast group,resulting in much better switch performance

IEEE 802.1x

Enables only authenticated clients to transmit data traffic, ensuring that rogue devices cannot log on to the network

Port Mirroring

Provides a mechanism to monitor or snoop "interesting traffic" flowing through the switch

Security Filtering or Access Control Lists

Enablesfiltering of traffic flowing through the switch based on user policy,including MAC address, source IP address, destination IP address andprotocol type; user can chose to permit or deny any traffic flowingthrough the switch

SNMP ver 2

EnablesSNMP based management tools to monitor, troubleshoot and configure theswitch through comprehensive support for a standard set of Layer 2switch MIBs

Flow control IEEE 802.3xy

Sends pause frames when switch congestion occurs

CLI/Web/Menu based

Provides avariety of mechanisms to interface with the switch including a detailedyet simple to use Web based interface and context based intuitive CLIsupport

DHCP client/Bootp, TFTP, Telnet

Provides standard tools for addressing and management of the switch

ES 3000 Specification Highlights

Physical Characteristics

Dimensions:

With mounting brackets:
1.73 in. H x 19 in. W x 10.08 in. D
44 mm (1RU) H x 482.6 mm W x 256 mm D
Without mounting brackets:
1.73 in. H x 17.3 in. W x 10.08 in. D
440.0 mm W x 44 mm (1RU) H x 256 mm D

Weight:

POE version 8.95 lbs./4.06 kg (with rack brackets)
POE version 8.80 lbs./3.99 kg (without rack brackets)
Non-POE version 7.90 lbs./3.58 kg (with rack brackets)
Non-POE version 7.75 lbs./3.52 kg (without rack brackets)

Performance Characteristics

Throughput:

4.4Gbps

Packet Rate:

6.6Mpps based on 64 byte packets

Performance:

Line rate packet forwarding

Part number and MTBF:

ES-3000-PWR-10-WW 140,000 hours
ES-3000-10-WW 355,000 hours
FIBER-3000-1S-WW 1,125,00 hours

User Environment

Operating Temperature:

32° to 104°F/0°C to 40°C

Operating Humidity:

10%-85% (w/o condensation)

MAC Addresses:

8000 MAC addresses

LED:

Status indicator for Power; Per-port status LEDs link, activity, POE

Mounting:

Racking mounting brackets for 19-inch rack

Management:

SNMP v1/v2; MIB II; Traps; CLI; HTTP GUI based

Max. Power Consumption:

100 VAC-240VAC, 50Hz/60Hz, 3.5A (PoE)
100 VAC-240VAC, 50 Hz/60Hz, 1.5A (non POE)

Regulatory

Electrical Safety:

UL 60950, Canada CSA C22.2 no. 60950, EU EN 60950, International IEC 50950, Japan DENAN, FCC part 15

Warranty

5 year limited lifetime warranty

Extended Details
Refine Your Options
  1. ES-3000-PWR-10-WW - Symbol ES 3000 Ethernet Switch

    ES 3000, Ethernet Switch: L2, 24 + 2 ports and Power over Ethernet (PoE).
  2. ES-3000-PWR-USCORD - Symbol ES 3000 Ethernet Switch

    ES 3000, Ethernet Switch with US Power cord.
  3. ES-3000-USCORD - Symbol ES 3000 Ethernet Switch

    ES 3000, Ethernet Switch non-PoE, with US Power cord.
