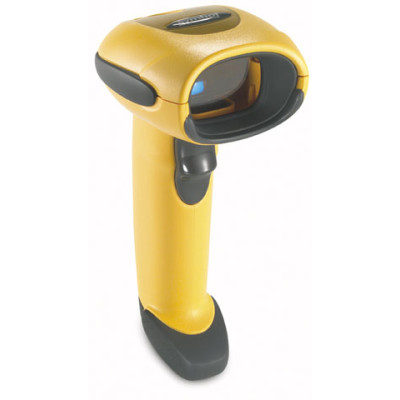

Symbol LS3008 Scanner

Symbol LS3008 Scanner

The LS3008 rugged handheld scanner delivers affordable performance and durability in a lightweight ergonomic design for superior productivity in light industrial, health care and retail environments. Designed to deliver maximum reliability and uptime, the LS3008's single board construction eliminates multiple circuit boards and connecting ribbon cables the most common point of failure in scanners.
  • Liquid Polymer Scan Technology eliminates friction and wear, providing superior durability and reliability
  • Wide working range from 0 to 19 inches provides comfortable, intuitive scanning
  • Superior motion tolerance reduces fatigue and increases productivity by enabling users to scan barcodes in rapid succession without delay
  • Innovative multi-line rastering scan pattern eliminates the need for exact aim and positioning, and captures even tiny, stacked and poorly printed barcodes
  • Remote Scanner Management (RSM) support dramatically reduces management effort and cost
  • Optional Intellistand provides the versatility to switch between hands-free and handheld modes to obtain maximum productivity

Value class rugged scanner delivers affordable durability

The LS3008 rugged handheld scanner offers affordable performance and durability in smaller manufacturing and light industrial environments. Built for all day every day use, the LS3008 provides the highest level of uptime performance in its class. Single board construction eliminates the common points of failure associated with ribbon cables that connect multiple boards. The patented Liquid Polymer Scan Technology is frictionless and will not wear out. The scanner is built to withstand everyday drops; offers a scratch-resistant, tempered glass exit window for high-quality scanning day in and day out; and can be safely used in dusty environments. In addition, the scanner offers the sealing required to endure wipe downs, and can even be sanitized in clean manufacturing and hospital environments.

Superior functionality for superior productivity

This easy-to-use, lightweight and ergonomic device requires virtually no training and is packed with productivity enhancing features. Objects can be comfortably scanned at any angle the innovative multi-line rastering scan pattern eliminates the need for exact aim and positioning of the scanner. Users can move rapidly from one bar code to another without delay or rescanning, due to superior motion tolerance. With optimized optics, the LS3008 helps deliver first time, every time scanning even on damaged and poorly printed bar codes. And the ability to automatically switch between handheld and hands-free modes minimizes hand motion and user fatigue, while maximizing worker productivity.

Low total cost of ownership

In addition to the productivity-enhancing features you need to keep business moving, the LS3008 offers a low total cost of ownership. The rugged design significantly reduces device downtime. Support for Remote Scanner Management (RSM) enables you to discover, provision and upgrade devices from a central remote location, dramatically reducing management time and costs. Multiple on-board interfaces provide true plug-and-play simplicity with your host system today, as well as tomorrow.

And since even rugged devices require a support plan, Symbol's Service from the Start Advance Exchange Support contract provides next-business-day delivery of a replacement device for maximized uptime and productivity. This offering also includes Symbol's unique Comprehensive Coverage, which extends normal wear and tear to cover accidental damage to scan elements, exit windows, and other internal and external components at no extra charge significantly eliminating your unforeseen repair expenses.

Features Benefits
Single board construction Eliminates the most common point of failure ribbon cables between multiple circuit boards
Drop specification: 6.5 ft./2m drops to concrete at room temperature Maximizes reliability and uptime
IP53 sealing Can be safely wiped down and sanitized for clean manufacturing and hospital environments
Liquid Polymer Scan element with lifetime warranty Eliminates friction and wear for superior durability and reliability
Wide working range from 0 to 19 inches Enables comfortable, intuitive scanning
Ability to read down to 3 mil bar codes Enables effortless scanning of smaller bar codes
Scratch resistant tempered glass exit window Delivers continuously reliable scanning
Superior motion tolerance Enables scanning of bar codes in rapid succession without delay; reduces fatigue and increases productivity
Multi-line rastering scan pattern Delivers superior scanning performance; eliminates need for exact aim and positioning; captures even tiny, stacked and poorly printed bar codes
Multiple onboard interfaces including RS232, USB and KBW (keyboard wedge) Simplifies installation and integration; ensures compatibility with host/POS today and tomorrow
Remote Scanner Management (RSM) support Discover, provision and upgrade devices from a central remote location; dramatically reduces management effort and costs
Optional Intellistand for hands-free mode Ability to switch between hands-free and handheld modes for maximum productivity and comfort

LS3008 Specification Highlights

Physical Characteristics:
Dimensions: 6.7 in. H x 3.7 in. L x 2.7 in. W
17 cm H x 9.3 cm L x 6.8 cm W
Weight: Approximately 6.4 oz./181 gm
Voltage and Current: 5 +/- 10%VDC @ 140 mA (Stand by: <35 mA)
Color: Yellow/Twilight Black
Performance Characteristics:
Light Source: 650 nm laser diode
Motor Frequency: 50Hz
Decode Rate: 200 decodes per second

+/- 35; +/- 60; +/- 60

Nominal Working Distance: 13 mil (100% UPC/EAN): 0 to 19 in. (48.25 cm)
5 mil (Code 39): 1.25 to 5.25 in. (3.17 to 13.33 cm)
Print Contrast: 25% minimum reflectance
Motion Tolerances: Horizontal velocity: 200 in. (508 cm)/second
Vertical velocity: 200 in. (508 cm)/second
Angular velocity: 200 in. (508 cm)/second
Decode Capability:

UPC/EAN and with supplementals, Code 39, Code 39 Full ASCII, Tri-optic Code 39, RSS Variants, UCC/EAN 128, Code 128, Code 128 Full ASCII, Code 93, Codabar (NW1), Interleaved 2 of 5, Discrete 2 of 5 MSI, Codell, IATA, Bookland EAN, Code 32

Interfaces Supported: RS-232C (Standard, Nixdorf, ICL, & Fujitsu); IBM 468x/469x; Keyboard Wedge; USB (Standard, IBM SurePOS, Macintosh); Laser/Wand Emulation; In addition Synapse Adaptive Connectivity allows for connectivity to all of the above plus many non-standard interfaces
User Environment:
Operating Temperature: 32° to 122° F/0° to 50° C
Storage Temperature: -40° to 158° F/-40° to 70° C
Humidity: 5% to 95% non-condensing
Drop Specification:

Withstands multiple 6.5 ft./2 m drops to concrete at room temperature; 6 ft/1.825 m drops to concrete at all other operating temperatures

Environmental Sealing: Sealed at IP53 against dust and water
Ambient Light Immunity:

Immune to normal artificial indoor and natural outdoor (direct sunlight) lighting conditions

Electrical Safety: Certified to UL1950, CSA C22.2 No. 950, EN60950/IEC950
EMI/RFI: FCC Part 15 Class B, ICES-003 Class B, European Union EMC Directive, Australian SMA
Laser Safety: CDRH Class II, IEC Class 2
Extended Details
Refine Your Options
Shop By
Shopping Options
Product Condition
  1. New (2)
  2. Refurbished (1)
Included Cables
  1. Scanner Only - No Cable (1)
  2. USB (1)
  1. LS3008-SR20005ZZR-REFURB - Symbol Bar code Scanner

    REFURBISHED/USED/REBUILT SCANNER ONLY, 1D Laser. Cables must be purchased separately. See accessories. Includes 90 day warranty. Expect 1+ week lead time. Limited supplies available.
    Price: $106.30
    This item is temporarily not in stock but it is available for ordering
  2. LS3008-SR20005ZZR - Symbol LS3008 Bar code Scanner

    Scanner Only - 1D Laser - Cables and accessories sold separately
  3. LS3008-SR20001ZZR - Symbol LS3008 Bar code Scanner

    Color: Yellow. Scanner Only - Cables and accessories must be purchased separately. These include USB (Part# CBA-U01-S07ZAR), PS/2 (Part# CBA-K01-S07PAR), or RS-232 Serial cables (Part# CBA-R01-S07PAR) and a Power supply (Part# PWRS-14000-253R).
