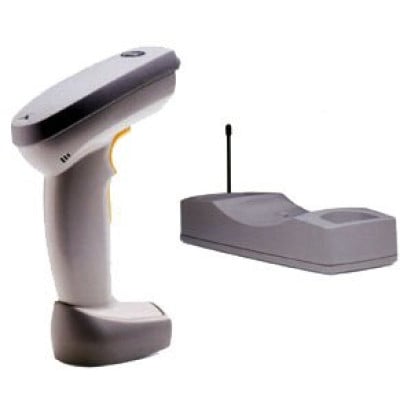

Symbol LS 4074 Barcode Scanners

Symbol LS 4278 A newer version of this item is available.
It is replaced by the Symbol LS 4278.

Cable-free for Ease of Use and Improved Performance

The LS 4071 scanner from Symbol Technologies offers cableless scanning operation for greater flexibility mobility and user friendliness. Ergonomically designed with the operator in mind the LS 4071 also provides excellent scanning performance superior to competitive corded scanners. Plus it's a member of Symbol's LS 4000 family of high-performance scanners. The LS 4071's superior ergonomic design provides the best possible user comfort even over extended periods of use. Its unique two-finger trigger makes scanning easier and faster. The LS 4071 is also extremely light and mobile so operators can easily scan barcodes on heavy or bulky items. And there's no cord to get caught or tangled, without a cord in the way operators won't knock over items while reaching for hard-to-get-at barcodes. Another plus that comes from not being tethered is that the LS 4071 can scan items in shopping carts so customers don't have to lift heavy items up to the counter.
LS 4074 Options
Symbol LS 4074 (LS4074-I3US-7750)
LS 4074, Cordless Scanner (916 MHz, Class II, US model only, United States, Canada, Synapse Adapter Cable 6 ft/2m 25-17821-20 and Series A Synapse, RSS)
Symbol LS 4074 (LS4074-I3US-7705)
LS 4074, Cordless Scanner (916 MHz, Class II, US model only, United States, Synapse Adapter Cable 6 ft/2m 25-17821-20, Base and RSS) - Color: Dark gray
Symbol LS 4074 (LS4074-I3US-7700)
LS 4074, Cordless Scanner (US Version, RSS - Scanner, Synapse, No STI Cable and No Power supply) - Color: Dark gray
Symbol LS 4074 (LS4074-I3US-0500)
LS 4074, Cordless Scanner (US Version, RS-232, RSS and 110V)
Symbol LS 4074 (LS4074-I1US-7705)
LS 4074, RF Cordless Scanner (Base, PS/2 Synapse Cable and Adapter Cable)
Symbol LS 4074 (LS4074-I1US-7704)
LS 4074, RF Cordless Scanner (Base, XT-AT Synapse Cable and Adapter Cable)
Symbol LS 4074 (LS4074-I1US-7700)
LS 4074, RF Cordless Scanner (Base and Synapse Adapter Cable)
Symbol LS 4074 (LS4074-I1US-0500)
LS 4074, RF Cordless Scanner (Base and 9-Pin Female)
Symbol LS 4071 (LS4071-I1US)
LS 4071, Scanner (with 916 MHz US Radio)
Symbol LS 4075 (LS4075-I1US-0200)
LS 4075, RF Cordless Scanner (IBM 46XX and Port 9 Direct Connect Cable)
Symbol LS 4074 (LS4074-I1US-0400)
LS 4074, RF Cordless Scanner (Base and 25-Pin Female)
Symbol LS 4074 (LS4074-I1US-0100)
LS 4074, RF Cordless Scanner (Base and Direct Connect Cable)
Recommended Accessories
Motorola (23844-00-00R)
US AC Line Cord - 7.5' Length - Compatible with power supplies (Part# KT-14000-148R), (Part# 50-14000-241R), and (Part# PWRS-14000-148R)
In Stock: Ships Today
$15.70
+ Add to Quote
Motorola (50-16000-182R)
Line Cord - 6' Ungrounded - Compatible with 2-wire, ungrounded power supplies
In Stock: Ships Today
$12.80
+ Add to Quote
Global Technology Systems Symbol Replacement Battery (H4071-M)
Symbol Replacement Battery, LS4070 Battery Replacement. OEM Part Numbers: (Part# 21-19022-01), NiMH, 700 mAh, 6V
Ships in 3-5 Days
$27.00
+ Add to Quote

Symbol LS 4074 Details

The New RF Cordless Scanner Designed for Retail and Light Industrial Applications

Cable-free for Ease of Use and Improved Performance
The LS 4074 scanner from Symbol Technologies offers cableless scanning operation for greater flexibility, mobility and user friendliness. Ergonomically designed with the operator in mind, the LS 4074 also provides excellent scanning performance superior to competitive corded scanners. Plus, it's a member of Symbol's LS 4000 family of high-performance scanners.

LS 4074 ­ The Premier Scanner for the Retail Marketplace

The LS 4074's superior ergonomic design provides the best possible user comfort, even over extended periods of use. Its unique two-finger trigger makes scanning easier and faster. The LS 4074 is also extremely light and mobile so operators can easily scan barcodes on heavy or bulky items. And there's no cord to get caught or tangled; without a cord in the way, operators won't knock over items while reaching for hard-to-get-at barcodes. Another plus that comes from not being tethered is that the LS 4074 can scan items in shopping carts, so customers don't have to lift heavy items up to the counter.

A Scanner with Advanced Features

The LS 4074 offers features that take advantage of Symbol's advanced technology and electronics:

  • An RF working range of over 10 feet/3 meters. And since it is cableless, there's never any need to worry about broken cables.
  • It uses adaptive logic to provide excellent scanning performance on all barcodes, including damaged and poor quality symbols. And its brighter laser provides improved performance in brightly lit environments.
  • The LS 4074 uses flash memory to store system and application software modules. This allows for easy field updates, plus there's no need to open the scanner and physically replace the PROM chip. In addition, its Synapse™ interface makes connectivity to virtually any host a matter of just changing the cable.
  • Advanced Data Formatting gives LS 4074 users the ability to modify scanned data before forwarding it to the host computer.
  • The LS 4074 was designed for heavy use and is very durable. It has a rubber overmold canopy and a protective battery boot cover.

The LS 4074 ­ Reliable, Flexible and Designed to Increase Productivity
The new RF LS 4074 cordless scanner is designed to increase productivity. Its award-winning, advanced ergonomic design provides greater user comfort so the job is completed more effectively and with much less fatigue. In addition, there's no more downtime due to cable problems. The LS 4074 is the ideal choice for scanning jobs in retail and light warehouse and manufacturing environments.

Another Winning Scanner from Symbol Technologies
The LS 4074 is an innovative cordless scanner more advanced than any offered by the competition. And it's brought to you by Symbol Technologies, the leader in barcode-driven data management systems with more than 4 million scanners and terminals installed worldwide.

The LS 4074 lets operators scan items without lifting them for added speed andconvenience and ­ no cable restrictions.

LS4074 Specification Highlights

Performance Characteristics

Light Source:

675 nm laser diode

Scan Rate:

36  scan/sec. (bidirectional)

Roll (Skew):

±25 °

Pitch:

±55 °

Yaw:

±55 °

Print Contrast:

25% minimum reflectance

Decode Capability:

(Decoded versions, varies by model and host) UPC/EAN, UPC/EAN with supplementals, Code 39 Full ASCII, Code 128, Codabar, Interleaved 2 of 5, Discrete 2 of 5, MSI/Plessey

Interface Type:

(Varies by model) IBM 4680/4690, Wand Emulation, RS-232-C, OCR, OCIA, Fujitsu, ICL, NCR, Nixdorf, Omron, TEC, Sharp, Casio, POS and Computer Keyboard Wedges from IBM, DEC, Telex, NCR, WYSE, HP and other manufacturers

Electrical:

Complies with UL, CSA and VDE; conforms to FCC Class A and Class B limits

Power Requirements (Base Unit):

U.S.: 110V± 10%, 60 Hz;Europe: 230V± 10%, 50 Hz

Battery Capacity:

3000 scans/charge, minimum

Battery Recharge Time:

2 hr. maximum (uninterrupted)

Radio Range:

10 ft./3m, minimum

Laser Class:

(Varies by model) CDRH Class II, BSI 4803 Class I, IEC 825 Class 2, IEC 825 Class 1

Weight:

Base: 8.92 oz./253 gm (without power supply or cables);Scanners: 10.23 oz./290 gm

User Environment

Ambient Light:

Immune to normal artificial indoor and outdoor (indirect sunlight) lighting conditions

Operating Temperature:

32° to 104°F (0° to 40°C)

Storage Temperature:

-40° to 140°F (-40° to 60°C)

Humidity:

5% to 95% (non-condensing)

Durability:

Withstands multiple 4-ft/1.2 m drops to concrete
