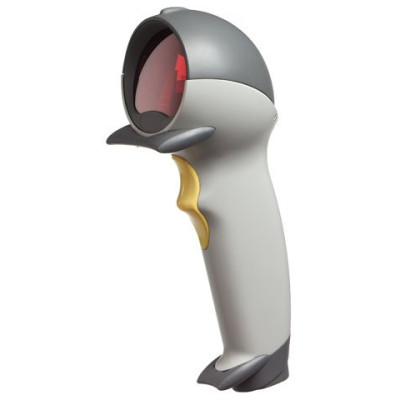

Symbol LS 6004 Barcode Scanners

Starting at:

Multifunctional Omnidirectional and Single-Line Barcode Scanning in an Easy-to-Use Handheld Ergonomic Form Factor

The LS 6004 omnidirectional reader combines the comfort and precision of a handheld reader with the productiveness of an high first-pass read rate omnidirectional reader, resulting a high performance, flexible hand held reader that increases throughput at the point-of-sale for any busy retail station. The LS 6004 is available as a hand held or presentation reader, and features a design comfortable to hold. The LS 6004 optimizes efficiency with its three programmable operating modes, which include fulltime omnidirectional reading with triggered single-line reading, triggered omnidirectional reading, and triggered single line reading. Each model comes with a user's manual.

The Symbol LS 6004 is also known as the Symbol Technologies LS 6004

LS 6004 Options
Symbol LS 6004 (LS6004-l000-0200AN)
LS 6004, RS-232 kit: Scanner, RS-232 cable, power supply, & product reference guide.
In Stock: Ships Today
+ Add to Quote
Symbol LS 6004 (LS6004-l000)
LS 6004, Scanner. Order cables & power supply separately. See accessories.
In Stock: Ships Today
+ Add to Quote
Symbol LS 6004 (LS6004-I000-0705A)
LS 6004, Keyboard wedge kit: Scanner, PS/2 cable, power supply, & product reference guide.
In Stock: Ships Today
+ Add to Quote
Symbol LS 6004 (LS6004-I000-0704AN)
LS 6004, Scanner (Coiled Adapter Cable, Synapse Cable and Power supply)
In Stock: Ships Today
+ Add to Quote
Recommended Accessories
Motorola (23844-00-00R)
US AC Line Cord - 7.5' Length - Compatible with power supplies (Part# KT-14000-148R), (Part# 50-14000-241R), and (Part# PWRS-14000-148R)
In Stock: Ships Today
+ Add to Quote
Motorola (50-16000-182R)
Line Cord - 6' Ungrounded - Compatible with 2-wire, ungrounded power supplies
In Stock: Ships Today
+ Add to Quote
Symbol (70-33187-01)
Quick Reference Guide
In Stock: Ships Today
+ Add to Quote
Symbol (70-33186-01)
Product Reference Guide
In Stock: Ships Today
+ Add to Quote
Symbol (70-15600-01)
Advanced Programming Guide for the LS 5300-8400-9100-5700-5800
In Stock: Ships Today
+ Add to Quote

Symbol LS 6004 Details

Superior Ergonomics and Aggressive Scanning for Higher Throughput at POS

The next step in data capture for many retail environments, the LS 6004 combines the superior ergonomics and single-line capabilities of our small "point-and-scan" handheld scanners with the productivity benefits of our high-performance "can't miss-first pass" omni-directional scan pattern. The result is an aggressive, yet versatile, handheld scanner that increases throughput at point of sale for high-volume retail applications.

Available to use as either a handheld scanner or a presentation scanner, the LS 6004 offers a unique, ergonomic design. And, to optimize user efficiency, the LS 6004 is programmable to work in any of three operating modes, including full-time omni-directional scanning with triggered single-line scanning, triggered omni-directional scanning, or triggered single-line scanning. The user benefits with the highest level of performance from our aggressive omni-directional scanner while easily converting to a traditional single-line laser scanner for quickly reading barcode menus and pick lists, or when scanning bulky items.

Designed Around the User for Optimum Productivity

The small, lightweight LS 6004 Omni-Directional Scanner is a true handheld scanner that has been specifically contoured to minimize fatigue and fit comfortably in the widest range of hand sizes. Overmolded "chin" and "foot" supports allow the unit to be easily picked up, provide added shock absorption when put down, and prevent the LS 6004 from sliding off the counter. Despite its elegant appearance, scanners in the LS 6004 Series are rugged enough to withstand multiple 4-ft./1.2-m drops to concrete.

The LS 6004 incorporates "Scan Stitching" for superior reading regardless of barcode orientation, and has optimized laser focusing for aggressive reading performance on 100% UPC/EAN symbols from contact to 10 in./ 25 cm. For added user convenience, the unit features a 650 nm laser diode that provides greater visibility of the scan pattern, and a programmable beeper for audible feedback of good decodes.

High-Performance Scanning from the Industry Leader

Aggressive and robust, the LS 6004 becomes the ideal productivity tool for your high-volume data capture needs. Additional features such as Flash memory for easily updating software, Advanced Data Formatting for customizing barcode data before sending it back to the host, and Synapse "smart cable" connectivity for easy configuration to virtually any type of host, make this the ideal scanner for specialty retailers, warehouse clubs, DIY home centers, and mass merchandisers.

To find out how your company can benefit from Symbol's scanners, contact us at any of our offices, or visit us at

LS 6004 Features Benefits

Omni-directional and single-line scanning

Multi -functional scanner in an easy-to-use handheld ergonomic form factor

Flash programming capability futureproofs your investment

Easy to update and reconfigure to accommodate changing application needs

Synapse connectivity

Easy connectivity to most popular host devices

Advanced Data Formatting

Provides capability to modify scanned data before sending it to the host computer

Counter-mount and presentation stand available

Presentation scanning optimizes user comfort and increases throughput

High-visibility 650 nm laser diode

Scan lines are visible in even bright ambient light

LS 60000i Omni-Directional Scanner Series Specification Highlights

LS 6004 Physical Characteristics:


7.64 in. L x 2.72 in. W x 3.19 in. D/ 194 mm L x 69 mm W x 81 mm D


7.3 oz./207 gm


5.2 VDC ±5% @ 400 mA nominal (2.6 watts nominal)


Adjustable IntelliStand with user-adjustable height: 5-10 in./12.7-25.4 cm and angle: 0-90°

LS 6004 Performance Characteristics:

Light Source:

650 nm laser diode

Omni-Directional Scan Pattern:

20 interlocking lines, five scan angles, four lines per angle 1,200 lines per second Depth of field: 0.3-10 in./0.85-25.4 cm (100% UPC/EAN) Roll (Skew): ±360° Pitch: ±45° Yaw: ±60°

Single Line Scan Pattern:

One scan line Repetition Rate: 60 lines per second Depth of field: 0-10 in./0-25.4 mm (100% UPC/EAN) Roll (Skew): ±30° Pitch: ±65° Yaw: ±60°

Print Contrast:

25% minimum reflectance

Decode Capability:

UPC/EAN/JAN, NW7, Code 128, Code 39 Full ASCII, MSI/Plessey, Interleaved 2 of 5, Discrete 2 of 5, EAN/UCC 128, Code 11, Codabar, RSS codes

Interfaces Supported:

LS 6007i: USB (Standard, SurePos, Macintosh) LS 6005i: IBM 468X, 9X LS 6004i: RS-232C (Standard, Nixdorf, ICL, Omron and Fujitsu) Synapse adaptive connectivity allows all of the above plus: Keyboard Wedge, Laser/Wand Emulation, OCR and OCIA


Withstands multiple 4-ft/1.2-m drops to concrete

LS 6004 User Environment

Operating Temperature:

32° to 104° F/0° to 40° C

Storage Temperature:

-40° to 140° F/-40° to 60° C


5% to 95% (noncondensing)

Ambient Light:

Immune to normal artificial indoor and natural outdoor (direct sunlight) lighting conditions Fluorescent: 450 ft.-candles Incandescent: 450 ft.-candles Mercury Vapor: 450 ft.-candles Sodium Vapor: 450 ft.-candles Sunlight: 9,000 ft.-candles

EAS Support:

Checkpoint Electronic Article Surveillance EAS compatible

LS 6004 Regulatory:

Electrical Safety:

United States: UL1950 Canada: CS CSA C22.2 #950 Worldwide EN 60950 A1, A2, A3; IEC 950

Laser Safety:

International/European Union:Klasse Eins (Class I) Worldwide: IEC 825-1: 993/EN60825-1 1994 Class 1 United States/Canada DHHS 21 CFR 1040.10 Subchapter J


United States: FCC Part 15 Subpart B Worldwide: CE EN55022 1994 + A1 CISPR-22, Class B International/European Union: EMC Directive 89/366/EE
