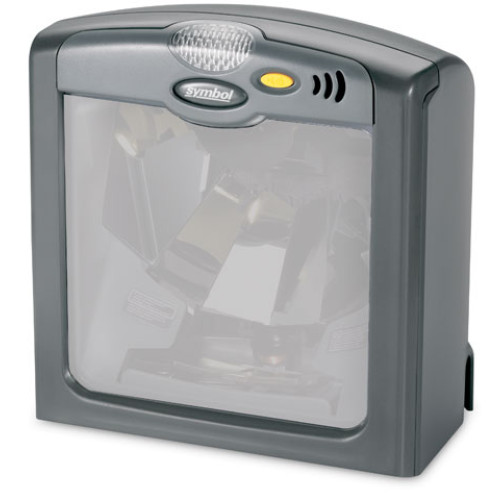

Symbol LS 7708 Barcode Scanners

Enhance Customer Service with Faster Checkouts

Moving customers through checkout quickly is one of the most important issues faced by retailers today. The LS 7708 mini-slot scanner from Symbol is the perfect choice for retailers looking for higher throughput and increased productivity. The on-counter LS 7708 is available for presentation or swipe scanning in an attractive form factor. For fast, accurate merchandise scanning at checkout, this easy-to-use, hands-free scanner requires minimal operator effort. Every feature contributes to increased performance for more efficient, rapid customer checkouts.
  • Automatic sleep mode - Reduces power demand and increases life of the scanner
  • Electronic article surveillance (EAS) - Saves time by eliminating the need to de-activate security tag in a separate step
  • Multiple interface capability - Protects your investment by allowing migration to future hosts with only a cable change
  • PC programming (123 Scan) - Allows for easy programming and set up of scanners - ideal for large installations
  • Rastering scan pattern - Speeds customers through checkout by maximizing first-pass read rates and reads truncated barcodes
  • RSS barcodes - Supports new, RSS barcodes to future proof your investment
  • Scan stitching - Improves first-pass read rate and increases productivity
  • Secondary scanner port - Enables connectivity to secondary scanner for scanning heavy or oversized merchandise
  • Universal cables - Saves money with one cable used across the Symbol product line
LS 7708 Options
Symbol LS 7708 (LS7708-SR1007ZC)
LS 7708, Scanner (On Center, EAS) - Color: Twilight Black
Specs: Cable - 2400 scan/s - Laser - Omnidirectional - Black
Symbol LS 7708 (LS7708-SR10007ZCR)
LS 7708, Includes EAS Antenna. Color: Black. Scanner Only - Cables and accessories must be purchased separately. These include USB (Part# CBA-U01-S07ZAR), PS/2 (Part# CBA-K01-S07PAR), or RS-232 Serial cables (Part# CBA-R01-S07PAR) and a Power supply (Part# PWRS-14000-253R).
Specs: Wired
Symbol LS 7708 (LS7708-BENU0300ZR)
LS 7708, Scanner, EAS ANT, PoweredUSB, 6 ft. Straight QRG, CD. Color: Twilight Black. Call to purchase.
Specs: Wired
Symbol LS 7708 (LS7708-BENU0100ZR)
LS 7708, USB kit: Includes USB cable, EAS Antenna, no power supply. Color: Black.
Specs: Wired
Symbol LS 7708 (LS7708-BENU0100Z)
LS 7708, Scanner (Multiple Interface, EAS Antenna, No Plural State Application, USB Cable Series A Connector, 6 ft. Straight 25-53492-22, No Synapse smart cable, US AC Line Cord and No Power supply) - Color: Twilight Black
Specs: Laser - Presentation Scanner - USB - Black
Symbol LS 7708 (LS7708-BENS0100A)
LS 7708, Scanner (Multiple Interface, EAS Antenna, No Plural State Application, Synapse Adapter Cable 6 ft. Straight 25-32463-20, No Synapse smart cable, US AC Line Cord 23844-00-00R and Universal Power supply 110-250V 50-14000-008R) - Color: Twilight Black
Specs: AC CHARGER5 MIL/RED/MW/ AC (EURO)
Symbol LS 7708 (LS7708-BENR0100AR)
LS 7708, Scanner (Multiple Interface, EAS Antenna, No Plural State Application, RS-232 Cable DB-9 Female, TxD on 2, 6 ft. Straight 25-32465-20, No Synapse smart cable, US AC Line Cord and Universal Power supply 110-250V) - Color: Twilight Black
Specs: Wired
Symbol LS 7708 (LS7708-BENR0100A)
LS 7708, Scanner (Multiple Interface, EAS Antenna, No Plural State Application, RS-232 Cable DB-9 Female, TxD on 2, 6 ft. Straight 25-32465-20, No Synapse smart cable, US AC Line Cord and Universal Power supply 110-250V) - Color: Twilight Black
Symbol LS 7708 (LS7708-BENM0100ZR)
LS 7708, Scanner (EAS IBM 9B Cable-25-32753-20) - Color: Black
Specs: Wired
Symbol LS 7708 (LS7708-BENK0100A)
LS 7708, Scanner (EAS Scanner with PS/2 Cable and Power supply) - Color: Twilight Black
Specs: ANT QRG Keyboard wedge PS/2 CABL/US 100-250V
Motorola LS7708 Verifone Ruby Kit (LS7708-RUBY-KIT)
LS7708 Verifone Ruby Kit, Includes A Motorola LS7708 Barcode scanner and a Verifone Ruby Compliant 9 ft. RJ45 to RJ45 Communication Cable (Cba-R28-C09zar).
In Stock: Ships Today
Please Call for Pricing
or to Purchase
Motorola LS7708 Gilbarco G Site Kit (LS7708-GILBARCO-G-KIT)
LS7708 Gilbarco G Site Kit, Includes A Motorola LS7708 Barcode scanner, A Gilbarco G Site Compliant 9 ft. Std-DB-9 Female Communication Cable (Cba-R02-C09par), Necessary Cable Adapter (25-60220-01r) and Power supply (Pwrs-14000-253r).
In Stock: Ships Today
Please Call for Pricing
or to Purchase
Symbol LS 7708 (LS7708-BENS0100AR)
LS 7708, Scanner (Multiple Interface, EAS Antenna, No Plural State Application, Synapse Adapter Cable 6 ft. Straight 25-32463-20, No Synapse smart cable, US AC Line Cord 23844-00-00R and Universal Power supply 110-250V 50-14000-008R) - Color: Twilight Black
Specs: Laser - Presentation Scanner - Synapse Adapter Cable - Black
Symbol LS 7708 (LS7708-BENK0100UR)
LS 7708, Scanner (Keyboard wedge, PS/2, EAS antenna, 100/250V Power supply, Quick Reference Guide) - Color: Twilight Black.
Specs: Wired
Symbol LS 7708 (LS7708-BEN00000AR)
LS 7708, Includes EAS Antenna, power supply, AC line cord and software CD. Color: Black. Scanner Only - Cables and accessories must be purchased separately. These include USB (Part# CBA-U01-S07ZAR), PS/2 (Part# CBA-K01-S07PAR), or RS-232 Serial cables (Part# CBA-R01-S07PAR) and a Power supply (Part# PWRS-14000-253R).
Specs: Laser - Presentation Scanner - Black

Symbol LS 7708 Details

Enhance Customer Service with Faster Checkouts

Moving customers through checkout quickly is one of the most important issues faced by retailers today. The LS 7708 mini-slot scanner from Symbol is the perfect choice for retailers looking for higher throughput and increased productivity.

The on-counter LS 7708 is available for presentation or swipe scanning in an attractive form factor. For fast, accurate merchandise scanning at checkout, this easy-to-use, hands-free scanner requires minimal operator effort. Every feature contributes to increased performance for more efficient, rapid customer checkouts.

Superior Design and Flexibility

The LS 7708's easy-to-use design enables employees to spend more time with customers. It has a large scan window for easy and intuitive scanning. An omni-directional, rastering scan pattern with moving laser scan lines delivers superior first-pass read rates and better performance on truncated symbols.

For retailers with occasional bulky or heavy items, the LS 7708 features a secondary scanner port to connect a handheld scanner. This removes the need for customers or associates to pick up and place cumbersome items on the counter, which saves valuable time. The LS 7708 combines the benefits of productive, hands-free scanning with the versatility of a handheld scanner.

High Performance at an Affordable Price

For medium- to high-volume retailers such as drug, grocery, specialty soft goods, hard goods and department stores, the LS 7708 offers a costeffective, hands-free solution. The LS 7708 is designed for maximum uptime to withstand the toughest and busiest retail environments. An integrated EAS antenna in every scanner provides the interface for electronic article surveillance (EAS) de-activation, which makes the LS 7708 one of the best values on the market today.

Lower Total Cost of Ownership (TCO)

For a lower TCO, the LS 7708 scanner has the identical solid reliability of the successful LS5700 plus added performance capabilities. LS 7708 scanners read Reduced Space Symbology? (RSS), which offers tracking identification for produce and pharmaceuticals, to future proof your investment.

Increase Associate and Checkout Productivity

First-pass data capture, less time spent orienting barcodes and secondary scanning capabilities all contribute to increased productivity. Improve worker and point-of-sale productivity in all these ways, and you can speed customers through checkout lines faster and more efficiently.

Rastering scan pattern

Speeds customers through checkout by maximizing first-pass read rates and reads truncated barcodes

RSS barcode decoding

Supports new, RSS barcodes to future proof your investment

Multi-interface capability

Protects your investment by allowing migration to future hosts with only a cable change

Universal cables

Saves money with one cable used across the Symbol product line

Scan stitching

Improves first-pass read rate and increases productivity

Electronic article surveillance (EAS)

Saves time by eliminating the need to de-activate security tag in a separate step

PC programming (123 Scan)

Allows for easy programming and set up of scanners ? ideal for large installations

Secondary scanner port

Enables connectivity to secondary scanner for scanning heavy or oversized merchandise

Automatic sleep mode

Reduces power demand and increases life of the scanner

LS 7708 Specification Highlights

Dimensions without stand:

Height 6.3 in (16 cm)
Width: 5.98 in (15.2 cm)
Depth: 3.73 in (9.5 cm)

Weight:

Scanner only: 2 lbs. (907 g)

Power Source:

Power drawn from Host terminal or external power supply; depends on Host type

Voltage:

5.5 VDC to 4.75 VDC measured at host terminal or external power supply

Typical/Max Current:

390mA/500mA

Power Source:

2 watts

Mounting Options:

Integral Mounting Bracket

Color:

Twilight Black

Light Source:

650 nm visible laser diode

Print Contrast:

25% minimum reflective difference

Scan Patterns:

Static/Raster - Omnidirectional:24/120 scan lines

Scan Rate:

Static/Raster - Omnidirectional: 2400 scans/second

Typical Working Range:

5 mil: (38%) 0.5 in - 2.5 in (1.25 cm - 6.4 cm)
7.8 mil: (60%) 0 - 5.0 in (0 -12.7 cm)
10.4 mil: (80%) 0 - 7.5 in (0 -19.0 cm)
13 mil: (100%) 0 - 10.0 in (0 - 25.4 cm)

Depth of Field:

0-10 in/25 cm @ 13 mil (100% UPC/EAN)

Minimum Resolution1:

5 mil

Decode Capability:

UPC/EAN/JAN, UPC/EAN with Supplementals, UCC/EAN 128, Code 128, ISBT 128, Code 39, Code 39 Trioptic, Interleaved 2 of 5, Discrete 2 of 5, Code 93, Code 11, Codabar, RSS Variants

Interfaces Supported:

USB, RS 232, IBM? 468X/9X, Keyboard Wedge, and Synapse? (allows connectivity to virtually every POS host type), SPCI (for 123 Scan)

Operating Temperature:

32? to 104?F (0? to 40? C)

Storage Temperature:

-40? to 158?F (-40? to 70?C)

Humidity:

5% to 95% noncondensing

Ambient Light Immunity:

Immune to normal artificial indoor and natural outdoor (direct sunlight) lighting conditions.
Fluorescent, Incandescent, Mercury Vapor and Sodium Vapor: 450 Ft Candles (4,844 Lux)
Sunlight: 8000 Ft Candles (86,111 Lux)

EAS Support:

Electronic Article Surveillance Antenna (EAS) Included; Interlock feature for Sensormatic and Checkpoint

Electrical Safety:

Certified to UL 1950, CSA C22.2 No. 950 EN60825

Laser Safety:

CDRH Class IIa Laser Product
IEC 60825 Class 1 Laser Product

EMC:

CISPR B, FCC B

1Refers to 100% UPC barcode (80% contrast) located 4 in./10 cm. from the scanner nose.
