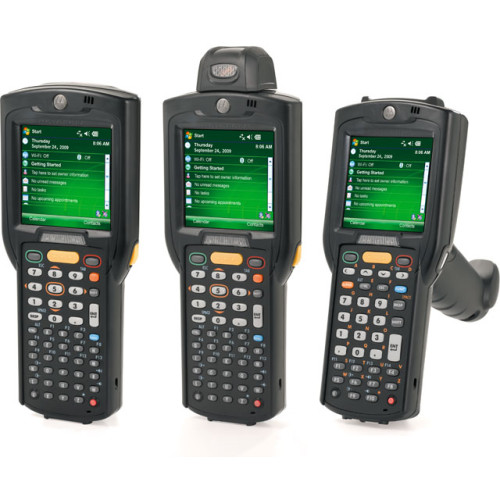

Symbol MC3100 Mobile Computer

2-D Imager Engine

Aiming element (VLD)
655 ± 10 nm Laser (SE4500 SR and SE4500 HD)

Illumination element (LED)
625 ± 5 nm LEDs (2x) (SE4500 SR and SE4500 HD)

Field of View
Horizontal: 38°/Vertical: 25° (SE4500 SR);Horizontal: 39°/Vertical: 25° (SE4500 HD)

Pitch angle
±60° (SE4500 SR and SE4500 HD)

Skew tolerance
±60° (SE4500 SR and SE4500 HD)

Roll
360° (SE4500 SR and SE4500 HD)

Sensor resolution
752 x 480 pixels (SE4500 SR and SE4500 HD)

Communications

WLAN
Tri-mode IEEE® 802.11a/b/g; CCXv4 certified; support for IPv6; FIPS140-2 Certified

WPAN (Bluetooth Support)
Class II, v2.1 with Enhanced Data Rate (EDR), Integrated antenna

Linear 1-D Scanner

Optical resolution
4 Mil minimum element width

Scan angle
47° ± 3° default; configurable narrow angle: 35° ± 3°

Scan rate
104 (+/- 12) scans/sec (bi-directional)

Performance Characteristics

Memory
256MB RAM / 1G Flash

Data capture options
1-D Laser Scanner, 1-D/2-D Imager, DPM

Operating system (OS)
Microsoft Windows Mobile 6.1 Classic, Microsoft Windows CE 6.0 Pro, Microsoft Windows Mobile 6.5 Classic Edition

Processor (CPU)
Marvell PXA320 @ 624 MHz

Physical Characteristics

Audio options
VOWLAN, Rugged audio connector, Handset and headset modes, Speakerphone

Headset
Bluetooth headset, Wired headset

Dimensions (HxWxD)
Straight Shooter:
7.49 in. H x 3.25 in. W x 1.77 in. D/190.4 mm x 82.6 mm x 45.2 mm
At grip:
2.40 in. W x 1.44 in. D/61.2 mm x 36.8 mm

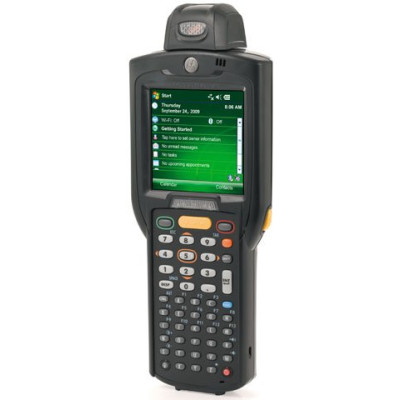

Rotating Turret:
8.37 in. L x 3.22 in. W x 1.57 in. D/ 212.6 mm x 81.9 mm x 40.0 mm
At grip:
2.40 in. W x 1.14 in. D/61.2 mm x 29 mm
Gun configurations:
7.5 in. H x 3.2 in. W x 6.5 in. D/193 mm x 80.8 mm x 166 mm

Display type
3.0 in. Color (TFT) Display with backlight

Keypad options
28-key Numeric, 38-key Shifted Alpha, 48-key Alpha-Numeric

Notification
Audio notifications, Programmable LEDs

Zebra Interactive Sensor Technology
3-axis accelerometer that enables motion-sensing applications on dynamic screen orientation, power management and free-fall detects

Expansion slot
User accessible (located under battery), Approved for memory expansion only, Standard SD slot

Weight (including strap, stylus and battery)
Straight Shooter Imager or Laser:
14.95 oz./424 gm
Rotating Turret:
13.52 oz./384 gm (with standard battery)
Gun Configurations:
18.34 oz./520 gm (with extended battery)

Power

Battery
Standard rechargeable Li-Ion battery: 2740mAh @ 3.7 VDC (Straight Shooter and Rotating Turret models) Extended rechargeable Li-Ion battery: 4800mAh @ 3.7 VDC (all models)

Regulatory Specifications

Electrical safety
CSA C22.2 No. 60950-1, EN 60950-1, IEC 60950-1, Certified to UL / cUL 60950-1

Laser safety¹
EN 60825-1, IEC 60825-1, IEC Class 2/FDA Class II

RF exposure
USA: FCC Part 2, FCC OET Bulletin 65 Supplement C; Canada: RSS-102; EU: EN 62311; Australia: Radiocommunications Standard 2003

EMI/RFI
Batch: USA: FCC Part 15; Canada: ICES 003 Class B; EU: EN55022 Class B EN55024; Japan: CISPR 22, Class B; Australia: AS3548; Radio: USA: FCC Part 15; Canada: RSS210 Class B; EU: EN 301 489-1, 489-17

User Environment

Ambient lighting tolerance²
Tolerant to typical artificial indoor and natural outdoor (direct sunlight) lighting conditions. Fluorescent, Incandescent, Mercury Vapor, Sodium Vapor, LED : 450 Ft Candles (4, 844 Lux) Sunlight: 8000 Ft Candles (86, 111 Lux)

Environmental sealing
IP54 category 2; meets or exceeds applicable IEC sealing specifications

Drop specification
Multiple 4 ft./1.2 m drops to concrete across the operating temperature range, Multiple 5 ft./1.5 m drops to concrete at ambient temperature 73° F/23° C; meets and exceeds MIL-STD 810G

Electrostatic discharge (ESD)
+/-15kVDC air discharge, +/-8kVDC direct discharge, +/-8kVDC indirect discharge

Humidity
5 - 95% non-condensing

Operating temperature
-4° to 122° F/-20° to 50° C

Storage temperature
-40°F to 158° F/-40° to 70° C

Tumble specifications
500 1.64 ft./0.5 m tumbles (1, 000 drops) at room temperature per IEC 68-2-32
