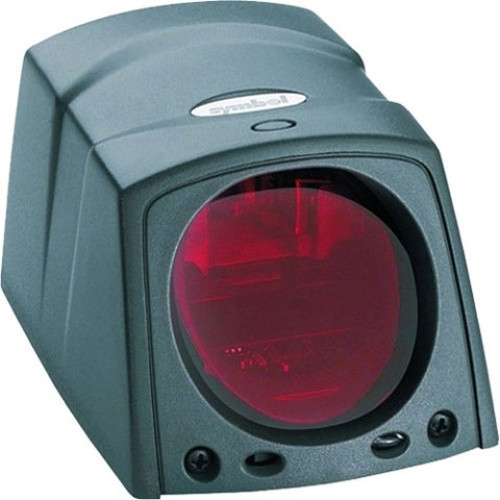

Symbol MiniScan MS1204 Fixed Mount Barcode Scanners

Proven technology to enhance your solutions

The Symbol MiniScan MS1204 Barcode Reader is a compact, durable, industrial fixed mount scanner available in fuzzy (FZY) version for maximum versatility. The MiniScan MS1204 Barcode Reader features fuzzy logic for premium scanning on 1D barcodes including poorly printed and low contrast. The Symbol MiniScan MS1204 is an excellent choice for OEM devices requiring accurate, automated data collection, even in the most demanding environments. It can also be used as a standalone fixed mount scanner.

The Symbol MiniScan MS1204 is also known as the Symbol Technologies MiniScan MS1204

MiniScan MS1204 Options
Symbol MiniScan MS1204 (MS-1204FZY-I000R)
MiniScan MS1204, Housed Scan Engine: Class 2, Serial, Fuzzy RS-232
Specs: Wired - Linear
In Stock: Ships Today
$236.00
+ Add to Quote
Symbol MiniScan MS1204 (MS-1204FZY-I000)
MiniScan MS1204, MiniScan (Housed Scan Engine, CL 2, SL, FZY and RS-232)
Specs: Laser
Recommended Accessories
Symbol (20-60136-02R)
Gooseneck Stand - Compatible with MiniScan Series - Color: Black
In Stock: Ships Today
$27.10
+ Add to Quote
Symbol (KT-65578-01R)
Adjustable Bracket - Compatible with MiniScan Series
In Stock: Ships Today
$39.00
+ Add to Quote

Symbol MiniScan MS1204 Details

Performance Characteristics

Scan pattern
Single line

Minimum resolution
MS12XX FZY: Minimum 25% absolutedark/light reflectance measured at 650 nm; MS 1207 WA: Minimum 20% absolutedark/light reflectance measured at 670 nm

Decode capability
1-D, See data sheet for full list of supported symbologies

Interfaces supported
RS-232, Synapse, USB, TTL, Interfaces vary per model; see datasheet for details

Depth of field
MS120xFZ: 100% UPC - 80% MRD: 2.2 - 25.75 (in) / 5.59 - 65.41 (cm); MS120xWA: 100% UPC - 80% MRD: 0.6 - 11 (in) / 1.52 - 27.94 (cm)

Technology
Laser

Physical Characteristics

Dimensions
1.6 H x 2.28 x 2.94 in. (40.64 x 57.91 x 74.76 mm) H x W x D

Weight
4.45 oz. (126 g)

Voltage and current2
MS12XX FZY: 160 mA; MS1207 WA: 110 mA

Regulatory Specifications

Electrical Safety
C22.2 No. 60950-1, EN 60950-1, IEC 60950-1

EMI/RFI
FCC Part 15 Class B, ICES 003 Class B

Environmental
RoHS Directive 2002/95/EEC

User Environment

Ambient lighting tolerance
Tolerant to typical artificial indoor and natural outdoor (direct sunlight) lighting conditions. Fluorescent, Incandescent, Mercury Vapor, Sodium Vapor, LED : 450 Ft Candles (4, 844 Lux) Sunlight: 8000 Ft Candles (86, 111 Lux)

Operating temperature
MS12XX FZY: -4° to 122° F (-20° to 50° C); MS1207 WA: 32° to 104° F (0 - 40° C)

Storage temperature
MS12XX FZY: -40° to 158° F (-40° to 70° C); MS1207 WA: -40° to 140 °F (-40° to 60° C)

Drop specifications
Unit functions normally after multiple 30 in. (76 cm) drops to concrete

Environmental sealing
IP54
