Symbol MK 1100 Fixed/Vehicle Mount Data Terminals

Symbol MK1200 A newer version of this item is available.
It is replaced by the Symbol MK1200.

Improve Information Access to Increase Sales and Efficiency

The MK 1100 Micro Kiosk from Symbol Technologies is the perfect space-saving device to cost-effectively deploy and run applications with digital signage, price verification and barcode scanning throughout your retail environment. This versatile, interactive self-service kiosk empowers you to grow your sales opportunities while reducing your internal store operation costs.
MK 1100 Options
Symbol MK 1100 (MK1150-0N0DAKBWTWW)
MK 1100, Micro Kiosk (11 Mbps Radio, SE3223, COLOR VGA, Passive, 32MB Flash/32MB DRAM, 4 Keys, Windows CE .NET, Touch Display and World Wide)
Specs: POLE (DM-D102)
Symbol MK 1100 (MK1150-0N0DAKBNTWW)
MK 1100, Micro Kiosk (11 Mbps Radio, SE3223, Color VGA, Passive, 32MB Flash/32MB DRAM, 4 Keys, Windows CE .NET, Non Touch Display and World Wide)
Specs: Motorola MK1150 Micro Kiosk
Symbol MK 1100 (MK1100-0N0DAKBWT00)
MK 1100, Micro Kiosk (Wired Ethernet, SE3223, Color VGA, Passive, 32MB Flash/32MB DRAM, 4 Keys, Windows CE .NET, Touch Display and Batch Universal)
Specs: Motorola MK1100 Kiosk
Symbol MK 1100 (MK1100-0N0DAKBNT00)
MK 1100, Micro Kiosk (Wired Ethernet, SE3223, Color VGA, Passive, 32MB Flash/32MB DRAM, 4 Keys, Windows CE .NET, Non Touch Display and Batch Universal)
Specs: Motorola MK1100 Micro Kiosk
Recommended Accessories
Symbol (21-118517-01R)
Wall Mount Kit (for the MK500)
In Stock: Ships Today
$46.50
+ Add to Quote
Symbol (25-85052-01R)
DC Line Cord (PS to MK)
In Stock: Ships Today
$16.30
+ Add to Quote
Symbol (PWR-WUA24V15W0WW)
Power Supply For Mk500
In Stock: Ships Today
$33.30
+ Add to Quote
Symbol Accessories (25-119283-01R)
Accessories, Cable Assembly (Developer Debug), USB to Serial DB-9 Female, For The Mk500/Mk3000/MK4000
Ships in 3-5 Days
$33.30
+ Add to Quote
Symbol (21-118517-02R)
Pole Mount Kit (for the MK500)
Ships in 3-5 Days
$89.40
+ Add to Quote

Symbol MK 1100 Details

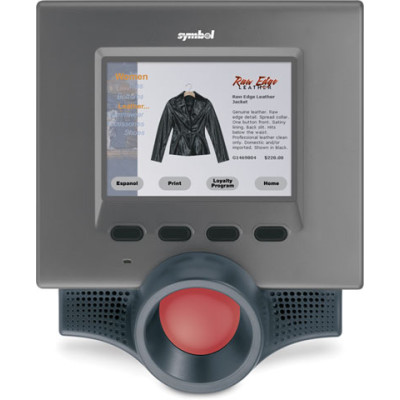

MK 1100 Web-Enabled Self-Service Kiosk

The MK 1100 Micro Kiosk from Symbol Technologies is the perfect space-saving device to cost-effectively deploy and run applications with digital signage, price verification and barcode scanning throughout your retail environment. This versatile, interactive self-service kiosk empowers you to grow your sales opportunities while reducing your internal store operation costs.

With a depth of less than 4 in. (10 cm) and an eye-catching 5.7 in. (14.5 cm) - 1/4 VGA display, the MK 1100 is compact in size yet easily visible and intuitive for first-time users. Customers quickly navigate your applications by using the kiosk's four programmable buttons or the optional touch screen. Also, employees receive in-aisle access to mission-critical information from any location on the floor. Common uses include:

Customer Applications
Pre-sales assistance:
  • Price verification
  • Advertising and promotion
  • Order automation
Customer service:
  • Store map display
  • Coupon printing
Brand loyalty:
  • Frequent shopper information
  • Loyalty card specials
Employee Applications
SKU management:
  • Enter alerts (over/under stock)
  • Get SKU details
Time and attendance:
  • Clock in / out
  • Work schedules access

Creating Customer and Employee Applications is Easy

For IT teams, the MK 1100 software development kit (SDK) makes it easier and faster than ever before to create and deploy applications. The comprehensive SDK includes the Kiosk Software Suite, a fully functional HTML-based demonstration application with source code. It also supports printing capabilities from a variety of programming environments including the browser-based Kiosk Software Suite. Large and small deployments are streamlined with a simple to use, menu-based configuration utility for automated, remote device set up and management. All of these features enable you to build interactive solutions to satisfy even the most demanding business goals while staying on time and on budget - with one device.

Delivering Return on Investment (ROI)

The MK 1100 allows you to improve customer loyalty and satisfaction for a stronger bottom line. It also frees your sales associates from time-consuming activities, increasing efficiency and productivity per employee with in-aisle access to task critical information. In addition, you can rollout the MK 1100 with more confidence because it's from Symbol Technologies�a global retail solutions leader with proven systems at work in millions of locations around the world.

To find out how your company can benefit from Symbol kiosks, contact us at any of our offices, or visit us at www.symbol.com/MK 1100.

Features Benefits
Digital signage kiosk with 5.7 in./14.5 cm diagonal, 1/4 VGA display Ideal for customer- and employee-facing interactive applications using digital signage, barcode scanning and price verification
Full network connectivity over both wireless (IEEE 802.11b) and wired (802.3) networks Connects to your network from anywhere with a wireless or wired Ethernet connection
Four programmable function buttons with touch screen option Improves interactive applications with uses such as menu navigation and item selection
Easy to use Microsoft� Windows� CE .Net and browser Reduces application development time with standard Windows development tools
Trim, ergonomic design with a depth of less than 4 in./10 cm Mounts easily, anywhere in the store - on walls, end-caps, shelves or poles
Printing support: C, C++, C#, VisualBasic .Net and browser Connects to many popular serial printers
Award-winning scan engine technology Reads all common barcodes found in retail environments
Magstripe reader (optional) Users can swipe a card for identification and account access

MK 11000 Specification Highlights

Physical Characteristics
Dimensions: 10.9 in. H x 8.9 in. W x 3.6 in. D
27.7 cm H x 22.6 cm W x 9.1 cm D
Weight: 3.1 lbs /1.4 kg (typical)
Display: Size: 5.7 in./14.5 cm diagonal
Resolution: 320 x 240 pixels (1/4 VGA)
Resistive touch screen: Optional
Power: 12-24 VDC/20 Watts
Supports Power-over-Ethernet (Symbol Bias-T)
Buttons: 4 Programmable Buttons
Expansion Capabilities: One Type II/III PC Card
Data Ports: RS-232: RJ-45 connector
Ethernet: 10Mb 10Base-T, RJ-45 connector
Audio Ports: Beeper
Scanner: Scan Modes: 1D: Omnidirectional scanning
2D: Smart raster
Light Source: 650 nm laser diode
Decode Capability: 1D symbologies: All standard retail codes including: UPC/EAN, Code 39, Interleaved 2 of 5, Code 128, Codabar MSI Plessey 2D symbologies: PDF417 and MicroPDF
Performance Characteristics
CPU: Intel XScale� (200 MHz)
Operating Platform: Windows CE .NET 4.1
Browser: Internet Explorer CE version 5.5
Images: GIF, JPEG and BMP
Flash Memory: 32 MB
RAM: 32 MB DRAM
Communications: Serial: RS-232
Ethernet: 10 Mb Ethernet (802.3)
WLAN: 11 Mbps (802.11b)
User Environment
Operating Temperature: 32° to 104° F/0° to 40°C
Storage Temperature: -13° to 158° F/-25° to 70°C
Humidity: 5% to 80% (noncondensing)
Accessories
Available Applications:
  • Kiosk Software Suite with source code
  • PCK Emulation
  • IBM 4690 Emulation
  • AirBEAM Smart
  • On-board FTP Server
  • On-board SNTP Client
Application Development Tools:
  • MK 1100 SDK includes C APIs and ActiveX Objects and supports attachment of Serial Printer and MSR
  • MK 1100 SDK provides support for application development using eVC++ 4.0 SP1
  • Remote Device Manager / Configuration Utility
  • SMDK for .NET available for C# and Visual Basic.NET application development
  • Software tools listed above are available from Symbol Developer Zone Web site, http://devzone.symbol.com/
Peripherals and Accessories
Mounting Options:
  • Wall-Mount Bracket
  • Pole-Mount Bracket
  • Conforms to the VESA 100 mm mounting standard for attachment of third-party, off-the-shelf mounting solutions
Optional Accessories:
  • 3-track Magnetic Stripe reader
  • Advertising/placard mounting kit
Regulatory
Electrical Safety: Certified to UL60950/CSA C22.2 No. 60950, EN60950/IEC60950
Laser Safety: CDRH Class II, IEC Class 2
EMI/RFI: FCC Part 15 Class B, ICES-003 Class B, European Union EMC Directive, Australian AS3548

Specifications are subject to change without notice.
