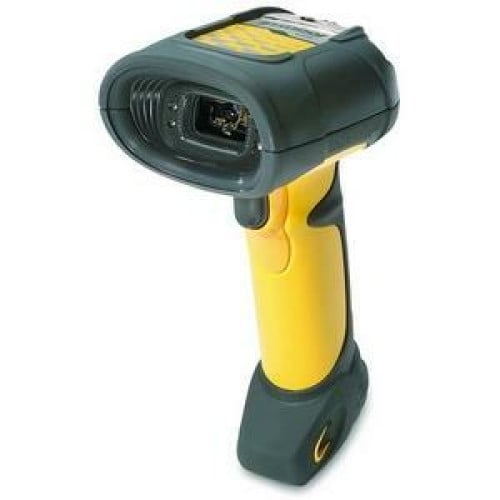

Symbol DS3408-SF20005R Barcode Scanner
Part #: DS3408-SF20005R | SKU: SYM27712

The DS3400 Series industrial bar-code scanners from Symbol Technologies use digital imaging technology to accurately capture all types of two-dimensional (2D) and one-dimensional (1D) bar codes while offering the high performance typically found only in laser scanners. For capturing images and bar codes, the DS3408 is ideal. But if image capture and transfer capability is what you need, the DS3407 is perfect for today's applications, such as digital document storage and processing, as well as for image capture applications of the future.

Symbol DS3408-SF20005R Barcode Scanner

Part Details: Scanner (Digital, Industrial, M-Interface) - Color: Yellow

Need a different version of the Symbol DS 3408 Barcode Scanner? View all 5 configurations

Additional Information

Manufacturer AIDC	Symbol
Model Name	DS 3408
Scanner Capability	1D

Symbol DS 3408 Specs (pdf)

Technical Information

Barcode Dimension:
- 1D
- 2D
Scan Pattern: Omni-directional
Connectivity Technology: Cable
Light Source: Laser
Image Sensor: CCD
Barcode Symbology Supported:
- UPC/EAN
- UPC/EAN Supplementals
- UCC/EAN 128
- JAN-13
- JAN-8
- Code 39
- Code 39 Full ASCII
- Code 39 TriOptic
- Codabar (NW7)
- Interleaved 2 of 5
- Discrete 2 of 5
- Code 93
- MSI
- Code 11
- Code 32
- Bookland EAN
- IATA
- UCC/EAN RSS
- UCC/EAN RSS Variants
- PDF 417
- Micro PDF-417
- MaxiCode
- DataMatrix
- Composite Code
- QR Code
- U.S. Planet
- U.S. Postnet
- U.K. Postal
- Japanese Post
- Australian Post
- Dutch Postal
- UPC/EAN
- UPC/EAN Supplementals
- UCC/EAN 128
- JAN-13
- JAN-8
- Code 39
- Code 39 Full ASCII
- Code 39 TriOptic
- Codabar (NW7)
- Interleaved 2 of 5
- Discrete 2 of 5
- Code 93
- MSI
- Code 11
- Code 32
- Bookland EAN
- IATA
- UCC/EAN RSS
- UCC/EAN RSS Variants
- PDF 417
- Micro PDF-417
- MaxiCode
- DataMatrix
- Composite Code
- QR Code
- U.S. Planet
- U.S. Postnet
- U.K. Postal
- Japanese Post
- Australian Post
- Dutch Postal
Maximum Scan Resolution: 5 mil
Depth of Field: 1" - 14"@ - 100% UPC/EAN

General Information

Product Type: Handheld Barcode Scanner
Brand Name: Motorola
Manufacturer: Motorola, Inc
Product Model: DS3408
Product Name: DS3408 Barcode Reader

Physical Characteristics

Height: 7.3"
Width: 4.8"
Depth: 2.9"
Color:
- Black
- Yellow
Weight (Approximate): 12.56 oz

Interfaces/Ports

Host Interface: Multi-interface

Other

Green Compliant: Yes
Green Compliance Certificate/Authority: RoHS
Package Contents:
- DS3408 Barcode Reader
- Quick Start Guide
- DS3408 Barcode Reader
- Quick Start Guide
Certifications & Standards:
- RoHS Compliant
- Electrical Safety:
- UL1950
- CSA C22.2 No. 950
- EN60950/IEC950Laser Safety:
- CDRH Class II
- IEC Class 2EMI/RFI:
- FCC Part 15 Class B
- ICES-003 Class B
- European Union EMC Directive
- Australian SMA
Additional Information:
- Supported Interfaces:
- Serial
- Keyboard Wedge
- Wand Emulation
- IBM 468X/469X
- USB
- Synapse

Warranty

Limited Warranty: 3 Year

Power Description

Input Voltage: 5 V DC

Extended Details
