Additional Information
| Manufacturer | Symbol |
|---|---|
| Model Name | DS 6607 |
| Scanner Capability | 1D |

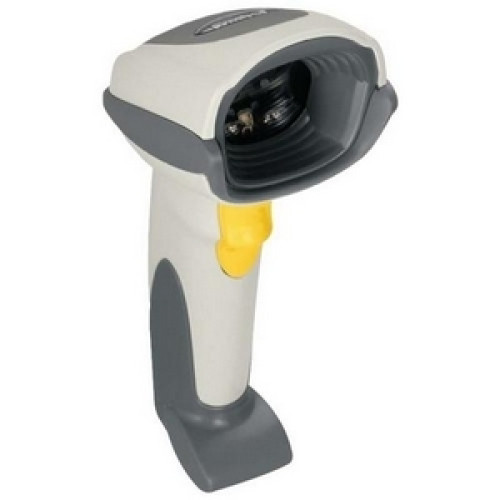

Symbol DS 6607 Specs
Technical Information
- Barcode Dimension:
- 1D
- 2D
- Scan Pattern: Omni-directional
- Connectivity Technology: Cable
- Light Source: Laser
- Image Sensor: Imager
- Barcode Symbology Supported:
- UPC/EAN
- UPC/EAN with Supplementals
- UCC/EAN 128
- JAN-8
- JAN-13
- Code 39
- Code 39 Full ASCII
- Trioptic Code 39
- Code 128
- Code 128 Full ASCII
- Codabar (NW7)
- Interleaved 2 of 5
- Discrete 2 of 5
- Code 93
- MSI
- Code 11
- Code 32
- Bookland EAN
- IATA
- UCC/EAN RSS
- RSS Variants
- PDF 417
- Micro PDF-417
- MaxiCode
- DataMatrix
- QR Code
- U.S. Postnet
- U.S. Planet
- U.K. Postal
- Japanese Post
- Australian Post
- Dutch Postal
- UPC/EAN
- UPC/EAN with Supplementals
- UCC/EAN 128
- JAN-8
- JAN-13
- Code 39
- Code 39 Full ASCII
- Trioptic Code 39
- Code 128
- Code 128 Full ASCII
- Codabar (NW7)
- Interleaved 2 of 5
- Discrete 2 of 5
- Code 93
- MSI
- Code 11
- Code 32
- Bookland EAN
- IATA
- UCC/EAN RSS
- RSS Variants
- PDF 417
- Micro PDF-417
- MaxiCode
- DataMatrix
- QR Code
- U.S. Postnet
- U.S. Planet
- U.K. Postal
- Japanese Post
- Australian Post
- Dutch Postal
- Maximum Scan Resolution: 5 mil
- Depth of Field: 1" - 14"@ - 100% UPC/EAN
General Information
- Product Type: Handheld Barcode Scanner
- Brand Name: Motorola
- Manufacturer: Motorola, Inc
- Product Model: DS6607
- Product Name: DS6607 HD Barcode Reader
Physical Characteristics
- Height: 6.6"
- Width: 2.8"
- Depth: 4.7"
- Color: Black
- Weight (Approximate): 6.04 oz
Interfaces/Ports
- Host Interface: Multi-interface
Other
- Green Compliant: Yes
- Green Compliance Certificate/Authority: RoHS
- Certifications & Standards:
- RoHS Compliant
- Electrical Safety:
- UL1950
- CSA C22.2 No. 950
- EN60950/IEC950
- Laser Safety:
- CDRH Class II
- IEC Class 2
- EMI/RFI:
- FCC Part 15 Class B
- ICES-003 Class B
- European Union EMC Directive
- Australian SMA
- Additional Information:
- Supported Interfaces:
- SerialUSB
Warranty
- Limited Warranty: 5 Year
Power Description
- Input Voltage: 5 V DC
