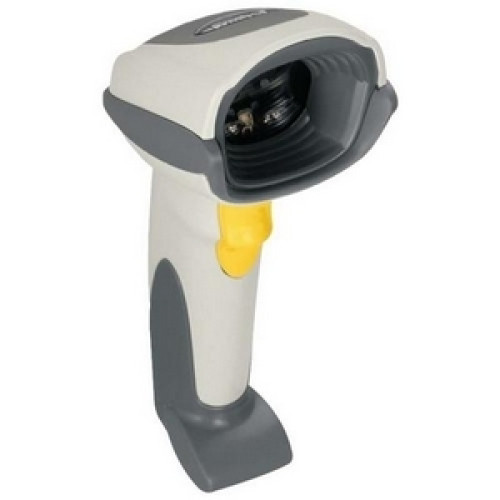

Symbol DS6607-SR20001 Barcode Scanner Symbol DS6607-SR20001 Barcode Scanner Symbol DS6607-SR20001 Barcode Scanner

Symbol DS6607-SR20001 Barcode Scanner
Part #: DS6607-SR20001 | SKU: SYM15338

The DS 6607, with its CCD sensor, is ideal for capturing linear and 2D barcodes as well as image capture and transfer. A USB connection insures quick data communications. The DS 6607 features omnidirectional reading, making scans faster and speeding up inventory and checkout processes. The DS 6607's sturdy construction makes it perfect for retail point of sale stations.

Symbol DS6607-SR20001 Barcode Scanner

Part Details: Imager (USB/RS-232, Far Focus) - Color: Cash Register White
Need a different version of the Symbol DS 6607 Barcode Scanner? View all 5 configurations

Additional Information

Manufacturer Symbol
Model Name DS 6607
Scanner Capability 1D
Symbol DS 6607 Specs Symbol DS 6607 Specs (pdf)

Technical Information

  • Form Factor: Handheld Scanner
  • Barcode Dimension: 1D/2D
  • Symbologies Supported:
    • UPC/EAN
    • UPC/EAN with Supplementals
    • UCC/EAN 128
    • JAN-8
    • JAN-13
    • Code 39
    • Trioptic Code 39
    • Code 128
    • Code 128 Full ASCII
    • Codabar (NW7)
    • Interleaved 2 of 5
    • Discrete 2 of 5
    • Code 93
    • Bookland EAN
    • IATA
    • Code 11
    • Code 32
    • IATA
    • UCC/EAN RSS
    • RSS Variants
    • PDF 417
    • Micro PDF417
    • MaxiCode
    • MaxiCode
    • DataMatrix
    • QR Code
    • U.S. Postnet
    • U.S. Planet
    • U.K. Postal
    • Japanese Post
    • Australian Post
    • Dutch Postal
  • Scanner Type: Imager with Laser Aiming
  • Interface Options:
    • RS-232
    • USB
  • Interface Connectivity: Corded
  • Scan Pattern: Omnidirectional
  • Input Voltage: 5 V DC
  • Power Supply: External
  • Depth of Field:
    • 2.8 - 5.8"@5mils - Code 39
    • 2.6 - 12.5" - Postnet
    • 0.6 - 14"@13mils - 100% UPC
    • 1 - 21"@20mils
    • 3.4 - 5.7"@6.6mils - PDF417
    • 2.6 - 6.8"@10mils - QR Code
    • 2.3 - 7.5"@10mils - MicroPDf
    • 2.3 - 8.0"@10mils - Data Matrix
    • 2.1 - 8.9"@10mils - PDF417
    • 1.5 - 12.8"@35mils - Maxicode

General Information

  • Manufacturer: Symbol
  • Product Name: DS6607 SR Digital Barcode Scanner

Physical Characteristics

  • Dimensions: 6.55" (166.37mm) x 2.82" (71.63mm) x 4.72" (119.89mm)
  • Weight: 6.04 oz - Without Cable
  • Color: White

Agency Approvals

  • Agency Approvals:
    • UL1950
    • CSA C22.2 No. 950
    • EN60950/IEC950
    • CDRH Class II
    • IEC Class 2
    • FCC Part 15 Class B
    • ICES-003 Class B
    • European Union EMC Directive
    • Australian SMA

Environmental Conditions

  • Temperature:
    • 0°C (32°F) to 50°C (122°F) Operating
    • -40°C (-40°F) to 70°C (158°F) Storage
  • Humidity: 5 to 95% Non-condensing

Warranty

  • Manufacturer Warranty: 5 Year(s)
