Symbol Barcode Readers and Hand Held Computer

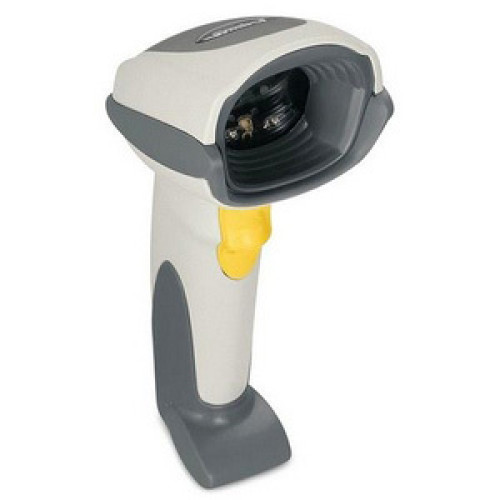

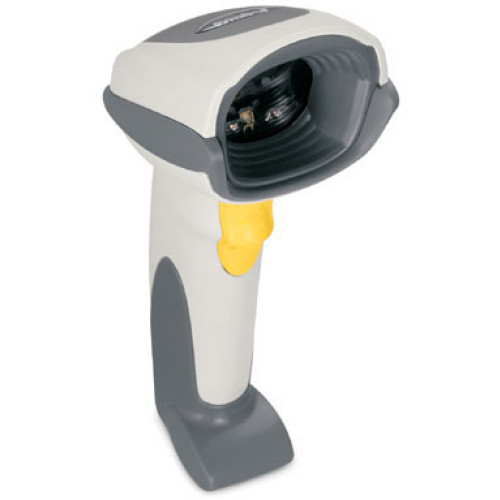

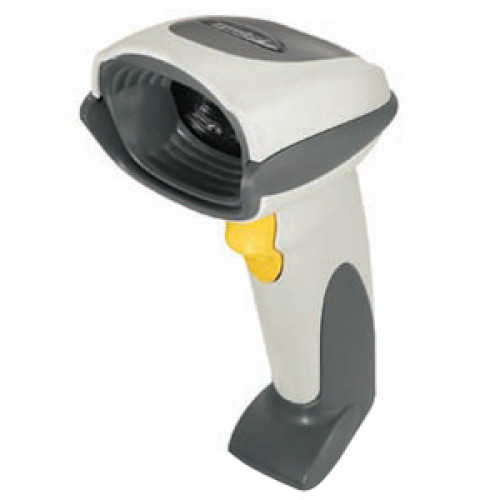

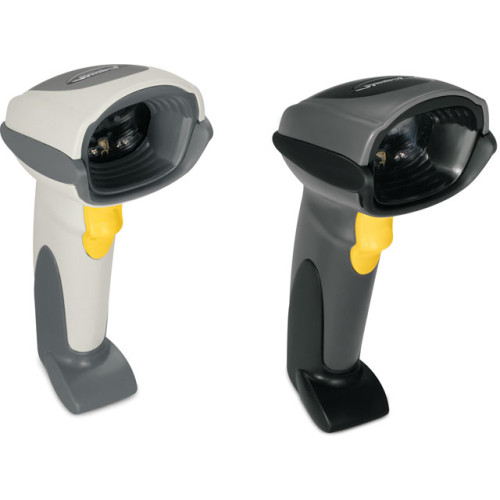

Symbol DS6707 Barcode Scanner
Part #: DS6707-HD20001ZZR | SKU: SYM72658

Maximize employee productivity and streamline business processes in the retail store, at the post office, in the pharmacy and on the manufacturing floor with a handheld device from Symbol. With the DS6700, you get the power of a bar code scanner, digital camera and document scanner in a single, cost-effective device. From point-and-shoot simplicity to extremely reliable bar code scanning and the ability to scan full size documents including fine print the DS6700 is the right tool for the job.

Symbol DS6707 Barcode Scanner

Part Details: 2D Scanner Only - Color: White. Cables and accessories must be purchased separately. These include USB (Part# CBA-U01-S07ZAR) or RS-232 Serial cables (Part# CBA-R01-S07PAR) and a Power supply (Part# PWRS-14000-253R).

Need a different version of the Symbol DS6707 Barcode Scanner? View all 23 configurations

Additional Information

Color	White
Included Cables	Scanner Only - No Cable
Manufacturer	Symbol
Model Name	DS6707
Product Condition	New
Scan Pattern	Area
Scanner Capability	2D
Scanner Type	Imager

Symbol DS6707 Specs (pdf)

Technical Information

Barcode Dimension:
- 1D
- 2D
Scan Pattern: Omni-directional
Connectivity Technology: Cable
Light Source: Laser
Image Sensor: Imager
Barcode Symbology Supported:
- 1-D:
- UPC/EAN and with supplementals
- Code 39
- Code 39 Full
- ASCII
- Tri-optic Code 39
- RSS variants
- UCC/EAN 128
- Code 128
- Code 128 Full ASCII
- Code 93
- Codabar (NW1)
- Interleaved 2 of 5
- Discrete 2 of 5
- MSI
- Codell
- IATA
- Bookland EAN
- Code 32
- PDF417 (and Variants):
- PDF417
- microPDF417 and composite codes
- Postal:
- U.S. Postnet and Planet
- U.K.
- Japan
- Australian
- Dutch
- 2-D:
- MaxiCodde
- DataMatrix (ECC 200)
- QR Code
- 1-D:
- UPC/EAN and with supplementals
- Code 39
- Code 39 Full
- ASCII
- Tri-optic Code 39
- RSS variants
- UCC/EAN 128
- Code 128
- Code 128 Full ASCII
- Code 93
- Codabar (NW1)
- Interleaved 2 of 5
- Discrete 2 of 5
- MSI
- Codell
- IATA
- Bookland EAN
- Code 32
- PDF417 (and Variants):
- PDF417
- microPDF417 and composite codes
- Postal:
- U.S. Postnet and Planet
- U.K.
- Japan
- Australian
- Dutch
- 2-D:
- MaxiCodde
- DataMatrix (ECC 200)
- QR Code
Depth of Field:
- 0.84" - 2.42"@3 mil - Code 39
- 0.42" - 3.13"@4 mil - Code 39
- 0.29" - 3.38"@5 mil - Code 39
- 4.38"@7.50 mil - Code 39
- 0.59" - 4.96"@10 mil - Code 39
- 0.42" - 8.21"@20 mil - Code 39
- 0.21" - 5.13"@13 mil - 100% UPC
- 0.63" - 3.10"@6.67 mil - PDF417
- 0.46" - 3.54"@10 mil - PDF417
- 1.33" - 4.46"@15 mil - PDF417
- 1.04" - 2.13"@4 mil - Data Matrix
- 0.79" - 2.50"@5 mil - Data Matrix
- 0.50" - 3"@7.50 mil - Data Matrix
- 0.54" - 3.50"@10 mil - Data Matrix
- 1.13" - 2.17"@4 mil - QR Code
- 0.88" - 2.54"@5 mil - QR Code
- 0.67" - 3"@7.50 mil - QR Code
- 0.46" - 3.42"@10 mil - QR Code

General Information

Product Type: Handheld Barcode Scanner
Brand Name: Motorola
Manufacturer: Motorola, Inc
Product Model: DS6707
Product Name: Symbol DS6707 Barcode Reader
Product Line: Symbol

Physical Characteristics

Height: 6.6"
Width: 2.8"
Depth: 4.7"
Color: White
Weight (Approximate): 6.40 oz

Interfaces/Ports

Host Interface:
- Serial
- USB

Other

Green Compliant: Yes
Green Compliance Certificate/Authority: RoHS

Warranty

Limited Warranty: 5 Year

Extended Details
