Symbol LS2208-1AZR0100D Barcode Scanner Symbol LS2208-1AZR0100D Barcode Scanner Symbol LS2208-1AZR0100D Barcode Scanner Symbol LS2208-1AZR0100D Barcode Scanner Symbol LS2208-1AZR0100D Barcode Scanner

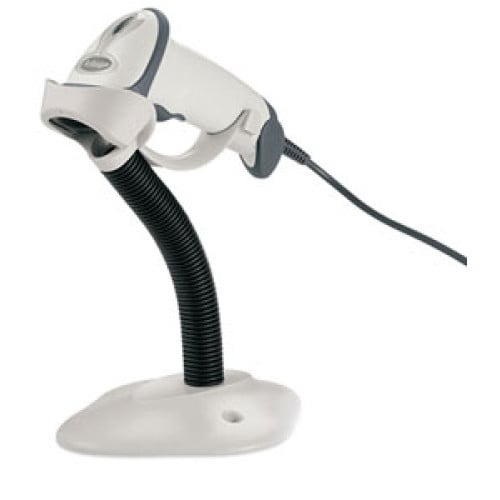

Symbol LS2208-1AZR0100D Barcode Scanner
Part #: LS2208-1AZR0100D | SKU: SYM7664

From the checkout line to the back room, the LS2208 helps you make the most of your application-specific solution in a variety of environments including retail (Point of sale, in store inventory tracking), health care (Pharmacy, inventory control), and education (Book checkout, inventory and asset tracking). In any industry, the high-value LS2208 handheld scanner offers superior performance, excellent reliability and user-friendly ergonomics to create a more productive mobile environment. All scanners read RSS codes & feature a 5 year warranty for NEW scanners only.

Symbol LS2208-1AZR0100D Barcode Scanner

Part Details: Multiple interface scanner (RS-232 DB9 Female, TxD on 2, 6 ft. Straight: 25-32465-20, No Synapse Smart Cable, Intellistand 20-61019-01or 02 and N.A. Power supply 50-14000-008R) - Color: Cash Register White
Need a different version of the Symbol LS2208 Barcode Scanner? View all 40 configurations

Additional Information

Color White
Form Factor Handheld
Included Cables RS-232 Serial
Interface Options Serial
Manufacturer Symbol
Model Name LS2208
Scanner Capability 1D
Scanner Type Laser
Symbol LS2208 Specs Symbol LS2208 Specs (pdf)

Technical Information

  • Form Factor: Handheld Scanner
  • Resolution: 5 mil(s)
  • Symbologies Supported:
    • UPC/EAN
    • UPC/EAN with Supplementals
    • UCC/EAN 128
    • Code 39
    • Code 39 Full ASCII
    • Code 39 TriOptic
    • Code 128
    • Code 128 Full ASCII
    • Codabar
    • Interleaved 2 of 5
    • Discrete 2 of 5
    • Code 93
    • Code 11
    • IATA
    • RSS Variants
    • China Post 2 of 5
  • Scanner Type: Laser
  • Scan Rate: 100 Scans/sec typical
  • Interface Options:
    • RS-232
    • Keyboard Wedge
    • Wand
    • IBM 468X/469X
    • Undecoded
    • USB
    • Synapse
  • Interface Connectivity: Corded
  • Scan Pattern: Bi-directional
  • Input Voltage: 110 V AC
  • Power Supply: External Included
  • Depth of Field:
    • 2.5 - 6"@5mils
    • 1.5 - 10"@7.5mils
    • 1.0 - 14.5"@10mils
    • 0 - 17" - 100% UPC
    • 0 - 23"@20mils

General Information

  • Manufacturer: Symbol
  • Product Name: LS 2208 Barcode Scanner

Physical Characteristics

  • Dimensions: 6" (152.4mm) x 2.5" (63.5mm) x 3.34" (84.84mm)
  • Weight: 5.15 oz
  • Color: White

Agency Approvals

  • Agency Approvals:
    • UL1950
    • CSA C22.2 No. 950
    • EN60950/IEC950
    • FCC Part 15 Class B
    • ICES-003 Class B
    • European Union EMC Directive
    • Australian SMA
    • Taiwan EMC
    • Japan VCCI/MITI/Dentori
    • CDRH Class II
    • IEC Class 2

Other

  • Package Contents:
    • LS 2208 Barcode Scanner
    • RS232 (Std Cable) (25-32465-20) (DB9 Female, TxD on 2, 6 ft. Straight)
    • 110V Power Supply (50-14000-008)
    • Stand (20-61019-01)
    • CD ROM (SW-61077-02)
  • Cables Included: RS-232

Environmental Conditions

  • Temperature:
    • 32°F (0°C) to 122°F (50°C) Operating
    • -40°F (-40°C) to 158°F (70°C) Storage
  • Humidity: 5 to 95% Non-condensing

Warranty

  • Manufacturer Warranty: 5 Year(s)
