Symbol LS2208-1AZR0100E Barcode Scanner Symbol LS2208-1AZR0100E Barcode Scanner Symbol LS2208-1AZR0100E Barcode Scanner Symbol LS2208-1AZR0100E Barcode Scanner Symbol LS2208-1AZR0100E Barcode Scanner

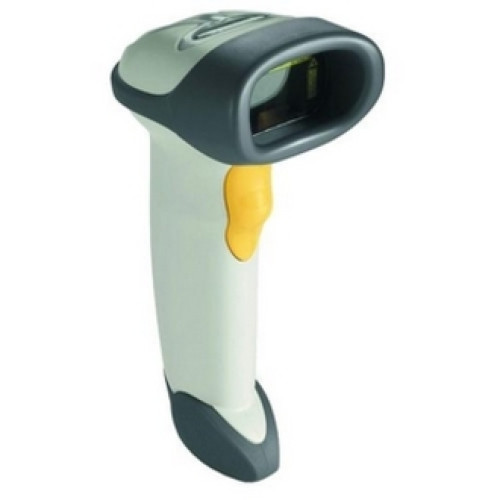

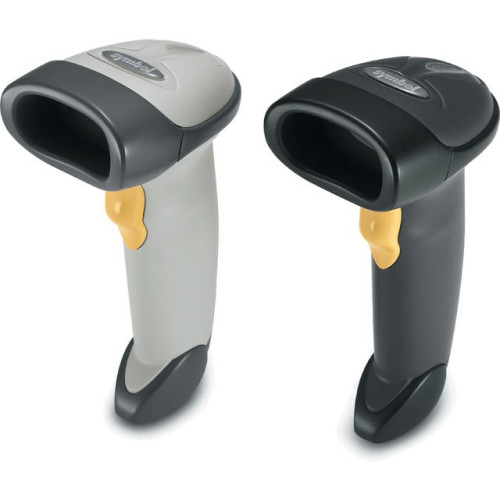

Symbol LS2208-1AZR0100E Barcode Scanner
Part #: LS2208-1AZR0100E | SKU: SYM23744

From the checkout line to the back room, the LS2208 helps you make the most of your application-specific solution in a variety of environments including retail (Point of sale, in store inventory tracking), health care (Pharmacy, inventory control), and education (Book checkout, inventory and asset tracking). In any industry, the high-value LS2208 handheld scanner offers superior performance, excellent reliability and user-friendly ergonomics to create a more productive mobile environment. All scanners read RSS codes & feature a 5 year warranty for NEW scanners only.

Symbol LS2208-1AZR0100E Barcode Scanner

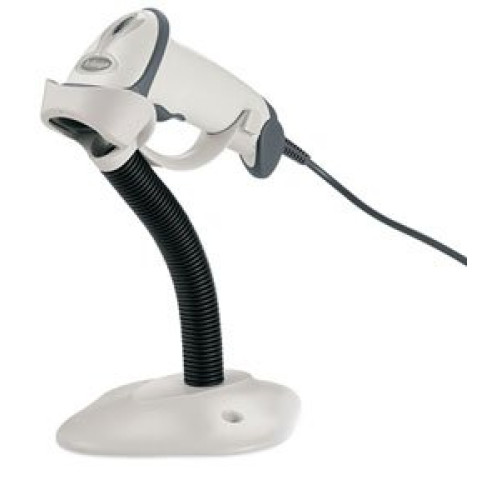

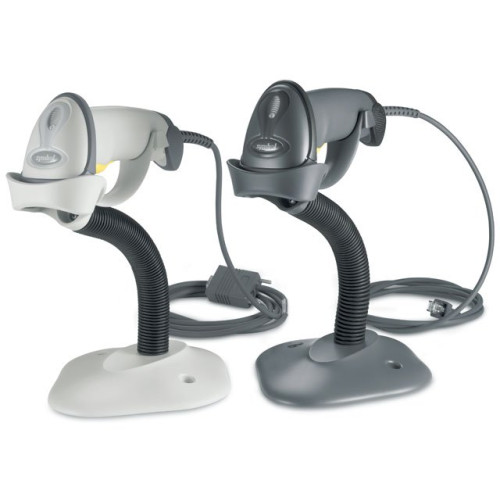

Part Details: LS2208, RS-232 kit, White. Includes 9 ft. RS-232 cable, 220V, Intellistand.
Need a different version of the Symbol LS2208 Barcode Scanner? View all 40 configurations

Additional Information

Manufacturer Symbol
Model Name LS2208
Scanner Capability 1D
Symbol LS2208 Specs Symbol LS2208 Specs (pdf)

Technical Information

  • Scan Pattern: Bi-directional
  • Scan Rate: 100 scan/s
  • Connectivity Technology: Cable
  • Light Source: Laser
  • Image Sensor: Linear
  • Barcode Symbology Supported:
    • UPC/EAN
    • UPC/EAN with Supplementals
    • UCC/EAN 128
    • Code 39
    • Code 39 Full ASCII
    • Code 39 TriOptic
    • Code 128
    • Code 39 Full ASCII
    • Codabar
    • Interleaved 2 of 5
    • Discrete 2 of 5
    • Code 93
    • Code 11
    • IATA
    • RSS Variants
    • China Post 2 of 5
    • UPC/EAN
    • UPC/EAN with Supplementals
    • UCC/EAN 128
    • Code 39
    • Code 39 Full ASCII
    • Code 39 TriOptic
    • Code 128
    • Code 39 Full ASCII
    • Codabar
    • Interleaved 2 of 5
    • Discrete 2 of 5
    • Code 93
    • Code 11
    • IATA
    • RSS Variants
    • China Post 2 of 5
  • Depth of Field:
    • 2.50" - 6"@5 mil
    • 1.50" - 10"@7.50 mil
    • 1" - 14.50"@10 mil
    • 0 mil - 17"@ - 100% UPC
    • 0 mil - 23"@20 mil

General Information

  • Product Type: Handheld Barcode Scanner
  • Brand Name: Motorola
  • Manufacturer: Motorola, Inc
  • Product Model: LS2208
  • Product Name: Symbol LS2208 Barcode Reader
  • Product Line: Symbol

Physical Characteristics

  • Height: 6"
  • Width: 2.5"
  • Depth: 3.3"
  • Color: White
  • Weight (Approximate): 5.15 oz

Interfaces/Ports

  • Host Interface: Multi-interface

Other

  • Package Contents:
    • Symbol LS2208-SR20001 Barcode Reader
    • RS232 Cable assembly (25-32465-20) DB9 Female, TxD on 2, 6 ft.
    • 220V Power Supply (50-14000-009)
    • Stand (20-61019-01)
    • CD ROM (SW-61077-02)
    • Symbol LS2208-SR20001 Barcode Reader
    • RS232 Cable assembly (25-32465-20) DB9 Female, TxD on 2, 6 ft.
    • 220V Power Supply (50-14000-009)
    • Stand (20-61019-01)
    • CD ROM (SW-61077-02)
  • Certifications & Standards:
    • Electrical Safety:
    • UL1950
    • CSA C22.2 No. 950
    • EN60950/IEC950
    • EMI/RFI:
    • FCC Part 15 Class B
    • ICES-003 Class B
    • European Union EMC Directive
    • Australian SMA
    • Taiwan EMC
    • Japan VCCI/MITI/Dentori
    • Laser Safety:
    • CDRH Class II
    • IEC Class 2
  • Additional Information:
    • Supported Interfaces:
    • Serial
    • Keyboard Wedge
    • Wand Emulation
    • IBM 468X/469X
    • USB
    • Synapse

Warranty

  • Limited Warranty: 5 Year

Power Description

  • Input Voltage: 220 V AC
Extended Details
