Symbol LS3408-ER20005R Barcode Scanner Symbol LS3408-ER20005R Barcode Scanner Symbol LS3408-ER20005R Barcode Scanner Symbol LS3408-ER20005R Barcode Scanner

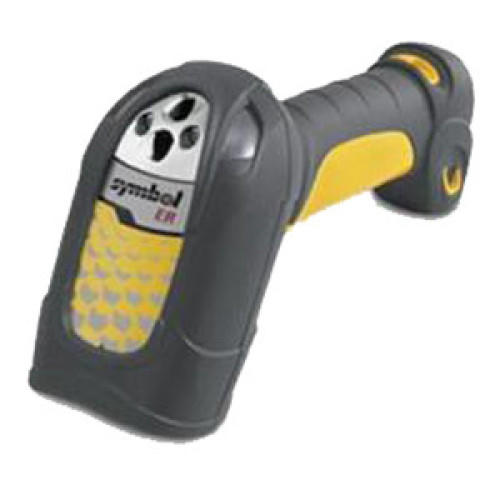

Symbol LS3408-ER20005R Barcode Scanner
Part #: LS3408-ER20005R | SKU: SYM27717

The rugged LS 3408ER handheld scanner from Symbol Technologies, the Enterprise Mobility Company, delivers superior performance and versatility for your scan-intensive industrial applications. In the yard, warehouse, distribution center, manufacturing plant or retail store, the LS 3408ER handheld scanner offers best-in-class performance, excellent reliability and user-friendly ergonomics to create a more productive mobile environment. Multiple on-board interfaces ensure flexible plug and play host connectivity.

Symbol LS3408-ER20005R Barcode Scanner

Part Details: Scanner Only - 1D Laser - Extended Range - Cables and accessories sold separately
Need a different version of the Symbol LS3408-ER Barcode Scanner? View all 2 configurations

Additional Information

Color Yellow
Connectivity Corded
Form Factor Handheld
Included Cables Scanner Only - No Cable
Manufacturer Symbol
Model Name LS3408-ER
Scanner Capability 1D
Scanner Type CCD, Imager
Symbol LS3408-ER Specs Symbol LS3408-ER Specs (pdf)

Technical Information

  • Scan Rate: 36 scan/s
  • Connectivity Technology: Cable
  • Light Source: Laser
  • Barcode Symbology Supported:
    • UPC/EAN
    • UPC/EAN with Supplementals
    • UCC/EAN 128
    • JAN-8
    • JAN-13
    • Code 39
    • Code 39 Full ASCII
    • Code 39 TriOptic
    • Code 128
    • Code 128 Full ASCII
    • Codabar (NW7)
    • Interleaved 2 of 5
    • Discrete 2 of 5
    • Code 93
    • MSI
    • Code 11
    • Code 32
    • Bookland EAN
    • IATA
    • UCC/EAN RSS
    • UCC/EAN RSS Variants
    • UPC/EAN
    • UPC/EAN with Supplementals
    • UCC/EAN 128
    • JAN-8
    • JAN-13
    • Code 39
    • Code 39 Full ASCII
    • Code 39 TriOptic
    • Code 128
    • Code 128 Full ASCII
    • Codabar (NW7)
    • Interleaved 2 of 5
    • Discrete 2 of 5
    • Code 93
    • MSI
    • Code 11
    • Code 32
    • Bookland EAN
    • IATA
    • UCC/EAN RSS
    • UCC/EAN RSS Variants
  • Maximum Scan Resolution: 7 mil
  • Depth of Field:
    • 0.25" - 20"@7.50 mil
    • 2" - 32"@10 mil
    • 3" - 69"@15 mil
    • 3" - 94"@20 mil
    • 15" - 15 ft@55 mil
    • 0 mil - 30.42 ft@70 mil
    • 0 mil - 45 ft@100 mil

General Information

  • Product Type: Handheld Barcode Scanner
  • Brand Name: Motorola
  • Manufacturer: Motorola, Inc
  • Product Model: LS3408-ER
  • Product Name: Symbol LS3408-ER Barcode Reader
  • Product Line: Symbol

Physical Characteristics

  • Height: 7.3"
  • Width: 4.8"
  • Depth: 2.9"
  • Color:
    • Yellow
    • Black
  • Weight (Approximate): 12.56 oz

Interfaces/Ports

  • Host Interface: Multi-interface

Other

  • Green Compliant: Yes
  • Green Compliance Certificate/Authority: RoHS
  • Package Contents:
    • LS3408-ER Barcode Reader
    • Quick Start Guide
    • LS3408-ER Barcode Reader
    • Quick Start Guide
  • Certifications & Standards:
    • RoHS
    • Input Transient Protection:
    • IEC 1000-4-(2,3,4,5,6,11)
    • EMI/RFI:
    • FCC Part 15 Class B
    • ICES-003 Class B
    • European Union EMC Directive
    • Japan VCCI/MITI/Dentori
    • Laser Safety:
    • IEC825-1 Class 2
  • Additional Information:
    • Supported Interfaces:
    • Serial
    • Keyboard Wedge
    • Wand Emulation
    • IBM 468X/469X
    • USB
    • Synapse

Warranty

  • Limited Warranty: 3 Year

Power Description

  • Input Voltage: 14 V DC
Extended Details
