Symbol LS3408-FZ20005R Barcode Scanner Symbol LS3408-FZ20005R Barcode Scanner Symbol LS3408-FZ20005R Barcode Scanner Symbol LS3408-FZ20005R Barcode Scanner

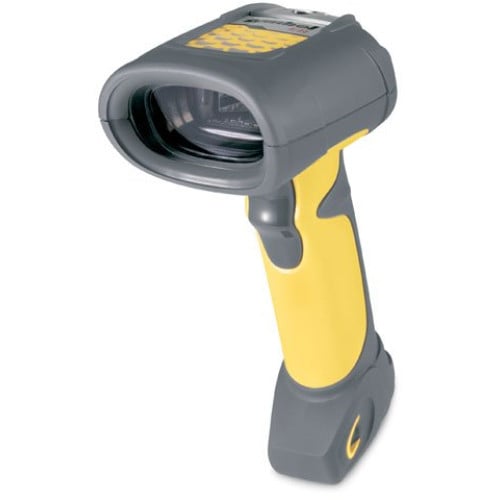

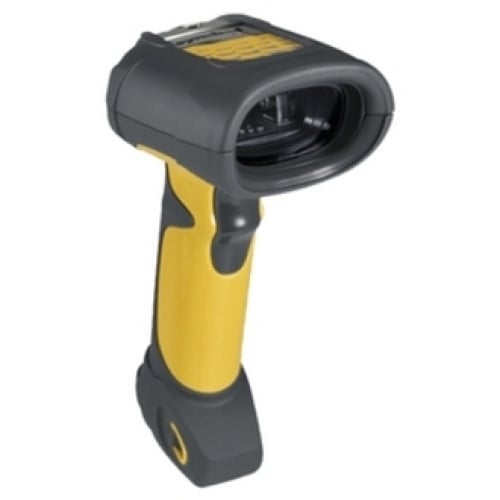

Symbol LS3408-FZ20005R Barcode Scanner
Part #: LS3408-FZ20005R | SKU: SYM27718

The rugged LS 3408FZ handheld scanner from Symbol Technologies, the Enterprise Mobility Company, features fuzzy logic technology for fast and accurate reading of damaged, dirty and poorly printed one-dimensional (1D) bar codes typically found in industrial environments. In the yard, warehouse, distribution center, manufacturing plant or retail store, the LS 3408FZ handheld scanner offers superior performance, reliability and user-friendly ergonomics to improve productivity. Multiple on-board interfaces ensure flexible plug and play host connectivity.

Symbol LS3408-FZ20005R Barcode Scanner

Part Details: Scanner Only - 1D Laser - Fuzzy Logic - Cables and accessories sold separately - For full kit purchase (Part# LS3408-FZAR0200AR)
Need a different version of the Symbol LS3408-FZ Barcode Scanner? View all 5 configurations

Additional Information

Color Yellow
Connectivity Corded
Form Factor Handheld
Included Cables Scanner Only - No Cable
Interface Options USB
Manufacturer Symbol
Model Name LS3408-FZ
Scanner Capability 1D
Scanner Type CCD, Imager
Symbol LS3408-FZ Specs Symbol LS3408-FZ Specs (pdf)

Technical Information

  • Barcode Dimension: 1D
  • Scan Rate: 36 scan/s
  • Connectivity Technology: Cable
  • Light Source: Laser
  • Barcode Symbology Supported:
    • UPC/EAN
    • UPC/EAN Supplementals
    • UCC/EAN 128
    • JAN-8
    • JAN-13
    • Code 39
    • Code 39 Full ASCII
    • Code 39 TriOptic
    • Code 128
    • Code 128 Full ASCII
    • Codabar (NW7)
    • Interleaved 2 of 5
    • Discrete 2 of 5
    • MSI
    • Code 11
    • Code 32
    • Bookland EAN
    • IATA
    • UCC/EAN RSS
    • RSS Variants
    • Code 93
    • UPC/EAN
    • UPC/EAN Supplementals
    • UCC/EAN 128
    • JAN-8
    • JAN-13
    • Code 39
    • Code 39 Full ASCII
    • Code 39 TriOptic
    • Code 128
    • Code 128 Full ASCII
    • Codabar (NW7)
    • Interleaved 2 of 5
    • Discrete 2 of 5
    • MSI
    • Code 11
    • Code 32
    • Bookland EAN
    • IATA
    • UCC/EAN RSS
    • RSS Variants
    • Code 93
  • Maximum Scan Resolution: 5 mil

General Information

  • Product Type: Handheld Barcode Scanner
  • Brand Name: Motorola
  • Manufacturer: Motorola, Inc
  • Product Model: LS3408-FZ
  • Product Name: Symbol LS3408-FZ Barcode Reader
  • Product Line: Symbol

Physical Characteristics

  • Height: 7.3"
  • Width: 4.8"
  • Depth: 2.9"
  • Color:
    • Yellow
    • Black
  • Weight (Approximate): 12.35 oz

Interfaces/Ports

  • Host Interface: Multi-interface

Other

  • Green Compliant: Yes
  • Green Compliance Certificate/Authority: RoHS
  • Package Contents:
    • Symbol LS3408-FZ Barcode Reader
    • Quick Start Guide
    • Symbol LS3408-FZ Barcode Reader
    • Quick Start Guide
  • Certifications & Standards:
    • RoHS Compliant
    • Input Transient Protection:
    • IEC 1000-4-(2,3,4,5,6,11)
    • EMI/RFI:
    • FCC Part 15 Class B
    • ICES-003 Class B
    • European Union EMC Directive
    • Japan VCCI/MITI/Dentori
    • Laser Safety:
    • IEC825-1 Class 2
  • Additional Information:
    • Supported Interfaces:
    • Serial
    • Keyboard Wedge
    • Wand Emulation
    • Scanner Emulation
    • IBM 4683
    • USB
    • Synapse

Warranty

  • Limited Warranty: 3 Year

Power Description

  • Input Voltage: 14 V DC
Extended Details
