| Included Cables | AT/PS2 Keyboard Wedge |
|---|---|
| Interface Options | PS/2 Keyboard Wedge |
| Manufacturer | Symbol |
| Model Name | LS3408-FZ |
| Scanner Capability | 1D |
| Scanner Type | CCD, Imager |

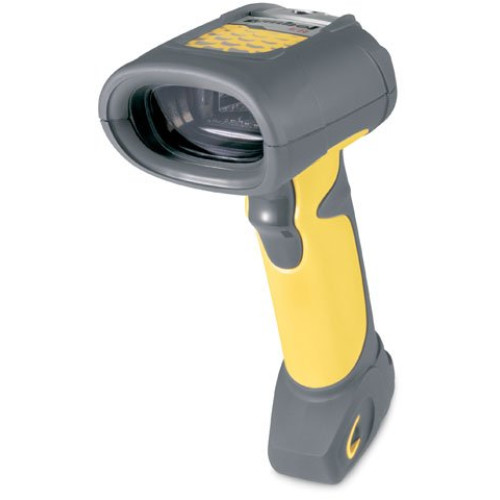

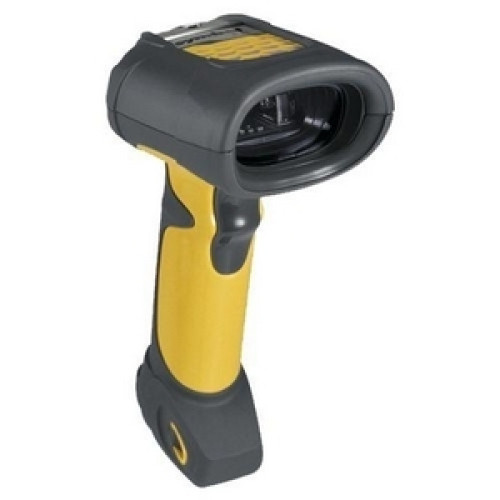

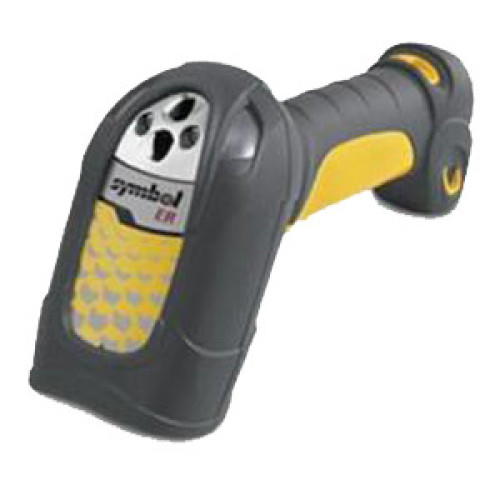

Symbol LS3408-FZ Specs
Technical Information
- Barcode Dimension: 1D
- Scan Rate: 36 scan/s
- Connectivity Technology: Cable
- Light Source: Laser
- Barcode Symbology Supported:
- UPC/EAN
- UPC/EAN with Supplementals
- JAN-8
- JAN-13
- UCC-128
- Code 39
- Code 39 Full ASCII
- Code 39 TriOptic
- Code 128
- Code 128 Full ASCII
- Codabar (NW7)
- Interleaved 2 of 5
- Discrete 2 of 5
- Code 93
- MSI
- Code 11
- Code 32
- Bookland EAN
- IATA
- UCC/EAN RSS
- RSS Variants
- UPC/EAN
- UPC/EAN with Supplementals
- JAN-8
- JAN-13
- UCC-128
- Code 39
- Code 39 Full ASCII
- Code 39 TriOptic
- Code 128
- Code 128 Full ASCII
- Codabar (NW7)
- Interleaved 2 of 5
- Discrete 2 of 5
- Code 93
- MSI
- Code 11
- Code 32
- Bookland EAN
- IATA
- UCC/EAN RSS
- RSS Variants
- Maximum Scan Resolution: 5 mil
- Depth of Field:
- 2.50" - 7.25"@5 mil
- 2" - 15.75"@7.50 mil
- 1" - 24"@13 mil - 100% UPC
- 0 mil - 39.50"@20 mil - 80% MRD
- 0 mil - 26.50"@20 mil - 31% MRD
- 2" - 67"@40 mil
- 4" - 84"@55 mil
General Information
- Product Type: Handheld Barcode Scanner
- Brand Name: Motorola
- Manufacturer: Motorola, Inc
- Product Model: LS3408-FZ
- Product Name: Symbol LS3408-FZ Barcode Reader
- Product Line: Symbol
Physical Characteristics
- Height: 7.3"
- Width: 4.8"
- Depth: 2.9"
- Weight (Approximate): 12.35 oz
Interfaces/Ports
- Host Interface: Multi-interface
Other
- Package Contents:
- Symbol LS3408-FZ Barcode Reader
- 9ft Coiled Keyboard Wedge Cable
- Symbol LS3408-FZ Barcode Reader
- 9ft Coiled Keyboard Wedge Cable
- Certifications & Standards:
- Input Transient Protection:
- IEC 1000-4-(2,3,4,5,6,11)
- Laser Safety:
- IEC825-1 Class 2
- EMI/RFI:
- FCC Part 15 Class B
- ICES-003 Class B
- European Union
- EMC Directive
- Japan VCCI/MITI/Dentori
- Additional Information:
- Supported Interfaces:
- Serial
- Keyboard Wedge
- Wand Emulation
- IBM 468X/469X
- USB
Warranty
- Limited Warranty: 3 Year
Power Description
- Input Voltage: 14 V DC
Recommended Accessories for Model: Symbol LS3408-FZAK0200ZR Barcode Scanner
-
Zebra CBA-R02-C09PAR Cables, Connectors, and Adapters
Part #: CBA-R02-C09PAR | SKU: ZEB20870RS-232 Cable - 9 ft. Coiled - STD-DB9 Female TXD on 2 - Power supply sold separatelyMSRP: $54.07 Price: $38.27 -
Zebra 23844-00-00R Power Device
Part #: 23844-00-00R | SKU: ZEB26223US AC Line Cord - 7.5' Length - Compatible with power supplies (Part# KT-14000-148R), (Part# 50-14000-241R), and (Part# PWRS-14000-148R)MSRP: $17.09 Price: $14.81 -
Zebra CBA-R03-C12PAR Cables, Connectors, and Adapters
Part #: CBA-R03-C12PAR | SKU: ZEB29338Cables - Connectors - and Adapters - Zebra - Cable - RS232 - DB9 Female Connector - 12' (3.6M) Coiled - TXD On 2MSRP: $83.30 Price: $58.35 -
Zebra CBA-U03-S07ZAR Cables, Connectors, and Adapters
Part #: CBA-U03-S07ZAR | SKU: ZEB26307(7 Feet Straight, USB, Power Plus CONN)$61.37 -
Zebra 50-15400-031 Carrying and Protective Accessories
Part #: 50-15400-031 | SKU: ZEB9483Pulley (with Retractable Cable)$215.64
Recommended Warranties for Model: Symbol LS3408-FZAK0200ZR Barcode Scanner
-
Zebra Z1AS-LS3408-5C03 Service Contract
Part #: Z1AS-LS3408-5C03 | SKU: ZEB464201Zebra OneCare Select with Comprehensive Coverage - 5 Year - Warranty - 24 x 7 Same Day - Exchange - Electronic and Physical$205.08
