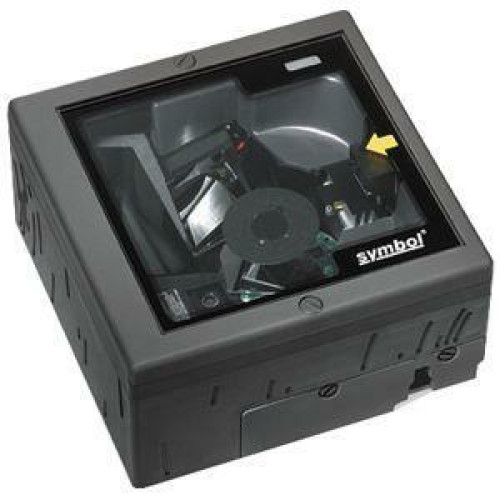

Symbol LS7808 Barcode Scanner
Part #: LS7808-BNNU0100ZR | SKU: SYM21031

Accelerate the checkout process and create a sleek, uncluttered sales counter with the LS7808 in-counter slot scanner. With high first-pass read rates from any angle, it gives your cashiers more time to focus on providing customers with personalized service. And, because this scanner is so intuitive and easy-to-use, even inexperienced cashiers are up and running in minutes.

Symbol LS7808 Barcode Scanner

Part Details: USB Kit -1D Laser - In-counter Presentation - EAS Antenna - USB cable - Power supply sold separately

Additional Information

Color Black
Connection USB
Connectivity Corded
Embedded Scale Scanner Only
Form Factor In Counter
Glass Type Tin Oxide
Included Cables USB
Included Features Scanner Only
Manufacturer Symbol
Model Name LS7808
Product Condition New
Ruggedness General Purpose
Scan Pattern Area
Scanner Capability 1D
Scanner Type Laser, Omnidirectional
Specialty Encoding None

Technical Information

  • Barcode Dimension: 1D
  • Scan Pattern: Omni-directional
  • Scan Rate: 1800 scan/s
  • Connectivity Technology: Cable
  • Light Source: Laser
  • Barcode Symbology Supported:
    • UPC-A
    • UPC-E
    • EAN-8
    • EAN-13
    • UPC/EAN Supplementals
    • Code 39
    • Code 39 Full ASCII
    • Interleaved 2 of 5
    • Discrete 2 of 5
    • Code 128
    • UCC/EAN 128
    • ISBT 128
    • Codabar (NW7)
    • Code 93
    • Code 11
    • RSS Variants
    • UPC-E1
    • UPC-A
    • UPC-E
    • EAN-8
    • EAN-13
    • UPC/EAN Supplementals
    • Code 39
    • Code 39 Full ASCII
    • Interleaved 2 of 5
    • Discrete 2 of 5
    • Code 128
    • UCC/EAN 128
    • ISBT 128
    • Codabar (NW7)
    • Code 93
    • Code 11
    • RSS Variants
    • UPC-E1
  • Maximum Scan Resolution: 5 mil
  • Depth of Field:
    • 0 mil - 0.50"@5 mil
    • 0 mil - 4"@7.80 mil
    • 0 mil - 5"@10.40 mil
    • 0 mil - 7"@13 mil

General Information

  • Product Type: Desktop Barcode Scanner
  • Brand Name: Motorola
  • Manufacturer: Motorola, Inc
  • Product Model: LS7808
  • Product Name: Symbol LS7808 Desktop Barcode Scanner
  • Product Line: Symbol

Physical Characteristics

  • Height: 3.1"
  • Width: 6"
  • Depth: 6"
  • Color: Black
  • Weight (Approximate): 1.90 lb

Interfaces/Ports

  • Host Interface: USB

Other

  • Green Compliant: Yes
  • Green Compliance Certificate/Authority:
    • RoHS
    • WEEE
  • Package Contents:
    • Symbol LS808 Barcode Reader
    • Quick Reference Guide
    • USB Type A Cable
    • Product CD
    • Symbol LS808 Barcode Reader
    • Quick Reference Guide
    • USB Type A Cable
    • Product CD
  • Certifications & Standards:
    • Electrical Safety:
    • UL 60950-1
    • CSA C22.2 No. 60950-1
    • EN 60950-1
    • IEC 60950-1
    • Laser Safety:
    • 21CFR1040.10 Class IIa
    • EN 60825-1
    • IEC60825-1 Class1
    • EMI/RFI:
    • FCC Part 15 Class B
    • ICES-003 Class B
    • EN 55022 Class B
    • EN 55024
    • Environmental:
    • RoHS
    • 2005 Sunrise
    • WEEE
  • Additional Information:
    • Supported Interfaces:
    • SerialIBM 468X/469XKeyboard WedgeUSBSynapse

Warranty

  • Limited Warranty: 3 Year

Power Description

  • Input Voltage: 5 V DC
