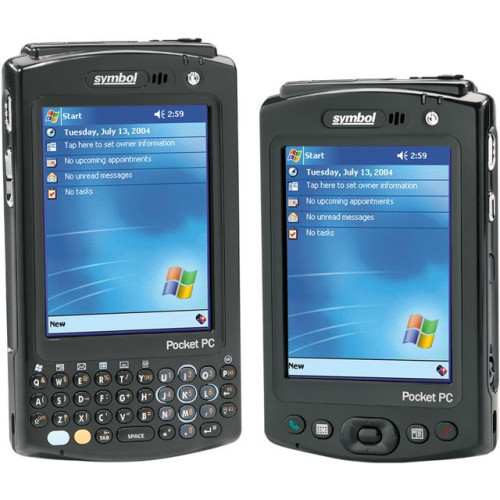

Symbol MC5040-PS0DBNEA8WR Mobile Computer

Symbol MC5040-PS0DBNEA8WR Mobile Computer
Part #: MC5040-PS0DBNEA8WR | SKU: SYM10518

The MC50 from Symbol Technologies is first in a class of mobile computers that combines an enhanced PDA-style form factor with optimal performance to operate enterprise-level applications. This small, lightweight mobile computer features advanced data capture options, flexible voice and data communication and easy wireless local area network (WLAN) synchronization.

Symbol MC5040-PS0DBNEA8WR Mobile Computer

Part Details: Wireless Enterprise Digital Assistant (802.11b WLAN, CSE600 Linear CMOS Imager with 1D support, 4 key PIM + Navigation keys, 3600 mAh Lithium-ion rechargeable Battery, Pocket PC 2003 and 64/64)
Need a different version of the Symbol MC50 Mobile Computer? View all 14 configurations

Additional Information

Display Resolution 240 x 320
Keypad 4 Keys
Manufacturer Symbol
Model Name MC50
Operating System Windows Mobile, Windows Mobile 2003 Second Edition
Operating Temperature 32 F - 155 F (0 C - 68.33 C)
Processor Marvell PXA270 (520 MHz)
RAM Memory 64 MB
Scanner Capability 1D
Scanner Type Imager
Style Phone-size
Symbol MC50 Specs Symbol MC50 Specs (pdf)

Technical Information

  • Operating System: Windows Mobile 2003 2nd Edition
  • Processor: Intel XScale 520MHz
  • Data Collection Type: Wireless
  • Wireless Security:
    • Airbeam Safe (VPN)
    • CCX
    • EAP-TLS
    • FIPS 140-2
    • Kerberos
    • Keyguard - (SBL TKIP)
    • LEAP
    • PEAP
    • TKIP
    • WEP 128 bit
    • WPA Home (PSK)
    • WPA Enterprise (EAP Authenticated)
  • Scanner Type: Imager - Linear CMOS CSE 600
  • Symbologies Supported:
    • Codabar
    • Code 39
    • Code 93
    • Code 128
    • Discrete 2 of 5
    • Interleaved 2 of 5
    • UCC/EAN 128
    • UPC/EAN

General Information

  • Manufacturer: Motorola
  • Product Line: Mobile Computer (MC)
  • Product Name: MC5040 Mobile Computer

Physical Characteristics

  • Display: 3.5" Color QVGA - Transflective TFT LCD
  • Display Resolution: 240 x 320
  • User Accessible Expansion Slot: SDIO
  • Keyboard:
    • 4 Key PIM Integrated
    • 1 Key Navigational Integrated
  • Battery Capacity: 3600 mAh
  • Battery Type: Lithium Ion - Included
  • Dimensions: 4.77" (121mm) x 2.95" (75mm) x 0.94" (24mm)
  • Weight: 8.3 oz

Agency Approvals

  • Agency Approvals:
    • RoHS Compliance
    • UL60950 (UL Marking)
    • CSA C22.2 No. 60950 (c-UL Marking)
    • EN60950/IEC 950
    • EU/International
    • EN 301 489-1, -17
    • EN61000-4-2: 1995, ESD ±8kV Air/ ±4kV Contact
    • EN61000-4-3: 1997, Radiated Immunity 3V/m
    • EN61000-4-4: 1995, EFT ± 0.5kV
    • EN61000-4-5: 1995, Surge ± 0.5kV
    • EN61000-4-6: 1

Environmental Conditions

  • Temperature:
    • 32°F (0°C) to 155°F (68°C) Operating
    • -13°F (-25°C) to 104°F (40°C) Storage
  • Humidity: 5 to 95% Non-condensing
  • Electrostatic Discharge (ESD):
    • +/-15kVdc Air Discharge
    • +/-8kVdc Direct Discharge
    • +/-8kVdc Indirect Discharge
  • Drop Spec: 3' To Tile Over Concrete

Other

  • Package Contents:
    • MC5040 Mobile Computer
    • Battery
    • Hand Strap
    • Stylus
    • Softcase

Wireless Data Communications

  • Network Connectivity: WLAN 802.11b
  • Maximum RF Data Rate Supported: 11 Mbps
  • Output Power: 14.5dBm
  • Antenna Connectors: Internal
  • Frequency Band/Bandwidth: 2.4GHz to 2.5GHz

Memory

  • RAM Memory: 64MB
  • Flash Memory: 64MB

Warranty

  • Manufacturer Warranty: 1 Year(s) Limited
Extended Details

Recommended Accessories for Model: Symbol MC5040-PS0DBNEA8WR Mobile Computer

  • Zebra 50-16000-182R Power Device
    Part #: 50-16000-182R | SKU: ZEB21798

    Line Cord - 6' Ungrounded - Compatible with 2-wire, ungrounded power supplies
    $7.85
    See Price in Cart (Why?)
    In Stock

  • Zebra PWR-BUA5V16W0WW Power Device
    Part #: PWR-BUA5V16W0WW | SKU: ZEB446660

    Power Device - Zebra - Level Vi AC/DC Power Supply Brick AC Input - 100-240V - 0.6A DC Output - 5.4V - 3A - 16W Requires - DC Line Cord And Country - Specific Un-Grounded AC Line Cord.
    $61.62
    See Price in Cart (Why?)
    In Stock

  • Zebra CBL-DC-382A1-01 Power Device
    Part #: CBL-DC-382A1-01 | SKU: ZEB458527

    DC line cord used with Mobile Computer's multi-slot cradles from a single LEVEL VI Power Supply PWR-BGA12V108W0WW.
    $42.01
    See Price in Cart (Why?)
    In Stock

  • Portsmith 190087-000 Cables, Connectors, and Adapters
    Part #: 190087-000 | SKU: POR223252

    Portsmith USB Data Transfer Cable - 9" USB Data Transfer Cable for Mobile Computer - First End: 1 x Type A Female USB - Second End: 1 x Type B Male Mini USB
    Price: $14.46

  • Harvard Battery HBM-SYMMC50LEXT Battery
    Part #: HBM-SYMMC50LEXT | SKU: HAR113877

    Replacement battery for the Symbol/Motorola MC 50 HIGH CAPACITY. Original part number 21-67315-01. 3.7 volts 3800 mAh.
    Price: $40.15
