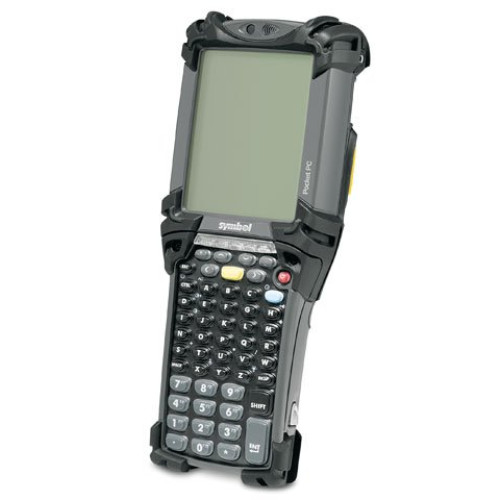

Symbol MC9090-KK0HJEFA6WR Mobile Computer
Part #: MC9090-KK0HJEFA6WR | SKU: SYM29489

The rugged MC9000-K Series from Symbol Technologies, The Enterprise Mobility Company, is an exceptionally reliable mobile computer that delivers real-time visibility into your company's mission-critical information. Three wireless radios offer maximum accessibility to help workers make more informed decisions. The MC9000-K provides multiple benefits: reduce errors, improve productivity and comply with increased safety standards, environmental or homeland security regulatory issues. It's ideal for your field, delivery, home office, operations, warehouse or factory applications.

Symbol MC9090-KK0HJEFA6WR Mobile Computer

Part Details: MC9090-K, Brick, 802.11a/b/g, Imager, Color, 64/128MB, 53 key, Windows Mobile 5.0.0, Audio/Voice/Bluetooth

Need a different version of the Symbol MC9090-K Mobile Computer? View all 14 configurations

Additional Information

Display Resolution	240 x 320
IP Rating	IP64
Interface Options	Bluetooth, Wi-Fi.
Keypad	53 Keys
Manufacturer AIDC	Symbol
Model Name	MC9090-K
Operating System	Windows CE 5.0, Windows Mobile
Operating Temperature	-4 F - 122 F (-20 C - 50 C)
Processor	Marvell PXA255 (400 MHz)
RAM Memory	64 MB
Scanner Capability	2D
Scanner Type	Imager
Style	Full-size

Symbol MC9090-K Specs (pdf)

Technical Information

Scanner Range: Standard Range
Connectivity Technology: Wireless
Image Sensor: Imager
Electrostatic Discharge (ESD):
- +/-15 kV DC Air Discharge
- +/-8 kV DC Direct Discharge
- +/-8 kV DC Indirect Discharge
Drop Specification: 72" To Concrete @ -4°F (-20°C) to 122°F (50°C)
Barcode Symbology Supported:
- Australian 4-State
- Canadian 4 State
- Codabar
- Code 11
- Code 39
- Code 93
- Code 128
- CompositeAB
- Composite C
- Coupon Code
- DataMatrix
- Discrete 2 of 5
- Dutch Kix
- EAN-8
- EAN-13
- Interleaved 2 of 5
- Japanese 4-State
- Macro Micro PDF-417
- Macro PDF-417
- Micro PDF-417
- MaxiCode
- MSI
- PDF 417
- QR Code
- RSS-Expanded
- RSS-Limited
- RSS-14
- TLC39
- Trioptic Code 39
- UK 4-State
- UPC/EAN Supplementals
- UPC-A
- UPC-E
- U.S. Planet
- U.S. Postnet
- Webcodes

General Information

Product Type: Handheld Terminal
Brand Name: Motorola
Manufacturer: Motorola, Inc
Product Model: MC9090-K
Product Name: MC9090-K Mobile Computer

Physical Characteristics

Height: 2.2"
Width: 3.6"
Length: 9.1"

Other

Green Compliant: Yes
Green Compliance Certificate/Authority: RoHS
Package Contents:
- MC9090-K Mobile Computer
- Battery
- Hand Strap
- Stylus
- BT Explorer
- Regulatory Guide
- Quick Start Guide
- MC9090-K Mobile Computer
- Battery
- Hand Strap
- Stylus
- BT Explorer
- Regulatory Guide
- Quick Start Guide
Certifications & Standards:
- Electrical Safety:
- Certified to UL60950-1
- CSA C22.2 No. 60950-1
- EN60950-1
- IEC 60950-1
- EMI/RFI:
- FCC Part 2 (SAR)
- FCC Part 15
- RSS210 B
- EN 300 328
- EN 301 489-1
- EN 489-17
Additional Information:
- Communication Options: Audio
- Region: Worldwide
- Voice Communication:
- Voice-over-IP Ready (P2P, PBX, PPT)
- Wi-Fi Certified

Network & Communication

Bluetooth: Yes
Wireless LAN: Yes
Antenna Form Factor: Internal
Wireless LAN Standard: IEEE 802.11a/b/g
Wireless Security:
- AES
- LEAP
- PEAP (MS-CHAP v2)
- PEAP-TLS
- TKIP
- TLS
- TTLS (CHAP)
- TTLS (MS-CHAP)
- TTLS (MS-CHAP v2)
- TTLS-MD5
- TTLS-PAP
- WEP 40 bit
- WEP 128 bit

Display & Graphics

Screen Mode: QVGA
Screen Size: 3.8"
Display Color: Color
Screen Resolution: 320 x 240

Memory

Flash Memory: 128 MB
Standard Memory: 64 MB
Memory Card Slot: Yes
Memory Card Supported: Secure Digital (SD) Card

Battery Information

Battery Capacity: 2200 mAh
Battery Included: Yes
Battery Chemistry: Lithium Ion (Li-Ion)

Processor & Chipset

Processor Manufacturer: Intel
Processor Speed: 624 MHz
Processor Type: XScale

Keyboard/Keypad

Keyboard Type: Alphanumeric
Number of Keys: 53

Touchscreen Information

Touchscreen: Yes

Software

Operating System: Windows Mobile 5.0 Premium Edition

Warranty

Limited Warranty: 1 Year

I/O Expansions

Expansion Slot Type: SDIO

Extended Details

Symbol MC9090-KK0HJEFA6WR Mobile Computer Part #: MC9090-KK0HJEFA6WR | SKU: SYM29489
