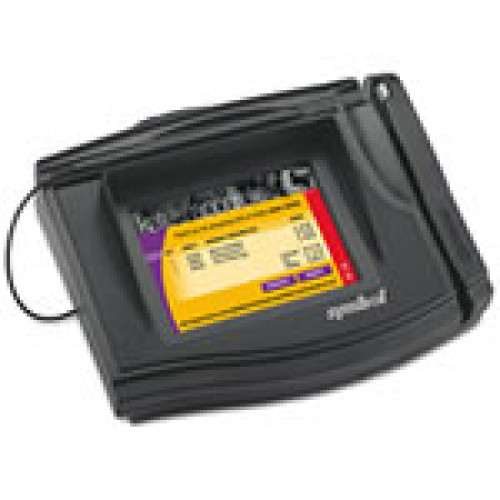

Symbol PD8500 Payment Terminal Part # PD8500-CA0DDPUC220

The Symbol PD8500 offers a standards-based operating system and a bundled payment application for ease of deployment and maintenance. Its color display and pressure-sensitive touch-screen engage users with intuitive messages, prompts and attractive promotions to reinforce brand messages at the point of sale.

PD8500-CA0DDPUC220 - Symbol PD8500 Payment Terminal

Part Details: Payment Device (PED B, 2 x 4, G2)

Additional Information

Manufacturer Symbol
Model Name PD8500
Product Condition New

Technical Information

  • Processor: 32-bit
  • Display: 5.7" Color QVGA - 320 x 240 - Touch Screen LCD
  • Signature Capture: Yes
  • Pin Pad: Yes
  • RAM Memory: 64MB
  • Flash Memory: 16MB
  • Security:
    • DES PIN Encryption
    • Triple DES PIN Encryption
    • Master/Session Support
    • DUKPT Support
  • Interfaces/Ports:
    • RS-232
    • Power USB
  • Input Voltage: 12 V DC - Regulated
  • Input Voltage Range: 115 to 230 V AC
  • Network Connectivity: Ethernet Card

General Information

  • Manufacturer: Symbol
  • Product Name: PD8500 Payment Terminal

Physical Characteristics

  • Dimensions: 2.88" (73mm) x 7.25" (184mm) x 9" (229mm)
  • Weight: 1.07 kg (2.36 lb)

Included Features

  • Included Features: Magnetic Stripe Reader


  • Additional Information:
    • Firmware: Microsoft Windows CE .NET 4.2
    • Magnetic Stripe Reader: Bi-directional 3 Track Reader
    • Touch Pad Resolution: 207 H x 286 V dpi
    • PCMCIA Type II Adapter
    • Onboard 10-Base T Ethernet TCP/IT

Agency Approvals

  • Agency Approvals:
    • CE
    • UL
    • FCC Class B
    • CISPR B


  • Manufacturer Warranty: 1 Year(s)
