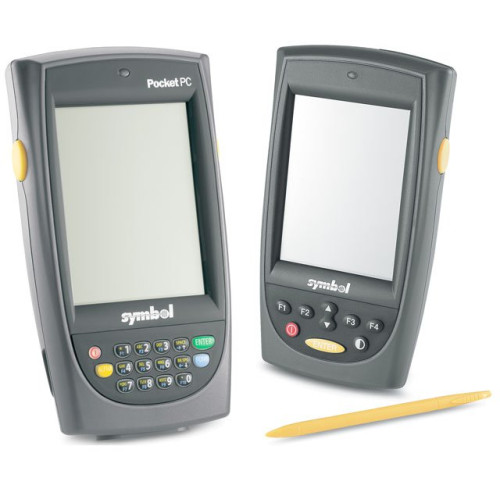

Symbol PPT8846-R3BZ10WW Mobile Computer
Part #: PPT8846-R3BZ10WW | SKU: SYM8758

The PPT 8800 with Windows Mobile 2003 software for Pocket PCs from Symbol Technologies delivers real-time information right into the hands of your mobile workforce with superior data collection, wireless communications and processing power plus the new Microsoft operating system.----Its consumer-grade PDA styling, compact size and versatility makes the PPT 8800 with Windows Mobile 2003 software for Pocket PCs the ideal mobile computer for a variety of applications from field sales, service and delivery to public safety and more.

Symbol PPT8846-R3BZ10WW Mobile Computer

Part Details: PPT 8846 Wireless PDA with Windows Mobile 2003 Software (Spectrum24 11 Mbps, SE 800 HP Proton scan engine with linear RSS Support, 320 x 240 3.5 inch 1-4 VGA Color, 64MB RAM, 64MB ROM, 15 key Alpha Function Numeric Keypad and WorldWide)

Need a different version of the Symbol PPT 8846 Mobile Computer? View all 10 configurations

Additional Information

Display Resolution	240 x 320
IP Rating	IP54
Manufacturer	Symbol
Model Name	PPT 8846
Operating System	Windows Mobile, Windows Mobile 2003
RAM Memory	64 MB
Scanner Type	Laser
Style	Phone-size

Symbol PPT 8846 Specs (pdf)

Technical Information

Operating System: Windows Mobile 2003
Processor: Intel XScale 400MHz
Data Collection Type: Wireless
Wireless Security:
- WEP 40
- WEP 128 bit
- Keyguard - (SBL TKIP)
- Kerberos
- LEAP
- PEAP
- WPA Enterprise (EAP Authenticated)
- WPA Home (PSK)
- Airbeam Safe (VPN)
- WEP 40 bit
Scanner Type: Laser Standard Range
Symbologies Supported:
- UPC/EAN/JAN
- Code 39
- Code 93
- Code 128
- Interleaved 2 of 5
- Discrete 2 of 5
- Codabar (NW7)
- UCC/EAN 128
- RSS

General Information

Manufacturer: Symbol
Product Line: Portable Pen Terminal (PPT)
Product Name:
- PPT 8846 Handheld Terminal
- PPT8846 Portable Pen Terminal

Physical Characteristics

Display: 3.5" Color QVGA - Touch Screen TFT LCD
Display Resolution: 320 x 240
User Accessible Expansion Slot: CF Card Type 2
Keyboard: 15 Key Alpha Function Numeric Integrated
Battery Capacity: 1700 mAh
Battery Type: Lithium Ion - Included
Dimensions: 1.28" (33mm) x 3.22" (82mm) x 5.75" (146mm)
Weight: 11.1 oz - with battery

Agency Approvals

Agency Approvals:
- Certified to UL1950
- CSA C22.2 No. 950
- EN60950/IEC950
- FCC Part 15 Class B
- ICES-003 Class B
- European Union EMC Directive
- Australian SMA
- CDRH Class II
- IEC Class 2

Environmental Conditions

Environmental Sealing: IP54
Temperature:
- -10Â°C (14Â°F) to 50Â°C (122Â°F) Operating
- -25Â°C (-13Â°F) to 70Â°C (158Â°F) Storage
Humidity: 5 to 90% Non-condensing
Electrostatic Discharge (ESD):
- +/-15kV Air Discharge
- +/-8kV Contact Discharge
Drop Spec: 4' To Concrete

Other

Package Contents:
- PPT 8846 Handheld Terminal
- Battery
- Handstrap
- Stylus
- Case
- Quick Reference Guide
- PPT8846 Portable Pen Terminal

Wireless Data Communications

Network Connectivity: WLAN 802.11b
Maximum RF Data Rate Supported: 11 Mbps
Output Power: 100mW
Antenna Connectors: Internal
Frequency Band/Bandwidth: 2.4GHz to 2.5GHz

Memory

RAM Memory: 64MB
Flash Memory: 64MB

Warranty

Manufacturer Warranty: 1 Year(s) Limited

Extended Details

Recommended Accessories for Model: Symbol PPT8846-R3BZ10WW Mobile Computer

Zebra 23844-00-00R Power Device
Part #: 23844-00-00R | SKU: ZEB26223

US AC Line Cord - 7.5' Length - Compatible with power supplies (Part# KT-14000-148R), (Part# 50-14000-241R), and (Part# PWRS-14000-148R)

MSRP: $17.09 Price: $14.81

In Stock
Zebra 11-43912-03R Stylus
Part #: 11-43912-03R | SKU: ZEB26180

Stylus (Tethered, 3 Pack) for the 18/28/88XX

$28.01

See Price in Cart (Why?)

In Stock
Zebra 50-16000-182R Power Device
Part #: 50-16000-182R | SKU: ZEB21798

Line Cord - 6' Ungrounded - Compatible with 2-wire, ungrounded power supplies

$7.85

See Price in Cart (Why?)

In Stock
Symbol PPT88XX-SERIAL-STARTER Accessory
Part #: PPT88XX-SERIAL-STARTER | SKU: SYM21574

PPT8800 Serial Starter Kit. Includes everything you need to run your PPT8800: charging/communications cradle, serial cable, US power supply and AC line cord. For use with units using standard 1700 mAh batteries only.
Symbol PPT88XX-SERIAL-LCB-STARTER Accessory
Part #: PPT88XX-SERIAL-LCB-STARTER | SKU: SYM21575

PPT8800 Serial Starter Kit - Large Capacity Battery. Includes everything you need to run your PPT8800: charging/communications cradle, serial cable, US power supply and AC line cord. For use with units using either 1700 mAh or 3400Ah batteries and/or trigger handle.
