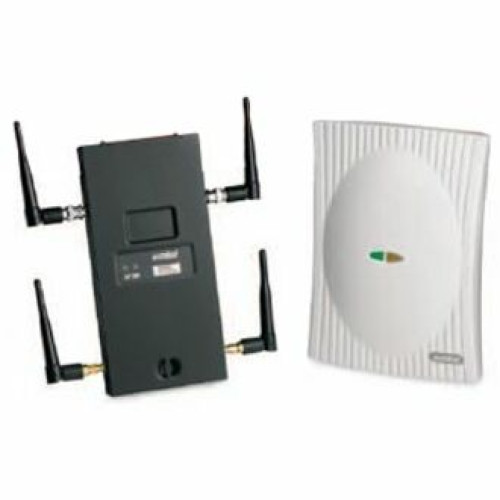

Symbol WSAP-5110-100-WWR Wireless Access Points
Part #: WSAP-5110-100-WWR | SKU: SYM29561

Access Ports are a key component of Symbol Technologies' award winning Wireless Switch System, the second-generation wireless LAN architecture that does more, yet costs less. Working in conjunction with Symbol's Wireless Switch 5000 and Wireless Switch 2000, the AP 300 Access Port delivers robust and feature rich IEEE 802.11a/b/g connectivity. Access Ports substantially reduce the cost of deploying, implementing and managing a wireless LAN, while significantly increasing features, functionality and security of the wireless LAN infrastructure.

Symbol WSAP-5110-100-WWR Wireless Access Points

Part Details: AP300 Access Port (802.11a-g with Integrated Antennas)

Need a different version of the Symbol AP 300 Wireless Access Points? View all 14 configurations

Additional Information

Manufacturer	Symbol
Model Name	AP 300

Symbol AP 300 Specs (pdf)

Technical Information

Wireless LAN Standard: IEEE 802.11a/b/g
ISM Band: Yes
UNII Band: Yes
ISM Minimum Frequency: 2.41 GHz
UNII Minimum Frequency: 5.15 GHz
Antenna Type: Dual Diversity Antenna
Wireless Transmission Speed: 54 Mbps
ISM Maximum Frequency: 2.47 GHz
UNII Maximum Frequency: 5.73 GHz
Wireless Security:
- Basic Service Set Identifier (BSSID)
- Extended Service Set ID (ESSID)
- 802.1x-EAP
- TKIP
- AES

General Information

Product Type: Wireless Access Point
Product Series: AP300
Brand Name: Motorola
Manufacturer: Motorola, Inc
Product Name: AP300 Wireless Access Point
Packaged Quantity: 1

Physical Characteristics

Height: 2"
Depth: 9.5"
Form Factor:
- Wall Mountable
- Ceiling Mountable
Weight (Approximate): 1 lb

Interfaces/Ports

Fast Ethernet Port: Yes
Number of Network (RJ-45) Ports: 1

Other

Additional Information:
- Wireless medium: Direct Sequence Spread Spectrum (DSSS) and Orthogonal Frequency Division Multiplexing (OFDM)
- 2 LED indicators with multiple modes indicating 802.11a/802.11g Activity, Power, Adoption and Errors
- Load Balancing
- Pre-Emptive Roaming
- Rate Scaling
- Antenna Gain:
- 0.0 dBi: 2.4 GHz
- 3 dBi: 5.2 GHz
- Frequency Range:
- IEEE 802.11g:
- 2.412 GHz to 2.462 GHz
- IEEE 802.11a:
- 5.150 GHz to 5.250 GHz (UNII -1)
- 5.250 GHz to 5.350 GHz (UNII -2)
- 5.725 GHz to 5.825 GHz (UNII -3)
