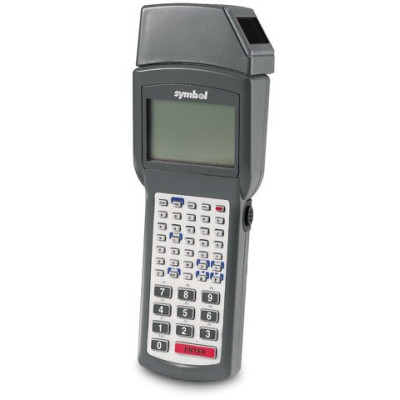

Symbol PDT 3146 Handheld Mobile Computer

Symbol PDT 3146 Handheld Mobile Computer

The PDT 3146 gives the user a wireless connection to data any time, anywhere. Right- or left-handed single hand operation is easy with the PDT 3146's side-mount alpha shift button. Also included is an RJ-type limited RS232 and DE-9 ports. A laser reader module is optional.
Call For Price
See all options

Industry Leading Data Terminal with New Enhancements

The PDT 3146 from Symbol Technologies is the bar code data capture industry's most popular portable data terminal with a proven history of performance and reliability second to none. A wide variety of flexible options – including a choice of displays, keypads, bar code scanning and communications – enable the PDT 3146 to be customized to best fit the needs of your application. Users can select from 4- or 8-line by 20 character displays, 35- or 46-key alphanumeric keypads, optional integrated 1-D scanning, and either batch or wireless communications via Symbol's Spectrum24® wireless LAN technology. An improved display is sharper and easier to read, even in bright light. And a new and improved scan engine delivers robust scanning performance.

High Performance First-Time Every-Time Scanning

The PDT 3146 Series offers outstanding scanning for the most demanding environments. The SE1200 HP scan engine delivers faster scanning with the ability to easily read bar codes through plastic and other protective coatings, poor quality bar codes, and reflective and low-contrast symbols as well. In addition, the flexible scan head can rotate, enabling left- or right-handed scanning.

Ideal for Data-Intensive Applications

The PDT 3146 Series is ideal for data-intensive applications in a wide range of industries including retail, where portable data terminals bring increased efficiency and accuracy to shelf price audits, price checking, order entry, inventory control, shipping, picking and receiving. In transportation and logistics environments, the PDT 3146 enables more efficient package/baggage tracking, picking and receiving, and cross-dock applications.

Proven Past, Unlimited Future

One of the industry's most proven and robust portable data terminals, the PDT 3146 Series offers flexible options to meet your needs today and in the future, with performance and reliability you can count on. It's another example of strategic thinking from Symbol, the worldwide leader in bar code-driven data management systems. To find out how terminals in the PDT 3146 Series can work for you, call any of our convenient locations or visit us at www.symbol.com/mobile.

PDT 3146 Feature

PDT 3146 Benefit

DOS operating system

Standard 16-bit DR-DOS software environment for easy development

Improved display

Sharp, easy to read – even in bright light

Rotating scan head

Allows convenient left- or right-handed data capture

Side-mounted alpha laser key

Users may select left- or right/trigger for optimal comfort and maximum productivity

Comfortable grip

Maximum user comfort, even over extended periods of use

Integrated Symbol scan engine

High-performance data capture minimizes input error

Durable design and construction

Stands up to rough handling–including 4-ft./1.2 m drops to concrete

High-capacity NiMH battery pack

Full-shift battery life keeps employees productive

Full range of options

Choose modem, memory and communications technology according to your specific needs

PDT 3146 Specification Highlights

PDT 3146 Physical Characteristics:


4-line or 8-line display with 1D scanning: 1.9 in. D x 3 in. W x 9.38 in. H/48 mm D x 76 mm W x 238 mm H


15.5 oz./440 gm to 16.9 oz./480 gm; includes battery and laser module


4-line or 8-line by 20 characters, supertwist FSTN Film Super Twist Neumatic (LCD, backlight, reverse video, double-high and double-wide characters)


9-volt alkaline battery; high-capacity NiMH battery pack


21-key hard key cap; 35-key, or 46-key conductive rubber; side alpha-shift key and scan trigger

PDT 3146 User Environment


15KV electrostatic discharge to all surfaces without loss of data


0% to 95% non-condensing at 122°F/50°C


Unit functions normally after 4-ft./1.2 m drop to concrete

Operating Temperature:

32° to 104°F/0° to 40°C

Storage Temperature:

-4° to 140°F/-20° to 60°C

Performance Characteristics


80c88 type (8 MHz/V25)

Operating System:

Standard 16-bit DR-DOS software

RAM Memory:

Up to 7.6 MB for data and/or program storage


System EPROM 128 KB (DOS, BIOS, and terminal diagnostics)

Non-Volatile Memory:

256KB for program storage in a protected area

Real-Time Clock:

Time and date stamping under software control


RJ-41: for cradle, cable or printer interface

Batch Communications


Limited RS-232-C communications capable of transmission speeds from 150 bps to 38.4 Kbps (software optional)

Wireless Communications

Wireless Local Area Network:

Optimal IEEE standards-based on Spectrum 24® 802.11 or 802.11b

Data Rate:

2 Mbps (frequency hopping) and 11 Mbps (direct sequence)

Frequency Range:

2.4 to 2.5 GHz (varies by country)

Output Power:

100, 250, 500 mW (approximately; varies by country)


Internal, diversity

Spreading Code:

Multiple, software controlled


Optional Laser Module:

Scanning module rotates 180° for right or left-handed operation; supports one-dimensional bar codes only; standard and long-range models

Communications/Charging Adapter:

Provides trickle charging of NiMH batteries and provides full RS-232-C voltages and signals

Single-Slot Cradle:

Full RS-232-C, 25 pin connector, optional internal modem; Rapid charging: 90 min. NiCd, 120 min. NiMH

Four-Slot Cradle:

Equivalent to single-slot functionally without the modem option

PDT 3146 Regulatory:


FCC Part 15 in U.S. only, ETSI 300.328 in Europe, RCD STD-33 in Japan

Extended Details
Refine Your Options
  1. Symbol PDT 3146 Handheld Mobile Computer
    Part #: PDT3146-D08642US | SKU: SYM5528

    PDT 3146, 640KB RAM, 802.11b, 46 keys, 8 line display. Includes DE-9 port. Order cradle, cables, batteries & power supply separately. See accessories.
  2. Symbol PDT 3146 Handheld Mobile Computer
    Part #: PDT3146-SE8630US | SKU: SYM5529

    Portable Data Terminal Kit (11 Mbps, 8-Line x 20 Character Display, 640K, 35 key Keyboard and SE12-HP Scanner)
  3. Symbol PDT 3146 Handheld Mobile Computer
    Part #: PDT3146-SE8640US | SKU: SYM5530

    Portable Data Terminal Kit (11 Mbps, 8-Line x 20 Character Display, 640K, 46 key Keyboard and SE12-HP Scanner)

3 Item(s)

Recommended Accessories for Model: Symbol PDT 3146 Handheld Mobile Computer

  • Motorola Power Supply
    Part #: 50-16000-182R | SKU: MOT21798

    Line Cord - 6' Ungrounded - Compatible with 2-wire, ungrounded power supplies
    Price: $13.22
    In Stock
  • Motorola Cable
    Part #: 23844-00-00R | SKU: MOT26223

    US AC Line Cord - 7.5' Length - Compatible with power supplies (Part# KT-14000-148R), (Part# 50-14000-241R), and (Part# PWRS-14000-148R)
    Price: $16.99
    In Stock
  • Global Technology Systems Battery
    Part #: H3100-M | SKU: GLO26963

    Replacement Battery - 750 mAh - 6V - NiMH - Compatible with PDT3100 - Comparable to OEM Part Numbers (Part # 21-36897-02), (Part # KT-12596-01), (Part # KT-12596-03), (Part # KT-12596-04), (Part # 50-14000-051), (Part # 50-14000-020)
    MSRP: $30.00 Price: $26.28
    In Stock
  • Symbol Battery
    Part #: KT-12596-04R | SKU: SYM26340

    Battery Pack (600MAH, NIMH, Rechargeable) for the PDT3100
